Autonics SRPH1-A460 - Single-Phase Solid State Relay (Analog Input Type)

Name: Autonics SRPH1-A460 - Single-Phase Solid State Relay (Analog Input Type)
Brand: Autonics
SKU: AutonicsSRPH1-A460
Price: 165.95 USD
Availability: InStock

0 reviews | Model: Autonics SRPH1-A460

Autonics SRPH1 Series Solid Phase Analog Input Type SSR

Compare

SSR, Analog Input, Single phase, Input 4-20mA, Load 200-480VAC, 60A

Phase control and cycle control possible with 4-20 mA analog input
- Phase control (output power control / phase angle control)
- Cycle control (fixed cycle / variable cycle)
DIN rail mount or panel mount installation
Rated input voltage: 4-20 mA (analog input)
Rated load voltage: 100-240 VAC, 200-480 VAC
Rated load current (resistive load): 20 A, 30 A, 60 A
Dielectric strength: 4000 VAC
High heat dissipation efficiency with ceramic PCB and Integrated heat sink
Zero cross turn-on, random turn-on models available
Input Indicator (green LED)

View Product Details

List Price: $165.95

In Stock:

View Payment Options

Recommended for you

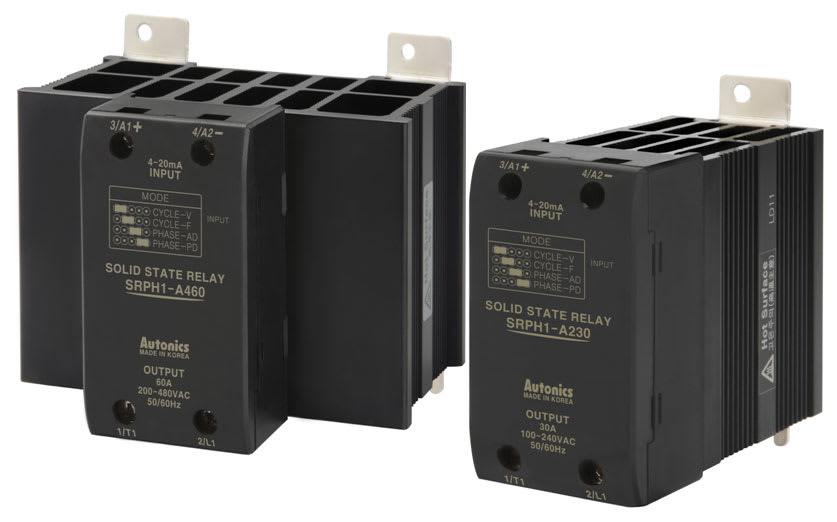

Autonics SRPH1-A460 - Single-Phase Solid State Relay (Analog Input Type)

SRPH1 Series

DIN rail mount or panel mount installation
Rated input voltage: 4-20 mA (analog input)
Rated load voltage: 100-240 VAC, 200-480 VAC
Rated load current (resistive load): 20 A, 30 A, 60 A
Dielectric strength: 4000 VAC

The SRPH1 series analog input type single phase solid state relays have been changed/replaced by SRH1 series current input type single phase solid state relays.

The single phase solid state relays SRPH1 series allow phase control or cycle control with 4-20 mA analog input and feature detachable heatsinks for easy maintenance or replacement. The high dielectric strength of 4000 VAC provides durable and reliable performance in various applications, including heater loads, semiconductor equipment, and motor control.

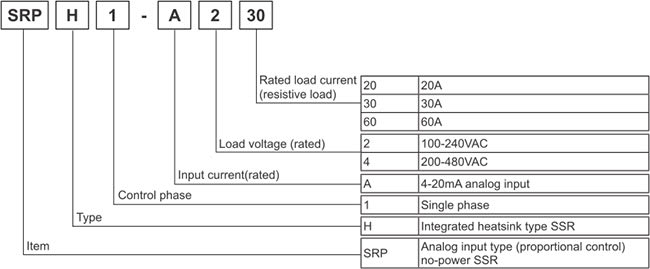

Ordering Information:

Input
4-20mA analog input
Max. allowable input current	50mA
Pick-up current	4.2mA
Static off current	0.2mA
Power factor	Min. 0.9 (max. 25° of difference between voltage phase and current phase)
Input LED	Green
Start-up time	60Hz: 200ms, 50Hz: 250ms
Operation time	60Hz: 16.6ms, 50Hz:20ms
Operation mode*1	Cycle control (fixed cycle, variable cycle) Phase control (phase equality division type, power equality division type)

Output
100-240VAC load voltage
Load voltage range (50/60Hz)	90-264VACrms
Rated load current Ta	25℃
Resistive load (AC-51)	20Arms	30Arms	60Arms
Min. load current	0.5Arms
Max. 1 cycle surge current (60Hz)	300A	500A	1000A
Max. non-repetitive surge current (I²t, t=8.3ms)	350A²S	1000A²S	4000A²S
Peak voltage (Non-repetitive)	600V
Leakage current (240VAC/60Hz, Ta=25℃)	Max. 10mArms
Output ON voltage drop[Vpk] (max. load current)	Max. 1.6V
Static off state dv/dt	500V/μs
200-480VAC load voltage
Load voltage range (50/60Hz)	200-528VACrms
Rated load current Ta	25℃
Resistive load (AC-51)	20Arms	30Arms	60Arms
Motor load (AC-53a)	5Arms	8Arms	15Arms
Min. load current	0.5Arms
Max. 1 cycle surge current (60Hz)	300A	500A	1000A
Max. non-repetitive surge current (I²t, t=8.3ms)	350A²S	1000A²S	4000A²S
Peak voltage (non-repetitive)	1000V
Leakage current (480VAC/60Hz, Ta=25℃)	Max. 10mArms
Output ON voltage drop [Vpk] (Max. load current)	Max. 1.6V
Static off state dv/dt	500V/μs

General Specifications
Certification	UL508, CSA22.2 No.14, IEC/EN 60947-4-3
Phase control (phase equality division type)	5 to 99%
Phase control (power equality division type)	10 to 99%
Frequency reading function	Yes
Dielectric strength (Vrms)	4000VAC 50/60Hz for 1min. (Input-Output, Input/Output-Case)
Insulation resistance	Min. 100MΩ (at 500VDC megger)
Vibration	10 to 55Hz double amplitude 0.75mm in each X, Y, Z direction for 1 hour
Environment
Ambient temperature	-20 to 70℃, storage : -20 to 100℃ (The rated load current capacity is different depending on ambient temperature).
Ambient humidity	45 to 85%RH
Input terminal connection	Min. 1×0.5mm² (1×AWG20) Max. 1×1.5mm² (1×AWG6) or Max. 2×1.5mm² (2×AWG16)
Output terminal connection	Min. 1×1.5mm² (1×AWG16) Max.1×16mm² (1×AWG6) or Max. 2×6mm² (2×AWG10)
Input terminal fixed torque	0.75 to 00.95N•m
Output terminal fixed torque	1.6 to 2.2N•m
Unit weight	•SRPH1-A220, SRPH1-A230, SRPH1-A420, SRPH1-A430 : Approx. 410g •SRPH1-A260, SRPH1-A460 : Approx. 680g
