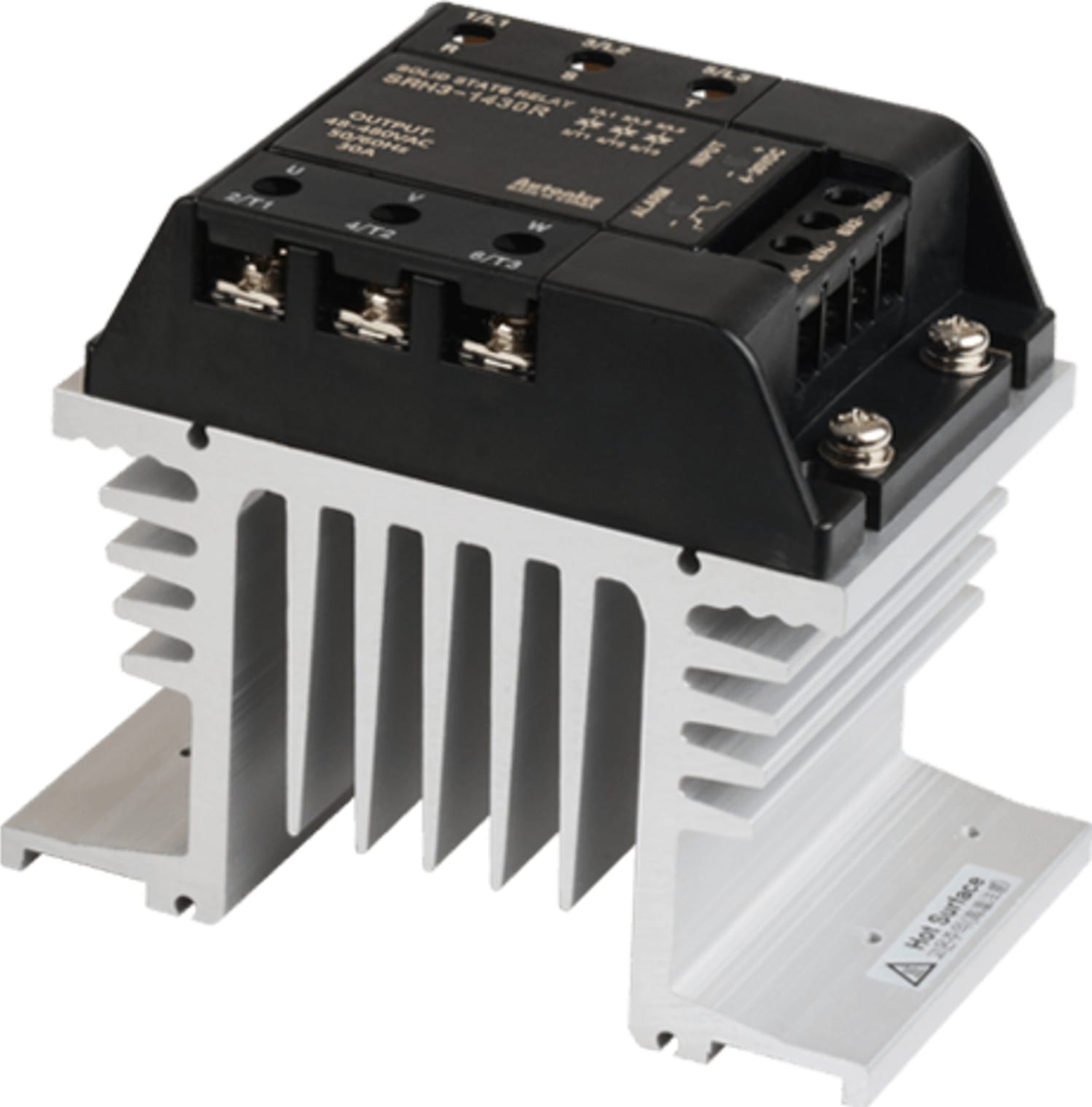

Autonics SRH3-1430R - Three-Phase Solid State Relays

Name: Autonics SRH3-1430R - Three-Phase Solid State Relays
Brand: Autonics
SKU: AutonicsSRH3-1430R
Price: 163.00 USD
Availability: InStock

0 reviews | Model: Autonics SRH3-1430R

Compare

SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48-480VAC, 30A, Random Turn-On

Rated input voltage : 4-30VDC
Rated load voltage : 48-480VAC~
Dielectric strength : 2,500VAC~
Control phase : 3-phase
Heatsink : Heatsink
Mounting type : Panel, DIN rail

View Product Details

Your Price: $163.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics SRH3-1430R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-1430 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-4430 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-4440 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-1230 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24- ...	Autonics SRH2-1415 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-1415R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-2415 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-4215 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4415 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-1415 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1415R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH3-2415 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH3-4215 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4415 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-1450 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-2450 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-4230 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4250 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4450 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-4475 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-1275 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24- ...	Autonics SRH3-1475R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH3-4275 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4475 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-1440 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1430 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1440R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH3-1475 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1450 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-2430 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH3-2450 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH3-4230 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4250 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4430 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-4450 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-1475 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-2430 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-1275 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24- ...	Autonics SRH2-1430R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-1440 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-1440R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-1450R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-1475R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-2440 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-2475 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-4275 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4440 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-2475 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics SRH3-1430R - Three-Phase Solid State Relays

Rated input voltage : 4-30VDC
Rated load voltage : 48-480VAC~
Dielectric strength : 2,500VAC~
Control phase : 3-phase
Heatsink : Heatsink
Mounting type : Panel, DIN rail

The SRH2/3 series three-phase solid state relays are integrated heatsink types, which are removable. The solid-state relays can control 2-phase or 3-phase loads and feature two mounting hole types for compatibility with various types of heatsinks. The series also features alarm output for safe operation and is also available in 24 VAC low voltage models. Select models feature high dielectric strength of up to 4000 VAC and integrated heatsink models can be mounted on to both DIN rails and panels.

Autonics SRH3-1430R Specifications
Control Phase	3-phase
Heatsink	Heatsink
Mounting Type	Panel, DIN rail
Rated Input Voltage	4-30VDC
Rated Load Voltage	48-480VAC~
Dielectric Strength	2,500VAC~
Rated Load Current	30A
Function	Random turn-on
Environment Ambient Temperature	30 to 80℃ (in case of the rated input voltage 90-240VAC~: -30 to 70℃), Storage: -30 to 100℃ (The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.)
Environment Ambient Humidity	45 to 85% RH, storage: 45 to 85% RH
Weight	Approx. 896g (approx. 686g)
