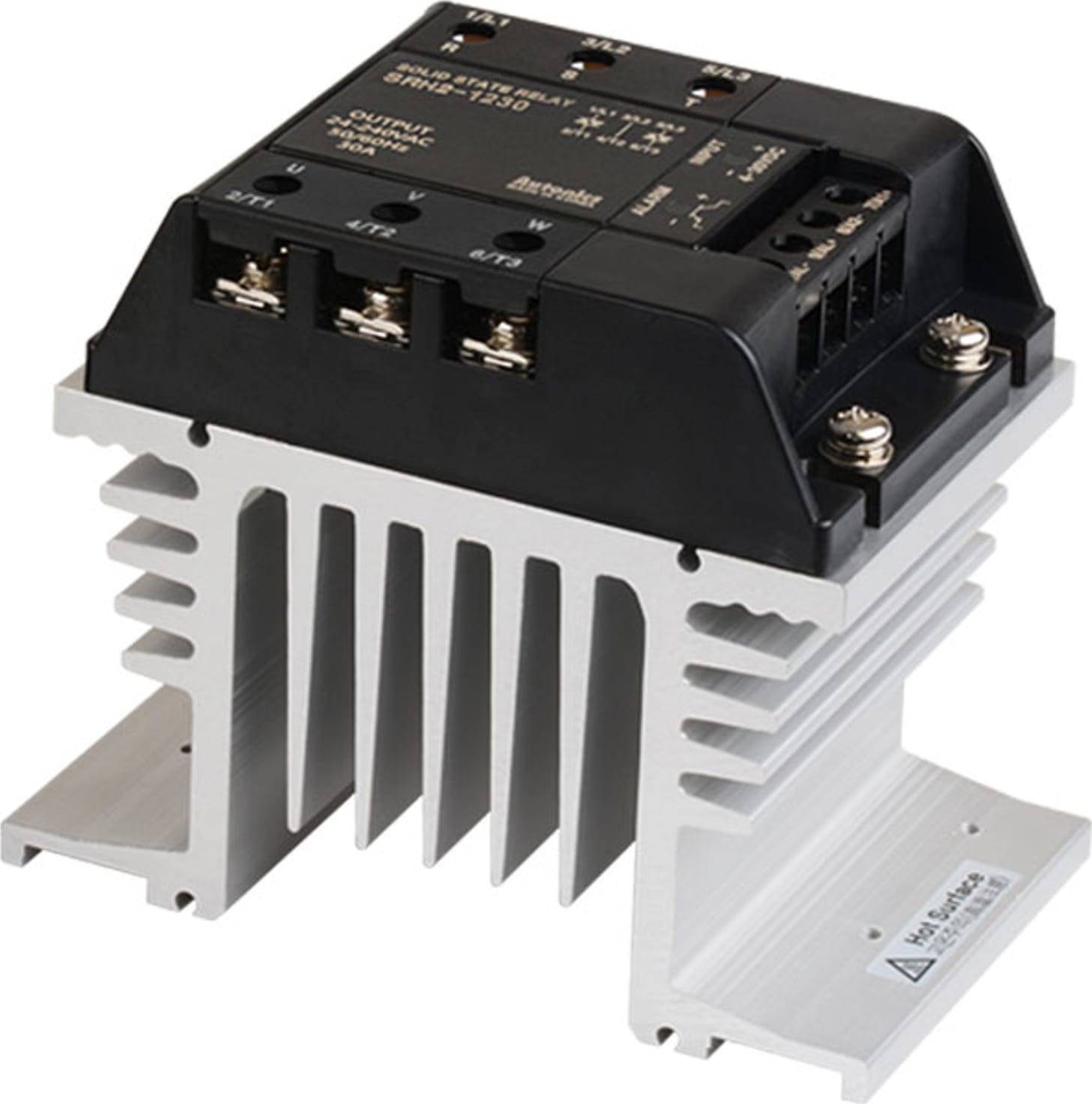

Autonics SRH2-1230 Solid State Relay, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24-240VAC, 30A, Zero Cross Turn-On

Name: Autonics SRH2-1230 Solid State Relay, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24-240VAC, 30A, Zero Cross Turn-On
Brand: Autonics
SKU: AutonicsSRH2-1230
Price: 115.00 USD
Availability: InStock

0 reviews | Model: Autonics SRH2-1230

Compare

SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24-240VAC, 30A, Zero Cross Turn-On

SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24-240VAC, 30A, Zero Cross Turn-On
Control phase: 2-Phase
Heatsink: Heatsink
Mounting type: Panel, DIN rail

View Product Details

Your Price: $115.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics SRH2-1230 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24- ...	Autonics SRH2-1430 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-4430 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-4440 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-1415 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-1415R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-2415 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-4215 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4415 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-1415 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1415R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH3-2415 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH3-4215 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4415 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-1450 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-2450 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-4230 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4250 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4450 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-4475 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-1275 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24- ...	Autonics SRH3-1475R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH3-4275 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4475 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-1440 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1430 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1440R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH3-1475 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1450 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-2430 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH3-2450 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH3-4230 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4250 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH3-4430 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-4450 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH2-1475 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-2430 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-1275 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24- ...	Autonics SRH2-1430R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-1440 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH2-1440R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-1450R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-1475R SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH2-2440 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-2475 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 24VAC, Load 48-48 ...	Autonics SRH2-4275 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 2 ...	Autonics SRH2-4440 SSR, Integrated Heatsink Type, 3-Phase(2-Pole), Input 90-240VAC, Load 4 ...	Autonics SRH3-1430R SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48 ...	Autonics SRH3-2475 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-48 ...
Price
In Stock	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	11	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	5	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	4	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	25	Available to Order Check Lead Time	48	Available to Order Check Lead Time	57	1 Left!	Available to Order Check Lead Time	4	Available to Order Check Lead Time	14	55	14	Available to Order Check Lead Time	2	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	Available to Order Check Lead Time	2	12
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics SRH2/SRH3 Series Solid State Relay

SRH2-1230 Solid State Relay, Integrated Heatsink Type, 3-Phase(2-Pole), Input 4-30VDC, Load 24-240VAC, 30A, Zero Cross Turn-On

The SRH2/3 series three-phase solid state relays are integrated heatsink types, which are removable. The solid state relays can control 2-phase or 3-phase loads and feature two mounting hole types for compatibility with various types of heatsinks. The series also features alarm output for safe operation, and are also available in 24 VAC low voltage models. Select models feature high dielectric strength of up to 4000 VAC and integrated heatsink models can be mounted on to both DIN rails and panels.

Ordering Information

Dimensions

•Detachable heatsink type	•Integrated heatsink (Rated load current 15A/30A/40A)

•Integrated heatsink (Rated load current 50A)

•Integrated heatsink (Rated load current 75A)

Example of Connections

3-phase (2-pole)	3-phase (3-pole) delta connection (Triangle -connection)	3-phase (3-pole) star connection (Y-connection)

※For DC signal input models, 8 and 10 terminals are connected inside.
※For AC signal input models, 8 and 10 terminals are insulated inside.

Cautions during Use

1. Follow instructions in 'Cautions during Use'. Otherwise, it may cause unexpected accidents.
2. 4-30VDC, 24VAC signal input should be insulated and limited voltage/current or Class 2, SELV power supply device.
3. Attach a heat sink or install the unit in the well ventilated place. When attaching the heat sink, use the heat sink grease.
※Heat sink grease: GE TOSHIBA(YG6111), KANTO-KASEI(FLOIL G-600), SHINETSU(G746
4. Ground to the heat sink, panel, or DIN rail. Failure to follow this instruction may result in electric shock.
5. While supplying power to the load or right after turning off the power of the load, do not touch the
body and heat sink. Failure to follow this instruction may result in a burn due to the high temperature.
6. In order to protect the product from the short-circuit current of the load, use rapid fuse of which I2t is
under the 1/2 of SSR I2t. When short-circuited, replace the fuse to those of same specification with the used rapid fuse.
7. Install dummy resistance in parallel with the load, to keep the sum of current flowing in the load and dummy resistance being over SSR minimum load current.
8. When using random turn-on model for phase control, install noise filter between the load and the power of the load.
9. Do not use near the equipment which generates strong magnetic force or high frequency noise.
10. This unit may be used in the following environments.
① Indoors (in the environment condition rated in 'Specifications')
② Altitude max. 2,000m
③ Pollution degree 2
④ Installation category III

General Specifications
Dielectric strength (Vrms)		24-240VAC~rated load current 15A/30A : 2500VAC 50/60Hz 1 min (input-output, input/output-case)
		24-240VAC~rated load current 50A/75A, 48-480VAC~ rated load current 15A/30A/40A/50A/75A : 4000VAC 50/60Hz 1 min (input-output, input/output-case)
Insulation resistance		Over 100MΩ (at 500VDC megger) (input-output, input/output-case)
Indicator		Input indicator: Green LED, alarm output indicator: Red LED
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 min
Shock	Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment	Ambient temp	-30 to 80℃ (in case of the rated input voltage 90-240VACЖ: -30 to 70℃), storage: -30 to 100℃ (The rated load current capacity is different depending on ambient temperature. Refer to ' SSR Derating Curve'.)
	Ambient humi	45 to 85%RH, storage: 45 to 85%RH
Input terminal connection, alarm output terminal connection		Min. 1×0.5mm2 (1×AWG20), max. 1×1.5mm2 (1×AWG16) or 2×1.5mm2 (2×AWG16)
Output terminal connection		Min. 1×1.5mm2 (1×AWG16), max. 1×16mm2 (1×AWG6) or 2×6mm2 (2×AWG10) ※Use wires compliant with load current capacity to connect to the terminal.
Input terminal fixed torque		0.75 to 0.95N·m
Output terminal fixed torque		1.6 to 2.2N·m
Weight※1		Detachable heatsink type: Approx. 365g (approx. 275g) Integrated heatsink type - Rated load current 15A/30A/40A : Approx. 896g (approx. 686g) - Rated load current 50A : Approx. 1508g (approx. 1268g) - Rated load current 75A: Approx. 2354g (approx. 2064g)
※1: The weight includes packaging. The weight in parenthesis is for unit only. ※Environment resistance is rated at no freezing or condensation. ※For wiring the terminal, round terminal must be used.

Input
Rated input voltage range		4-30VDC	24VACrms~(50/60Hz)	90-240VACrms~ (50/60Hz
Allowable input voltage range		4-32VDC	19-26.4VACrms~ (50/60Hz)	85-264VACrms~ (50/60Hz
Max. input current		25mA	15mA	25mA
Pick-up voltage		Min. 4VDC	Min. 19VACrms~	Min. 85VACrms~
Drop-out voltage		Max. 1VDC	Max. 4VACrms~	Max. 10VACrms~
Turn-on time	Zero cross turn-on	Max. 0.5 cycle of load source + 1ms	Max. 1.5 cycle of load source + 1ms	Max. 1.5 cycle of load source + 1ms
Turn-on time	Random turn-on	Max. 1ms	---	---
Turn-off time		Max. 0.5 cycle of load source + 1ms	Max. 1.5 cycle of load source + 1ms	Max. 1.5 cycle of load source + 1ms

Output
Rated load voltage range		24-240VACrms~(50/60Hz)				48-480VACrms~(50/60Hz)
Allowable load voltage range		24-264VACrms~(50/60Hz)				48-528VACrms~(50/60Hz)
Rated load current	Resistive load (AC-51)※1	15Arms	30Arms	50Arms	75Arms	15Arms	30Arms	40Arms	50Arms	75Arms
Min. load current		0.15Arms	0.2Arms	0.5Arms		0.5Arms
Max. 1 cycle surge current (60Hz)		250A	400A	1000A		300A	500A		1000A
Max. non-repetitive surge current (I2 t, t=8.3ms)		340A2 s	1000A2 s	4000A2 s		350A2 s	1000A2 s		4000A2 s
Peak voltage (non-repetitive)		600V				1200V (Zero cross turn-on), 1000V (Random turn-on)
Leakage current (Ta=25℃)		Max. 10mArms (240VAC~/60Hz)				Max. 10mArms (480VAC~/60Hz)
Output on voltage drop [Vpk] (max. load current)		Max. 1.6V
Static off state dv/dt		500V/㎲
※1: AC-51 is utilization category at IEC60947-4-3.
Alarm output (temperature overheat)
Rated input voltage range		4-30VDC			24VACrms~ (50/60Hz)			90-240VACrms~ (50/60Hz)
Load voltage		Max. 30VDC			Max. 30VDC			Max. 30VDC
Load current		Max. 100mA			Max. 50mA			Max. 50mA
Turn-off time		Max. 20ms			Max. 40ms			Max. 40ms

Electrical/Switches/Relay Switches Template
Type (Relay Switches)	Solid State
Maximum Voltage	240 V
Maximum Current	30 A
Test Equipment General Attributes
Safety Approval	CE
Product Weight	1.51 LBS
Country of Origin	Korea
