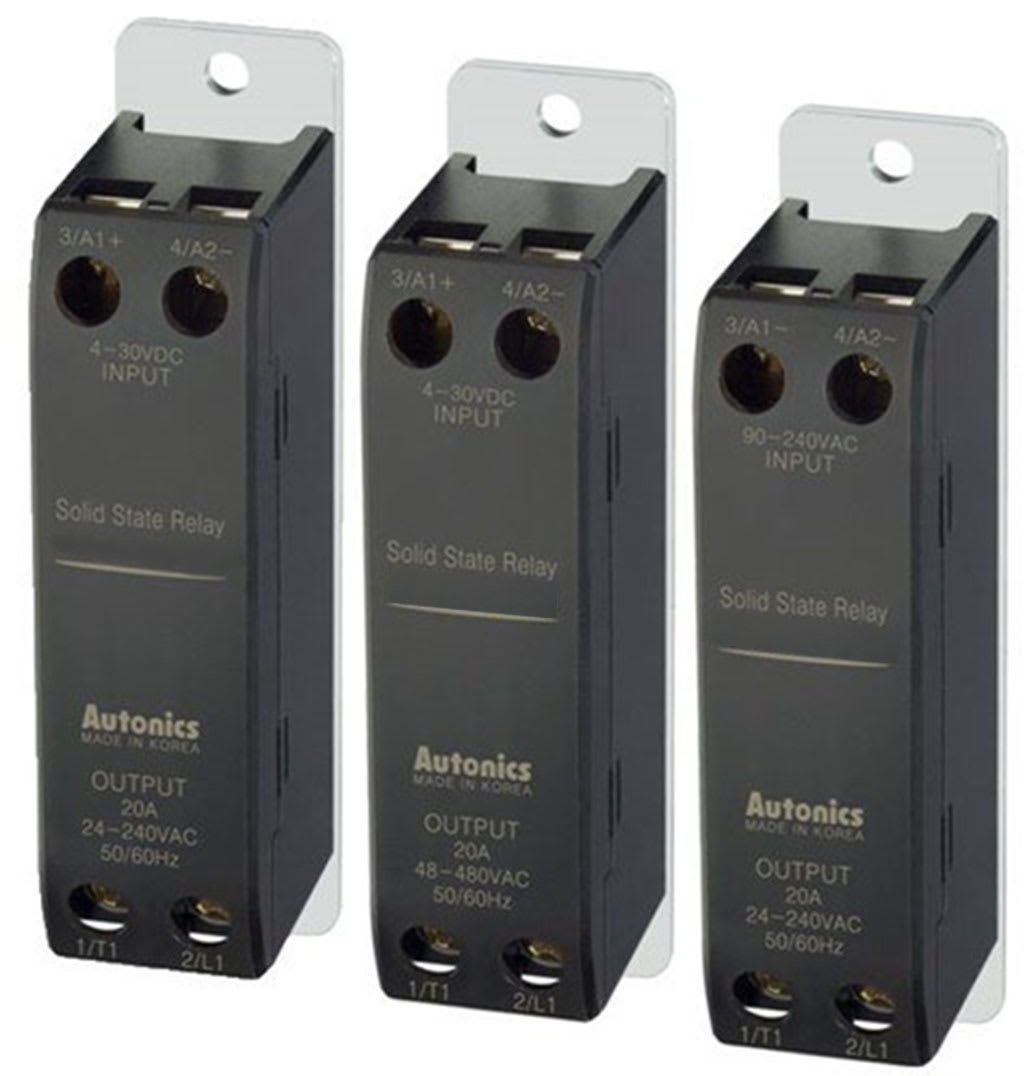

Autonics SRC1-4215-N Single-Phase, Slim Detachable Heatsink Type SSR (Input 90-240VAC, Load 24-240VAC, 15A, Zero Cross)

Name: Autonics SRC1-4215-N Single-Phase, Slim Detachable Heatsink Type SSR (Input 90-240VAC, Load 24-240VAC, 15A, Zero Cross)
Brand: Autonics
SKU: AutonicsSRC1-4215-N
Price: 32.00 USD
Availability: InStock

0 reviews | Model: Autonics SRC1-4215-N

Compare

SSR, Slim Heatsink Separated, Single phase, Input 90-240VAC, Load 24-240VAC, 15A, Zero cross

SSR, Slim Heatsink Separated, Single phase, Input 90-240VAC, Load 24-240VAC, 15A, Zero cross
Rated load voltage: 24-240 VAC, 48-480 VAC
Rated load current (resistive load): 15 A, 25 A, 30 A
Dielectric strength: 4000 VAC
Slim, compact size (22.5 mm width)
Rated input voltage: 4-30 VDC, 90-240 VAC
High heat dissipation efficiency with ceramic PCB
Zero cross turn-on, random turn-on models available
Input Indicator (green LED)

View Product Details

Your Price: $32.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics SRC1-4215-N SSR, Slim Heatsink Separated, Single phase, Input 90-240VAC, Load 24- ...	Autonics SRC1-1220-N SSR, Slim Heatsink Separated, Single phase, Input 4-30VDC, Load 24-24 ...	Autonics SRC1-1230-N SSR, Slim Heatsink Separated, Single phase, Input 4-30VDC, Load 24-24 ...	Autonics SRC1-1420-N SSR, Slim Heatsink Separated, Single phase, Input 4-30VDC, Load 48-48 ...	Autonics SRC1-1420R-N SSR, Slim Heatsink Separated, Single phase, Input 4-30VDC, Load 48-4 ...	Autonics SRC1-4220-N SSR, Slim Heatsink Separated, Single phase, Input 90-240VAC, Load 24- ...	Autonics SRC1-4230-N SSR, Slim Heatsink Separated, Single phase, Input 90-240VAC, Load 24- ...	Autonics SRC1-4420-N SSR, Slim Heatsink Separated, Single phase, Input 90-240VAC, Load 48- ...	Autonics SRC1-1215-N SSR, Slim Heatsink Separated, Single phase, Input 4-30VDC, Load 24-24 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics SRC1-4215-N - Single-Phase, Slim Detachable Heatsink Type SSR (Input 90-240VAC, Load 24-240VAC, 15A, Zero Cross)

SSR, Slim Heatsink Separated, Single phase, Input 90-240VAC, Load 24-240VAC, 15A, Zero cross
Rated load voltage: 24-240 VAC, 48-480 VAC
Rated load current (resistive load): 15 A, 25 A, 30 A
Dielectric strength: 4000 VAC

Input 90-240VAC, Load 24-240VAC, 15A, Zero cross

The single phase solid state relays SRC1 series feature slim and compact design (22.5 mm width) for flexible installation and detachable heatsinks for easier maintenance or replacement. The high dielectric strength of 4000 VAC provides durable and reliable performance in various applications, including heater loads, semiconductor equipment, and motor control.

Input
-	4-30VDC input voltage	90-240VAC input voltage
Input voltage range	4-32VDC	85-264VACrms (50/60Hz)
Max. input current	9mA (Zero cross turn-on), 13mA (Random turn-on)	7mArms (240VACrms)
Pick-up voltage	4VDC	85VACrms
Drop-out voltage	1VDC	10VACrms
Turn-on time
Zero cross turn-on	Max. 0.5 cycle of load source + 1ms	Max. 1.5 cycle of load source + 1ms
Random turn-on	Max. 1ms	--
Turn-off time	Max. 0.5 cycle of load source + 1ms	Max. 1.5 cycle of load source + 1ms

Output
-	24-240VAC load voltage			48-480VAC load voltage
Load voltage range (50/60Hz)	24-264VACrms			48-528VACrms
Rated load current Ta	25℃
Resistive load (AC-51)	15Arms	20Arms	30Arms	20Arms
Motor load (AC-53a)	--			5Arms
Min. load current	0.15Arms	0.2Arms	0.2Arms	0.5Arms
Max. 1cycle surge current (60Hz)	190A	270A	330A	300A
Max. non-repetitive surge current (I 2 t, t=8.3ms)	150A 2 S	300A 2 S	500A 2 S	350A 2 S
Peak voltage (Non-repetitive)	600V			1200V (zero cross turn-on),1000V (random turn-on)
Leakage current (240VAC/60Hz, Ta=25℃)	Max. 10mArms
Output on voltage drop[Vpk] (Max. load current)	Max. 1.6V
Static off-state dv/dt	500V/μs

General Specifications
Certification	UL508, CSA22.2 No. 14, IEC/EN 60947-4-3
Dielectric strength (Vrms)	4000VAC 50/60Hz 1min. (Input-Output, Input/Output-Case)
Insulation resistance	Min. 100MΩ (at 500VDC Megger)
Vibration	10 to 55Hz double amplitude 0.75mm in each X, Y, Z direction for 1 hour
Input LED	Green
Environment
Ambient temperature	-30 to 80℃, storage: -30 to 100℃ (Rated load current capacity is different based on the surrounding temperature).
Ambient humidity	45 to 85%RH
Input terminal connection	Min. 1×0.5mm 2 (1×AWG20), Max. 1×1.5mm 2 (1×AWG16) or 2×1.5mm 2 (2×AWG16)
Output terminal connection	Min. 1×0.75mm 2 (1×AWG18), Max. 1×4mm 2 (1×AWG12) or 2×2.5mm 2 (2×AWG14)
Input terminal fixed torque	0.75 to 0.95N•m
Output terminal fixed torque	1 to 1.35N•m
Unit weight	Approx. 85g
