Autonics SR3-1215 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24-240VAC, 15A, Zero Cross Turn-On

Name: Autonics SR3-1215 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24-240VAC, 15A, Zero Cross Turn-On
Brand: Autonics
SKU: AutonicsSR3-1215
Price: 63.00 USD
Availability: InStock

0 reviews | Model: Autonics SR3-1215

Compare

SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24-240VAC, 15A, Zero Cross Turn-On

Two mounting hole types and sizes
Alarm function (overheating) : Alarm output indicator (red LED), disconnect standard output, alarm output
High dielectric strength : 4000VAC (select models)
Rated input voltage : 4-30VDC, 24VAC, 90-240VAC
Rated load voltage : 24-240VAC, 48-480VAC
Rated load voltage : 24-240VAC, 48-480VAC
Rated load current : 15A, 30A, 40A, 50A, 75A
High heat dissipation efficiency with ceramic PCB and integrated heatsink
Zero cross turn-on and random turn-on models available
Input indicator (green LED)

View Product Details

Your Price: $63.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics SR3-1215 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24-2 ...	Autonics SR3-1250 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24-2 ...	Autonics SR3-1275 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24-2 ...	Autonics SR3-1415 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48-4 ...	Autonics SR3-1450 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48-4 ...	Autonics SR3-1475 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48-4 ...	Autonics SR3-2415 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-480 ...	Autonics SR3-2450 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-480 ...	Autonics SR3-4250 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 24 ...	Autonics SR3-4415 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 48 ...	Autonics SR3-4450 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 48 ...	Autonics SR3-1230 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24-2 ...	Autonics SR3-1430 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48-4 ...	Autonics SR3-1440 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48-4 ...	Autonics SR3-2430 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-480 ...	Autonics SR3-2440 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-480 ...	Autonics SR3-2475 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 24VAC, Load 48-480 ...	Autonics SR3-4215 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 24 ...	Autonics SR3-4230 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 24 ...	Autonics SR3-4275 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 24 ...	Autonics SR3-4430 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 48 ...	Autonics SR3-4440 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 48 ...	Autonics SR3-4475 SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 90-240VAC, Load 48 ...	Autonics SR3-1415R SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SR3-1430R SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SR3-1440R SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SR3-1450R SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SR3-1475R SSR, Detachable Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 48- ...	Autonics SRH3-1230 SSR, Integrated Heatsink Type, 3-Phase(3-Pole), Input 4-30VDC, Load 24- ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics SR3 Series Three-Phase Solid State Relays (Detachable Heatsink Type)

The SR2/3 series three-phase solid state relays are detachable heatsink types, which can be used with various heatsinks. The solid state relays can control 2-phase or 3-phase loads and feature two mounting hole types for compatibility with various types of heatsinks. The series also features alarm output for safe operation, and are also available in 24 VAC low voltage models. Select models feature high dielectric strength of up to 4000 VAC.


Two Mounting Hole Types	Alarm Output	Low Voltage Input	Dielectric Strength (Select Models)	Screw Mount	DIN Rail Mount

Two Mounting Hole Types

Two different mounting holes types and sizes allow flexible installation and mounting on various types of heatsinks.

Built-In Alarm (Overheating) Function

In case of overheating due to product damage or overcurrent, the alarm output turns on and the red LED indicator provides safer operation for users.

Low Voltage Models Available/Dielectric Strength Up to 4000VAC

24VAC low voltage models are available for flexible application in diverse settings. Select models feature high dielectric strength of up to 4000VAC.

Zero Cross Turn-On/Random Turn-On Models Available

•Zero Cross Turn-On

The relay switches ON/OFF when the voltage reaches the zero-crossing point of the sine wave. This method minimizes surge current and inrush current, and is ideal for most common industrial loads.

•Random Turn-On

The relay opens or turns on immediately when the input signal is applied and turns off when the signal is removed. This method allows phase-control applications requiring precise control of power.

Status Indicators

The input indicator (green LED) allows users to quickly identify the operation status of the relays.

Applications

Solid state relays used for temperature control of SMT machinery

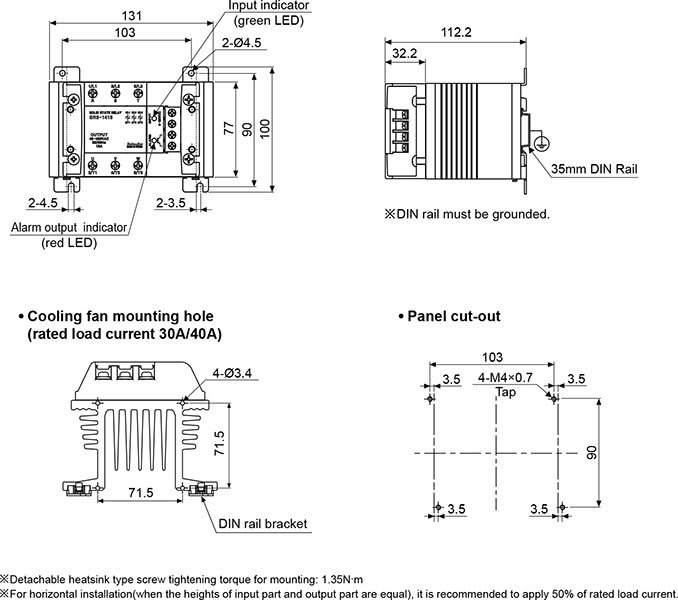

Dimensions

•Detachable heatsink type

•Integrated heat sink (rated load current 15A/30A/40A)

•Integrated heat sink (rated load current 50A)

•Integrated heat sink (rated load current 75A)

Ordering Information

Autonics SR3 Series General Specifications
Dielectric strength (Vrms)		• 24-240VAC~ rated load current 15A/30A: 2500VAC 50/60Hz 1 min (Input-Output, Input/Output-Case)
		• 24-240VAC~ rated load current 50A/75A • 48-480VAC~ rated load current 15A/30A/40A/50A/75A : 4000VAC 50/60Hz 1 min (Input-Output, Input/Output-Case)
Insulation resistance		Over 100MΩ (at 500VDC megger) (Input-Output, Input/Output-Case)
Indicator		Input indicator: Green LED / Alarm output indicator: Red LED
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 min
Shock	Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment	Ambient temperature	-30 to 80°C (in case of the rated input voltage 90-240VACᜠ: -30 to 70°C), Storage: -30 to 10°C℃ ( The rated load current capacity is different depending on ambient temperature. Refer to ' SSR Derating Curve'.)
	Ambient humidity	45 to 85%RH, Storage: 45 to 85%RH
Input terminal connection		Min. 1×0.5mm² (1×AWG 20) Max. 1×1.5mm² (1×AWG 16) or 2×1.5mm² (2×AWG 16)
Output terminal connection		Min. 1×1.5mm² (1×AWG 16) Max. 1×16mm² (1×AWG 6) or 2×6mm² (2×AWG 10)
Input terminal fixed torque		0.75 to 0.95N·m
Output terminal fixed torque		1.6 to 2.2N·m
Approval		CE
Weight^*1		• Detachable heatsink type : approx. 365g (approx. 275g) • Integrated heat sink type: Rated load current 15A/30A/40A: approx. 896g (approx. 686g) Rated load current 50A: approx. 1508g (approx. 1268g) Rated load current 75A: approx. 2354g (approx. 2064g)
1: The weight includes packaging. The weight in parenthesis is for unit only. Environment resistance is rated at no freezing or condensation. *For wiring the terminal, an O-ring terminal must be used.

Output
Rated load voltage range		24-240VACrms~ (50/60Hz)				48-480VACrms~ (50/60Hz)
Load voltage range		24-264VACrms~ (50/60Hz)				48-528VACrms~ (50/60Hz)
Rated load current	Resistive load (AC-51)^*1	15Arms	30Arms	50Arms	75Arms	15Arms	30Arms	40Arms	50Arms	75Arms
Min. load current		0.15Arms	0.2Arms	0.5Arms		0.5Arms
Max. 1 cycle surge current (60Hz)		250A	400A	1000A		300A	500A		1000A
Max. non-repetitive surge current (I²t, t=8.3ms)		340A²S	1000A²S	4000A²S		350A²S	1000A²S		4000A²S
eak voltage (non-repetitive)		600V				1200V (Zero cross turn-on), 1000V (Random turn-on)
Leakage current (Ta=25°C)		Max. 10mArms (240VAC~/60Hz)				Max. 10mArms (480VAC~/60Hz)
Output on voltage drop [Vpk] (Max. load current)		Max. 1.6V
Static off-state dv/dt		500V/μs
*1: AC-51 is utilization category at IEC 60947-4-3.

Alarm output (Temperature overheat)
Rated input voltage range	4-30VDC	24VACrms~ (50/60Hz)	90-240VACrms~ (50/60Hz)
Load input voltage	Max. 30VDC	Max. 30VDC	Max. 30VDC
Load input current	Max. 100mA	Max. 50mA	Max. 50mA
Turn-off time	Max. 20ms	Max. 40ms	Max. 40ms
