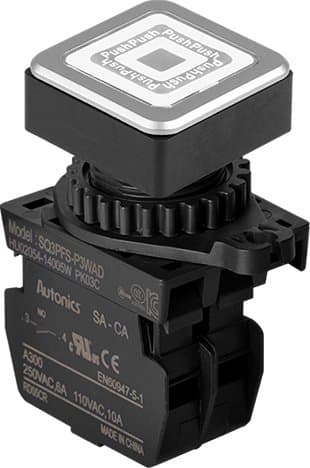

Autonics SQ3PFS-P3WALM 30 mm Square Type Push Button Switch, Flush, Illuminated, White, 1 Nomal Open, Modular Type, LED 110-220VAC 50/60Hz

Name: Autonics SQ3PFS-P3WALM 30 mm Square Type Push Button Switch, Flush, Illuminated, White, 1 Nomal Open, Modular Type, LED 110-220VAC 50/60Hz
Brand: Autonics
SKU: AutonicsSQ3PFS-P3WALM
Availability: InStock

0 reviews | Model: Autonics SQ3PFS-P3WALM

Compare

Square type push button Switches, Flush, 0, Illuminated, White, Modular Type, 1 Nomal Open, LED 110-220VAC 50/60Hz

Protection structure: IP52
Illuminated
Letter marking: Marking (Push)
Button type: Flush (Illuminated)
Contact block: A contact: 1
Color: White

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics SQ3PFS-P3WALM Square type push button Switches, Flush, 0, Illuminated, White, Mod ...	Autonics SQ3PFS-P1BAM Square type push button Switches, Flush, 0,Non Illuminated,Blue,1 No ...	Autonics SQ3PFS-P1GAM Square type push button Switches, Flush, 0, Non Illuminated, Green, ...	Autonics SQ3PFS-P1RBM Square type push button Switches, Flush, 0,Non Illuminated, Red,1 No ...	Autonics SQ3PFS-P1YAM Square type push button Switches, Flush, 0, Non Illuminated, Yellow, ...	Autonics SQ3PFS-P3GALM Square type push button Switches, Flush, 0, Illuminated, Green, Mod ...	Autonics SQ3PFS-P3YALM Square type push button Switches, Flush, 0, Illuminated, Yellow, Mo ...	Autonics SQ3PFS-P3RBLM Square type push button Switches, Flush, 0, Illuminated, Red, Modul ...	Autonics SQ3PFS-P3BALM Square type push button Switches, Flush, 0, Illuminated, Blue, Modu ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics SQ3PFS Series

30 mm Push Button Switches

The SQ3PFS series square type 30 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.

Smooth operation
High electrical conductivity
Long-lasting durability

*Image for reference only, may not be the exact model

Dimensions

Specifications
Contact block_Electrical specification_Power voltage/current	110VAC~/10A, 250VAC~/6A
Protection structure	IP52
Approval
Weight_Mounting hole_□30	Approx. 22g
Weight_Housing	Approx. 7g
Weight_Contact block_Modular type A/B contact	Approx. 10g
Illuminated	Illuminated
Letter marking	Marking (Push)
Button type	Flush (Illuminated)
Color	White
Contact block	A contact: 1
Contact block type	Modular type
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
