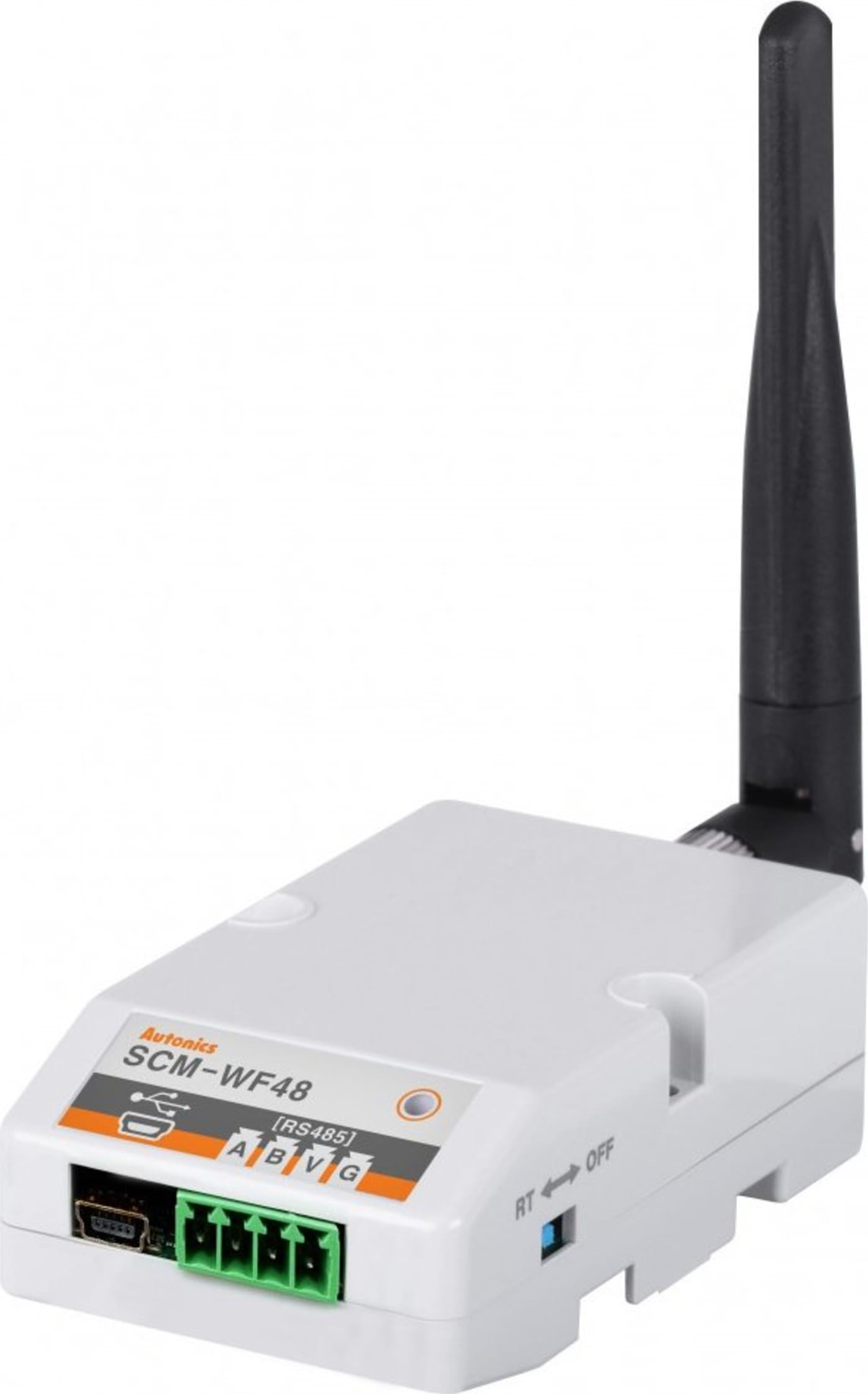

| General Specifications |
| Power supply |
24VDC |
| Allowable voltage range |
12-28VDC |
| Communication type |
RS485, USB, Wi-Fi |
| Isolation resistance |
Min. 200 MΩ(at 500 VDC megger between external terminal and case) |
| Protection circuit |
Reverse polarity protection circuit, surge protection circuit |
| Dielectric strength |
1,000VAC 50/60Hz for 1 min.(between external terminal and case) |
| Noise resistance |
±500 V the square wave noise(pulse width: 1㎲) by the noise simulator |
| Vibration |
1.5 mm amplitude at frequency or 300m/s2 of 10 to 55 Hz(for 1min.) in each of X, Y, Z directions for 2 hours |
| Shock |
500m/s2 (approx. 50G) in each of X, Y, Z directions for 3 times |
| Environment |
Ambient temperature |
-10 to 55℃, storage: -20 to 60℃ |
| Ambient humidity |
35 to 80%RH, storage: 35 to 80%RH |
| Protection |
IP20(IEC standards) |
| Mounting |
DIN rail or panel mounting |
| Accessories |
USB 2.0 Mini 5P type cable (length: 1 m), Connector for RS-485 (4-pin, male type) 1EA |
| Weight※1 |
Approx. 160g(approx. 57g) |
※1: The weight is with packaging and the weight in parentheses is only unit weight.
※Environment resistance is rated at no freezing or condensation |
| Connection |
RS485 |
| Standard |
EIA RS485 |
| Protocol |
Modbus RTU |
| Com. method |
2-wire half duplex |
| Synchronous method |
Asynchronous |
| Effective com. distance |
Max. 800m |
| Com. speed※1 |
4800, 9600, 19200, 38400, 57600, 115200bps (factory default: 115200bps) |
| Data bit※1 |
5bit,6bit,7bit,8bit(factory default:8bit) |
| Stop bit※1 |
1bit, 2bit(factory default: 1bit) |
| Parity bit※1 |
None, Even, Odd(factory default: None) |
| Multi-drop |
Max. 31 Multi-drop |
| Connection type |
4-wire screw terminal (2-wire communication method) |
| ※1: You can set this by DAQMaster. |
| Protocol |
TCP/IP(IPv4) |
| Standard |
802.11 b/g/n(IEEE 802.11b) compatible |
| Com. speed |
Max. 11 Mbps |
| Frequency range |
2.4 to 2.497 GHz |
| Security |
WEP, WPA, WPA2-PSK, Enterprise |
| Antenna |
2dBi external antenna |
| Com. distance |
Max. 100 m |
| Power |
5 V, 500 mA |
| Standard |
USB 2.0(compatible sub-transmission) |
| Com. method |
2-wire half duplex |
| Connections |
USB 2.0 Mini 5P type(Male) |
