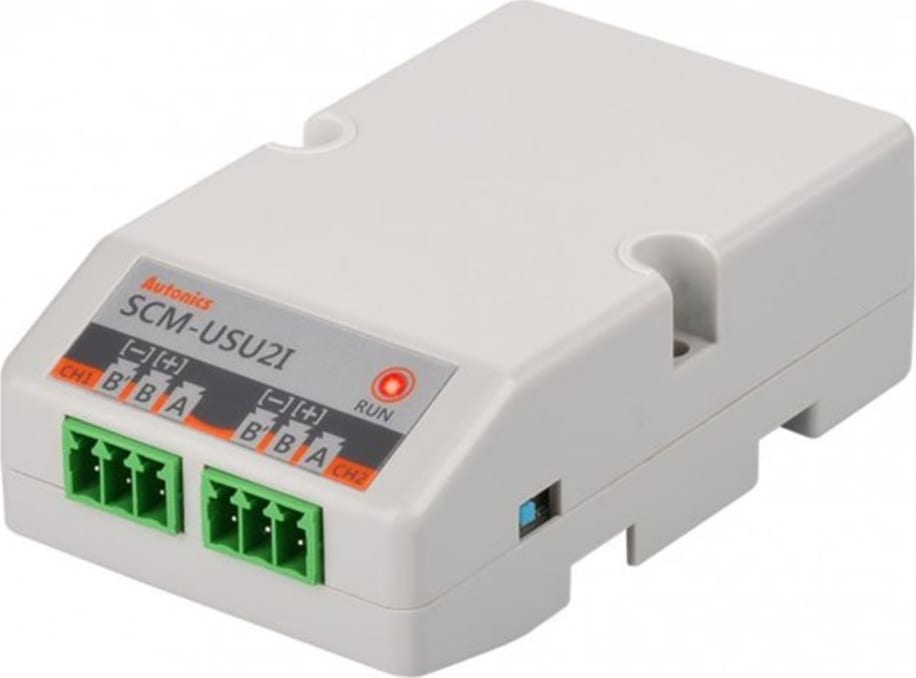

Autonics SCM-USU21 2-CH USB Temperature Data Logger

Name: Autonics SCM-USU21 2-CH USB Temperature Data Logger
Brand: Autonics
SKU: AutonicsSCM-USU21
Price: 196.95 USD
Availability: InStock

0 reviews | Model: Autonics SCM-USU21

Compare

2-CH USB Temperature Data Logger

2-CH USB Temperature Data Logger
Realizing electrical insulation (2500V RMS) between USB port and RS485 port through RS485 transceiver
Improved stability and durability with built-in protection circuit
Easy connections between devices with bus power supplied from USB host controller without external power supply
Offering USB 2.0 A/B type cable with built-in ferrite core for noise reduction
Various operating systems supported (Windows 98, 98SE, ME, 2000, Server 2003, XP, Vista, 7)
User friendly features through compatibility with USB 1.1 and USB 2.0

View Product Details

List Price: $196.95

In Stock:

View Payment Options

Recommended for you

Autonics SMC Series (SCM-USU21)

2-CH USB Temperature Data Logger

Dimensions

•SCM-US48I

•USB 2.0 AB type cable

Example of Connections

•SCM-US48I

Installations

•SCM-US48I and SCM-381

'B' (Length of screw)	"A" size (23N+0.5)	"B" size (23N-3)
1	23.5mm	20mm
2	46.5mm	43mm
3	69.5mm	66mm
4	92.5mm	89mm

Example of Connections

•In case of connecting PC with SCM-WF48, SCM-US48I or SCM-US, when changing PC USB port and connecting thisunit to another (changed) USB port, USB driver will be reinstalled. This is not a malfunction.
•When connecting SCM-US or SCM-US48I communication module, please connect PC first. Then, connect RS485communication product afterward. When disconnecting the units, remove the unit in reverse order.
•Using the Twisted pair cable (AWG24), which is suitable to RS485 communication is recommended. If the Twisted paircable is not used, be sure preserving identically the length of A(+) and B(-) cables.
•After connecting SCM-WF48 with RS485 communication DEVICE, be sure to attach the terminating resistor (120Ω).After connecting SCM-38I, SCM-US48I with RS485 communication DEVICE, be sure to attach the terminating resistor(100 to 120Ω).
In case of connect PC with SCM-WF48, SCM-US48I, or SCM-US , No. of COM Port will be numbered in order.This is not a malfunction. (e.g. COM 14, COM 15, ..., COM 256)
•When connecting SCM-WF48, SCM-US48I or SCM-US with USB cable, check COM port number before communication.It may take some time for computer to detect the cable after the cable is connected. (This is not a malfunction.)
•When connecting PC with SCM-WF48, SCM-48I or SCM-US, do not use the extension cable to extend USB cable length.It may cause a malfunctions.
•Be cautious when using SCM-WF48 or SCM-US as non-isolated type.Check the connection, disconnection and short of communication cable before supplying the power to SCM-WF48.
•Only use Autonics products that are available for SCM-US.
•Observe the rated voltage.
•To avoid malfunctions due to noise, do not place the unit close to a high-voltage power line.
•Proper application environment(Avoid following environments for unit to be used.)
•Where severe vibration or shock exists
•Where close to a strong alkali or strong acid• Where direct rays of light exist
•Where near facilities generating strong magnetic forces or electric noise.
•Storage
•Keep the unit -20 to 60℃, 35 to 85%RH with avoiding direct rays of light. It is recommended to keep the unit packageas it is.
•Installation environment
•It shall be used indoor
•Altitude max. 2000m
•Pollution degree 2
•Installation category I

General Specifications
Model		SCM-US48I	SCM-38I	SCM-US
Power supply		5VDC USB bus Power	12-24VDC ± 10%	5VDC USB bus Power*1
Power consumption		Max. 1W	Max. 1.7W	Max. 1W
Max. com speed*2		1,200 to 115,200bps(Recommended : 9,600bps)
Communication type		Half duplex type
Available com. distance		USB: Max. 1m ± 30% RS485: Max.1.2km	Max. 1.2km	1.5m(not extension)
Multi-drop		Max. 31 multi-drop		----
Protocol*2	Data bit	5 to 8 data bits		----
	Stop bit	1 or 2 stop bits		----
	Parity bit	None/Odd/Even		----
Connection type		USB: B type connector	RS232: D-sub 9Pin	USB: A type connector
		RS485: 4-wire screw terminal(2wire communication type)		Earphone jack(4 pole stereo phone plug)
Isolation type		Isolation		Non-isolation
Dielectric strength		Between terminals and case:200VAC 50/60Hz for 1 min. Between USB and RS485:2500VAC 50/60Hz for 1 min.	Between terminals and case:200VAC 50/60Hz for 1 min. Between RS232C and RS485:2500VAC 50/60Hz for 1 min.	----
Insulation resistance		Min. 100MΩ(at 500VDC megger)		-----
Noise strength		±500V the square wave noise(pulse width: 1㎲) by the noise simulator -		-----
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz in each of X, Y, Z directions for 10 minutes
Shock	Mechanical	300m/s(approx. 30G) in each of X, Y, Z directions for 3 times
	Malfunction	100m/s(approx. 10G) in each of X, Y, Z directions for 3 times
Environment	Ambient temperature	-10 to 55℃, storage: -20 to 60℃
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Approval
Accessory		UUSB 2.0 AB type connector (length: 1m)	----e
Unit weight		Approx. 34.5g	Approx. 46g	Approx. 41g
1: USB bus power is supplied from PC or USB host controller. 2: Protocol and communication speed are set by Hyper terminal. DAQMaster, ParaSet, Modbus Poll.When communicating with Autonics products, set communication speed to 9,600bps. There might be some differences in the specification above depending on PC environment. Environment resistance is rated at no freezing or condensation.

Tech Specs

Test Equipment General Attributes
Country of Origin	Korea
