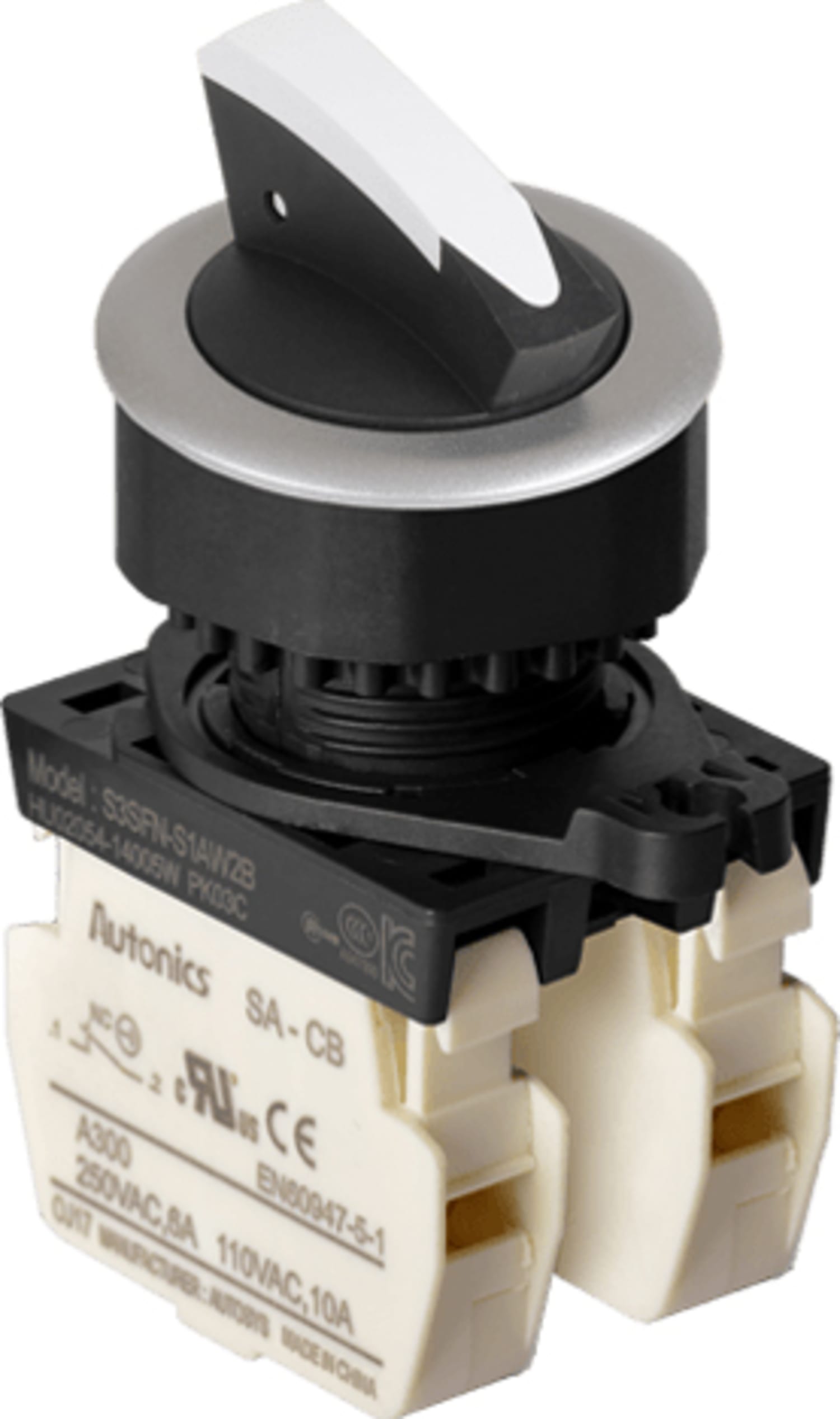

Autonics S3SFN-S5W2B - 30 mm Selector Switches

Name: Autonics S3SFN-S5W2B - 30 mm Selector Switches
Brand: Autonics
SKU: AutonicsS3SFN-S5W2B
Availability: InStock

0 reviews | Model: Autonics S3SFN-S5W2B

Compare

Selector switch, Diameter 30mm, Flush, Shark-head lever, Non-Illuminated, 3-position, Spring return two-way, Left 60 Degrees, Right 60 Degrees, White, 2 Normal Close, 250VAC 6A, 110VAC 10A, Singular Type, S3SFN-S5W /w 2 PCS of SA-CB

Mechanical characteristics Operation angle: Center 60˚, Right 60˚
Protection structure: IP52
Operation type: Short lever 3-position, spring return two-way
Color: White
Contact block: B contact: 2
Contact block type: Singular type
Smooth operation
High electrical conductivity
Long-lasting durability

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S3SFN-S5W2B Selector switch, Diameter 30mm, Flush, Shark-head lever, Non-Illumina ...	Autonics S3SFN-L3AG Selector switch, Diameter 30mm, Flush, Illuminated, Shark short lever, ...	Autonics S3SFN-L7G Selector switch, Diameter 30mm, Flush, Illuminated, Shark short lever, ...	Autonics S3SFN-S3AW Selector switch, Diameter 30mm, Flush, Non-Illuminated, Shark short le ...	Autonics S3SFN-S5KW Selector switch, Diameter 30mm, Flush, Shark-head lever, Non-Illuminat ...	Autonics S3SFN-S5KW2B Selector switch, Diameter 30mm, Flush, Shark-head lever, Non-Illumin ...	Autonics S3SFN-S5W Selector switch, Diameter 30mm, Flush, Shark-head lever, Non-Illuminate ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S3SFN-S5W2B - 30 mm Selector Switches

S3SF Series

Mechanical characteristics Operation angle: Center 60˚, Right 60˚
Operation type: Short lever 3-position, spring return two-way
Color: White
Contact block: B contact: 2
Contact block type: Singular type

The S3SF series round, flush type Ø30 mm selector switches feature easy-to-operate shark-head lever designs for smooth operation and maneuverability.

Product Dimension

Mechanical characteristics Operation angle	Left 60˚, Right 60˚
Contact block Electrical specification Power voltage/current	110VAC~/10A, 250VAC~/6A
Protection structure	IP52
Approval	CE (LED blocks are except certifications)
Weight Mounting hole Ø30	Approx. 21g
Weight Housing	Approx. 7g
Weight Contact block Singular type A/B contact	Approx. 11g
Operation type	Short lever 3-position, spring return two-way
Color	White
Contact block	B contact: 2
Contact block type	Singular type
Environment Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
