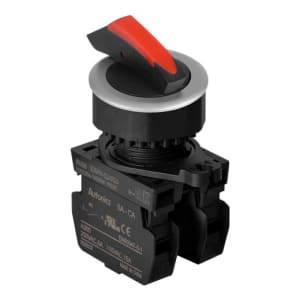

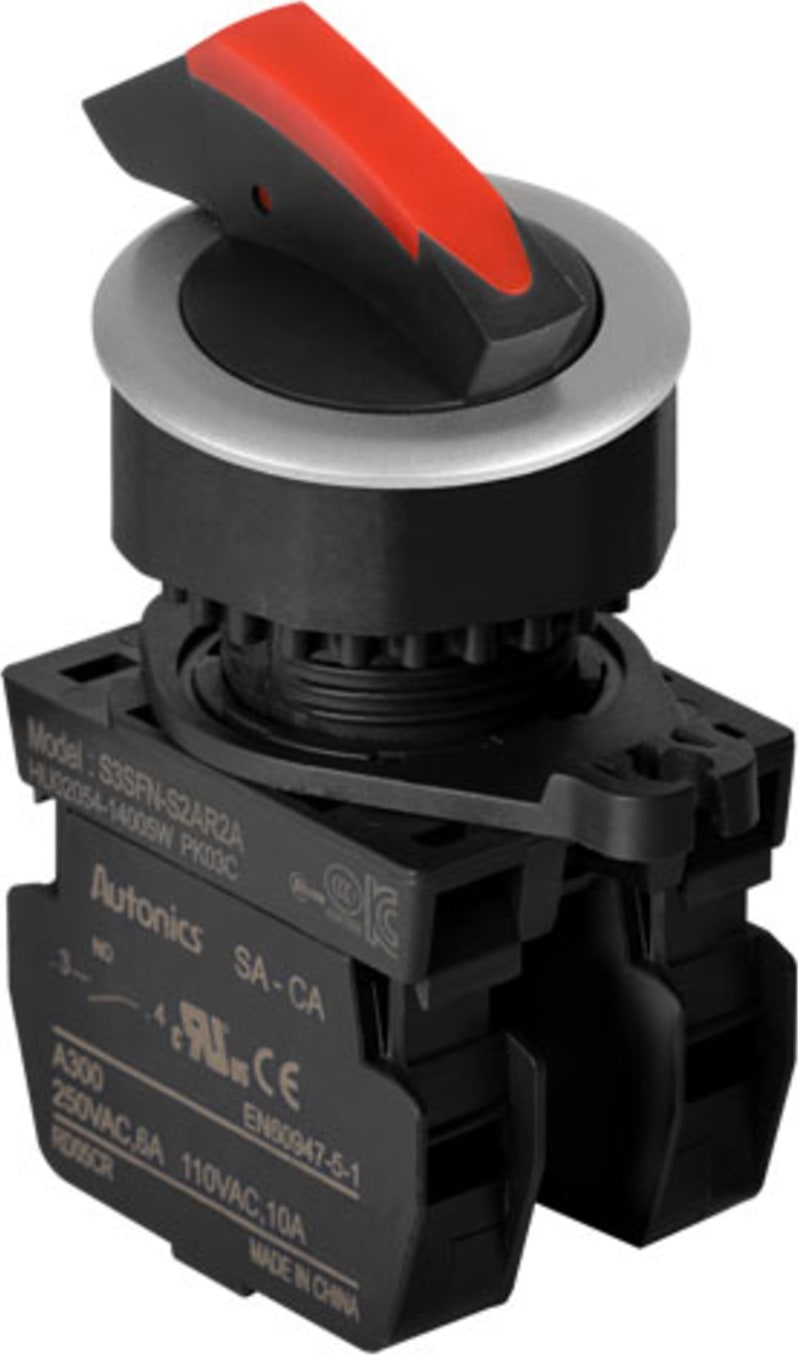

Autonics S3SFN-S3AW2A Selector switch, Diameter 30mm, Flush, Non-Illuminated, Shark short lever, White, 2-position maintained, 2 Normal Open, 110 - 220 VAC 50/60 Hz, Singular Type

Name: Autonics S3SFN-S3AW2A Selector switch, Diameter 30mm, Flush, Non-Illuminated, Shark short lever, White, 2-position maintained, 2 Normal Open, 110 - 220 VAC 50/60 Hz, Singular Type
Brand: Autonics
SKU: AutonicsS3SFN-S3AW2A
Price: 15.00 USD
Availability: InStock

0 reviews | Model: Autonics S3SFN-S3AW2A

Compare

Selector switch, Diameter 30mm, Flush, Non-Illuminated, Shark short lever, White, 2-position maintained, 2 Normal Open, 110 - 220 VAC 50/60 Hz, Singular Type

Protection structure : IP52
Operation type : Short lever 2-position, maintained
Color : White
Contact block : A contact: 2
Contact block type : Singular type

View Product Details

Your Price: $15.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics S3SFN-S3AW2A Selector switch, Diameter 30mm, Flush, Non-Illuminated, Shark short ...	Autonics S3SF-S3R2B Seletor Switches 0, 2 Positions, Fixed Position, Knob, RED, 2 Normal C ...	Autonics S3SF-S3WAB Seletor Switches 0, 2 Positions, Fixed Position, Knob, WHITE, 1 Normal ...	Autonics S3SF-S4W2A Seletor Switches 0, 2 Positions, Fixed Position, Lever, WHITE, 2 Norma ...	Autonics S3SF-S4WAB Seletor Switches 0, 2 Positions, Fixed Position, Lever, WHITE, 1 Norma ...	Autonics S3SF-S6WAB Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, WHITE, 1No ...	Autonics S3SF-S7R2A Seletor Switches 0, 3 Positions, Fixed Position, Knob, RED, 2 Normal O ...	Autonics S3SF-S7WAB Seletor Switches 0, 3 Positions, Fixed Position, Knob, WHITE, 1Normal ...	Autonics S3SF-S8W2A Seletor Switches 0, 3 Positions, Fixed Position, Lever, WHITE, 2 Norma ...	Autonics S3SF-S8WAB Seletor Switches 0, 3 Positions, Fixed Position, Lever, WHITE, 1Normal ...	Autonics S3SF-S5RAB Seletor Switches 0, 3 Positions, Auto Spring Return, Knob, RED, 1Norma ...	Autonics S3SF-S5W2A Seletor Switches 0, 3 Positions, Auto Spring Return, Knob, WHITE, 2 No ...	Autonics S3SF-S6W2A Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, WHITE, 2 N ...	Autonics S3SF-S3R Seletor Switches 0, 2 Positions, Fixed Position, Knob, Red	Autonics S3SF-S3R2A Seletor Switches 0, 2 Positions, Fixed Position, Knob, RED, 2 Normal O ...	Autonics S3SF-S3RB Seletor Switches 0, 2 Positions, Fixed Position, Knob, RED, 1 Normal Cl ...	Autonics S3SF-S3W Seletor Switches 0, 2 Positions, Fixed Position, Knob, White	Autonics S3SF-S3W2A Seletor Switches 0, 2 Positions, Fixed Position, Knob, WHITE, 2 Normal ...	Autonics S3SF-S3W2B Seletor Switches 0, 2 Positions, Fixed Position, Knob, WHITE, 2 Normal ...	Autonics S3SF-S3WA Seletor Switches 0, 2 Positions, Fixed Position, Knob, WHITE, 1 Normal ...	Autonics S3SF-S3WABM Seletor Switches 0, 2 Positions, Fixed Position, Knob, WHITE, 1 Norma ...	Autonics S3SF-S3WB Seletor Switches 0, 2 Positions, Fixed Position, Knob, WHITE, 1 Normal ...	Autonics S3SF-S4R Seletor Switches 0, 2 Positions, Fixed Position, Lever, Red	Autonics S3SF-S4R2A Seletor Switches 0, 2 Positions, Fixed Position, Lever, RED, 2 Normal ...	Autonics S3SF-S4R2B Seletor Switches 0, 2 Positions, Fixed Position, Lever, RED, 2 Normal ...	Autonics S3SF-S4RA Seletor Switches 0, 2 Positions, Fixed Position, Lever, RED, 1 Normal O ...	Autonics S3SF-S4RAB Seletor Switches 0, 2 Positions, Fixed Position, Lever, RED, 1 Normal ...	Autonics S3SF-S4RB Seletor Switches 0, 2 Positions, Fixed Position, Lever, RED, 1 Normal C ...	Autonics S3SF-S4W Seletor Switches 0, 2 Positions, Fixed Position, Lever, White	Autonics S3SF-S4W2B Seletor Switches 0, 2 Positions, Fixed Position, Lever, WHITE, 2 Norma ...	Autonics S3SF-S4WA Seletor Switches 0, 2 Positions, Fixed Position, Lever, WHITE, 1 Normal ...	Autonics S3SF-S4WB Seletor Switches 0, 2 Positions, Fixed Position, Lever, WHITE, 1 Normal ...	Autonics S3SF-S5R Seletor Switches 0, 3 Positions, Auto Spring Return, Knob, Red	Autonics S3SF-S5R2A Seletor Switches 0, 3 Positions, Auto Spring Return, Knob, RED, 2 Norm ...	Autonics S3SF-S5R2B Seletor Switches 0, 3 Positions, Auto Spring Return, Knob, RED, 2 Norm ...	Autonics S3SF-S5WAB Selector Switches 30, 3 Positions, Auto Spring Return, Knob, White, 1 ...	Autonics S3SFN-L3AGABL Selector switch, 0mm, Flush, Illuminated, Shark short lever, Green, ...	Autonics S3SFN-L7GABL Selector switch, 0mm, Flush, Illuminated, Shark short lever, Green, ...	Autonics S3SFN-L7GABLM Selector switch, 0mm, Flush, Illuminated, Shark short lever, Green, ...	Autonics S3SFN-L8GABL Selector switch, 0mm, Flush, Illuminated, Shark short lever, Green, ...	Autonics S3SFN-L8GABLM Selector switch, 30mm, Flush, Illuminated, Shark long lever, Green, ...	Autonics S3SFN-S3AWAM Selector switch, 0mm, Flush, Non-Illuminated, Shark short lever, Whi ...	Autonics S3SF-S5W Seletor Switches 0, 3 Positions, Auto Spring Return, Knob, White	Autonics S3SF-S5W2B Seletor Switches 0, 3 Positions, Auto Spring Return, Knob, WHITE, 2 No ...	Autonics S3SF-S6KW Seletor Switches 0, 3 Positions, Auto Spring Return, Left 45 Right 45, ...	Autonics S3SF-S6KW2A Seletor Switches 0, 3 Positions, Auto Spring Return, Left 45 Right 45 ...	Autonics S3SF-S6R Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, Red	Autonics S3SF-S6R2A Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, RED, 2 Nor ...	Autonics S3SF-S6R2B Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, RED, 2 Nor ...	Autonics S3SF-S6RAB Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, RED, 1Norm ...	Autonics S3SF-S6W Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, White	Autonics S3SF-S6W2B Seletor Switches 0, 3 Positions, Auto Spring Return, Lever, WHITE, 2 N ...	Autonics S3SF-S7R Seletor Switches 0, 3 Positions, Fixed Position, Knob, Red	Autonics S3SF-S7R2B Seletor Switches 0, 3 Positions, Fixed Position, Knob, RED, 2 Normal C ...	Autonics S3SF-S7W Seletor Switches 0, 3 Positions, Fixed Position, Knob, White	Autonics S3SF-S7W2A Seletor Switches 0, 3 Positions, Fixed Position, Knob, WHITE, 2 Normal ...	Autonics S3SF-S7W2B Seletor Switches 0, 3 Positions, Fixed Position, Knob, WHITE, 2 Normal ...	Autonics S3SF-S7WABM Seletor Switches 0, 3 Positions, Fixed Position, Lever, WHITE, 1Norma ...	Autonics S3SF-S8R Seletor Switches 0, 3 Positions, Fixed Position, Lever, Red	Autonics S3SF-S8R2A Seletor Switches 0, 3 Positions, Fixed Position, Lever, RED, 2 Normal ...	Autonics S3SF-S8R2B Seletor Switches 0, 3 Positions, Fixed Position, Lever, RED, 2 Normal ...	Autonics S3SF-S8RAB Seletor Switches 0, 3 Positions, Fixed Position, Lever, RED, 1Normal O ...	Autonics S3SF-S8W Seletor Switches 0, 3 Positions, Fixed Position, Lever, White	Autonics S3SF-S8W2B Seletor Switches 0, 3 Positions, Fixed Position, Lever, WHITE, 2 Norma ...	Autonics S3SFN-S5W2A Selector switch, Diameter 30mm, Flush, Non-Illuminated, Shark short l ...	Autonics S3SFN-L8G Selector switch, 0mm, Flush, Illuminated, Shark short lever, Green, 3-p ...	Autonics S3SFN-L3AYAL Selector switch, Diameter 30mm, Flush, Illuminated, Shark short leve ...	Autonics S3SFN-L3ARAL Selector switch, Diameter 30mm, Flush, Illuminated, Shark short leve ...	Autonics S3SF-S3WAM Seletor Switches, Flush Illuminated, Diameter 22/25, 2 Positions maint ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S3SFN Series Ø30 Round Shark Lever Selector Switches

S3SFN-S3AW2A Selector switch, Diameter 30mm, Flush, Non-Illuminated, Shark short lever, White, 2-position maintained, 2 Normal Open, 110 - 220 VAC 50/60 Hz, Singular Type

The S3SF series round, flush type Ø30 mm selector switches feature easy-to-operate shark-head lever designs for smooth operation and maneuverability.

Smooth operation
High electrical conductivity
Long-lasting durability

Dimensions

General Specifications
Mechanical characteristics_Operation angle	Center 0˚, Right 90˚
Contact block_Electrical specification_Power voltage/current	110VAC~/10A, 250VAC~/6A
Protection structure	IP52
Weight_Mounting hole_Ø30	Approx. 21g
Weight_Housing	Approx. 7g
Weight_Contact block_Singular type A/B contact	Approx. 11g
Operation type	Short lever 2-position, maintained
Color	White
Contact block	A contact: 2
Contact block type	Singular type
Environment_Ambient temperature	-15 to 55°C, storage: -25 to 65°C
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
※Environment resistance is rated no freezing or condensation. ※The control unit, contact blocks, LED blocks are sold separately. ※Connect up to 2 contact blocks. Connect the contact blocks only on the right and left side slots. It will not operate if connected to the center slot.
