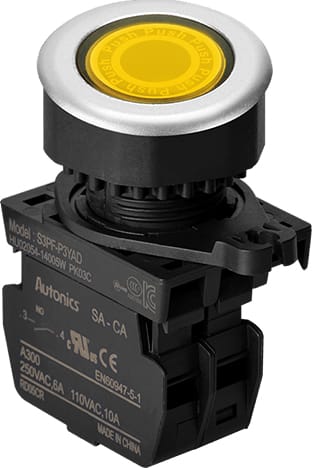

Autonics S3PF-P3YADM - 30 mm Push Button Switches

Name: Autonics S3PF-P3YADM - 30 mm Push Button Switches
Brand: Autonics
SKU: AutonicsS3PF-P3YADM
Availability: InStock

0 reviews | Model: Autonics S3PF-P3YADM

Compare

Illuminated Push Button (Flush), 30, Yellow, Normal Open, LED 12-30VDC/AC, Multi Stack

Illuminated: Illuminated
Button type: Flush(illuminated)
Color: Yellow
Contact block: A contact: 1
Contact block type: Modular type
Smooth operation
High electrical conductivity
Long-lasting durability

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S3PF-P3YADM Illuminated Push Button (Flush), 30, Yellow, Normal Open, LED 12-30VD ...	Autonics S3PF-P3BADM Illuminated Push Button (Flush), 30, Blue, Normal Open, LED 12-30VDC/ ...	Autonics S3PFU-P3B Illuminated Push Button (Flush), 30, No Printing, Blue, Head	Autonics S3PFU-P3G Illuminated Push Button (Flush), 30, No Printing, Green, Head	Autonics S3PFU-P3R Illuminated Push Button (Flush), 30, No Printing, Red, Head	Autonics S3PFU-P3W Illuminated Push Button (Flush), 30, No Printing, White, Head	Autonics S3PFU-P3Y Illuminated Push Button (Flush), 30, No Printing, Yellow, Head
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S3PF-P3YADM - 30 mm Push Button Switches

S3PF Series

Illuminated: Illuminated
Button type: Flush(illuminated)
Color: Yellow
Contact block: A contact: 1
Contact block type: Modular type

The S3PF series round, flush type Ø30 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.

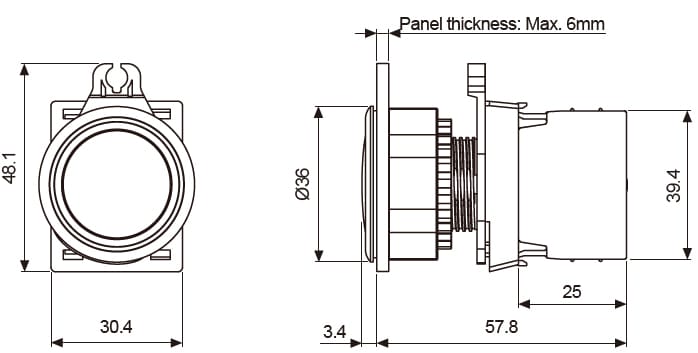

Product Dimension

Contact block Electrical specification Power voltage/current	110VAC~/10A, 250VAC~/6A
LED block Power supply	12-24VAC~ 50/60Hz, 12-24VDC
LED block Current consumption	Max. 20mA
Protection structure	IP52
Approval	CE (LED blocks are except certifications)
Weight Mounting hole Ø30	Approx. 21.5g
Weight Housing	Approx. 7g
Weight Contact block Modular type A/B contact	Approx. 10g
Weight LED block AC/DC voltage type	Approx. 11g
Illuminated	Illuminated
Letter marking	Marking(Push)
Button type	Flush(illuminated)
Color	Yellow
Contact block	A contact: 1
Contact block type	Modular type
Environment Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
