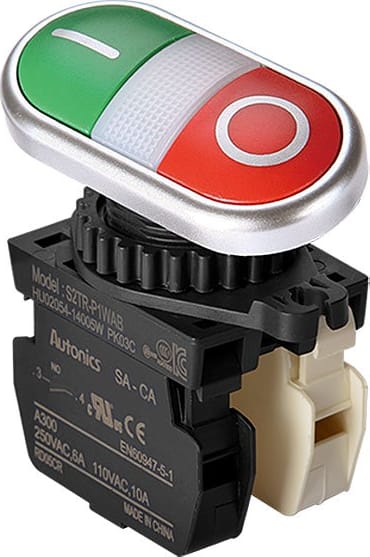

Autonics S2TR-P1WAB 22/25 mm Double Push Button Switch, Auto Spring Return, Non-Illuminated, White, 1 Normal Open, 1 Normal Close, 110VAC/10A, 220VAC/5A

Name: Autonics S2TR-P1WAB 22/25 mm Double Push Button Switch, Auto Spring Return, Non-Illuminated, White, 1 Normal Open, 1 Normal Close, 110VAC/10A, 220VAC/5A
Brand: Autonics
SKU: AutonicsS2TR-P1WAB
Availability: InStock

0 reviews | Model: Autonics S2TR-P1WAB

Compare

Double Push Buttons 2/25, WHTIE, 1Normal Open, 1Normal Close, Non-Illuminated, Auto Spring Return, 110VAC/10A, 220VAC/5A

Protection structure: IP50
Button type: (Non-Illuminated) Extended
Contact block: A contact: 1, B contact: 1
Contact block type: Singular type

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S2TR-P1WAB Double Push Buttons 2/25, WHTIE, 1Normal Open, 1Normal Close, Non-Illu ...	Autonics S2TR-P1W2B Double Push Buttons 2/25, WHTIE, 2Normal Close, Non-Illuminated, Auto ...	Autonics S2TR-P3WABD Double Push Buttons 2/25, WHTIE, 1Normal Open, 1Normal Close, Illumin ...	Autonics S2TR-P3WABL Double Push Buttons 2/25, WHTIE, 1Normal Open, 1Normal Close, Illumin ...	Autonics S2TR-P1W ROUND MOUNT 22/25MM SWITCHES/PILOT LIGHT	Autonics S2TR-P1W2A Double Push Buttons 2/25, WHTIE, 2Normal Open, Non-Illuminated, Auto S ...	Autonics S2TR-P3W Double Push Buttons 2/25, illuminated, White, Head, Requires Contact Blo ...	Autonics S2TR-P3WABLM Illuminated Push Button (Non-Flush), Diameter 22/25, White, Normal C ...	Autonics S2TR-P3WABDM Illuminated Push Button (Non-Flush), Diameter 22/25, White, Normal C ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S2TR Series

22/25 mm Double Push Button Switches

The S2TR series Ø22/25 mm double push-button switches are ideal for applications requiring ON/OFF control. The switches offer high electrical conductivity, outstanding performance and long-lasting durability.

Smooth operation
High electrical conductivity
Long-lasting durability

*Image for reference only, may not be the exact model

Extended

Model	Contact block		LED block
Model	A contact	B contact	AC/DC voltage	AC voltage
S2TR-P1W2A(M)	2	-	-	-
S2TR-P1W2B(M)	-	2	-	-
S2TR-P1WAB(M)	1	1	-	-

※The M in the model name indicates modular type contact block. Models without M are singular contact block.

Dimensions

Extended Illuminated

Model	Contact block		LED block
Model	A contact	B contact	AC/DC voltage	AC voltage
S2TR-P3W2AD(M)	2	-	1	--
S2TR-P3W2AL(M)	2	-	-	-1
S2TR-P3W2BD(M)	-	2	1	--
S2TR-P3W2BL(M)	-	2	-	1
S2TR-P3WABD(M)	1	1	1	-
S2TR-P3WABL(M)	1	1	-	1

※The M in the model name indicates modular type contact block. Models without M are singular contact block.

Dimensions

Specifications
Contact block_Electrical specification_Power voltage/current	110VAC~/10A, 250VAC~/6A
Protection structure	IP50
Approval
Weight_Mounting hole_Ø22/25	Approx. 14.5g
Weight_Housing	Approx. 7g
Weight_Contact block_Singular type A/B contact	Approx. 11g
Button type	(Non-Illuminated) Extended
Contact block	A contact: 1, B contact: 1
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Contact block type	Singular type
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
※Environment resistance is rated no freezing or condensation.
※The control unit, contact blocks, LED blocks are sold separately.
