Autonics S2SR-S5RAB 22/25 mm Selector Switch, 3 Positions, Auto Spring Return, Knob, Red, 1 Normal Open, 1 Normal Close, 110VAC/10A, 220VAC/5A

Name: Autonics S2SR-S5RAB 22/25 mm Selector Switch, 3 Positions, Auto Spring Return, Knob, Red, 1 Normal Open, 1 Normal Close, 110VAC/10A, 220VAC/5A
Brand: Autonics
SKU: AutonicsS2SR-S5RAB
Price: 11.00 USD
Availability: InStock

0 reviews | Model: Autonics S2SR-S5RAB

Compare

Seletor Switches diameter 22/25, 3 Positions, Auto Spring Return, Knob, Red, 1 Normal Open, 1 Normal Close, 110VAC/10A, 220VAC/5A

Protection structure: IP52
Operation type: Short lever 3-position, spring return two-way
Color: Red
Contact block: A contact: 1, B contact: 1
Contact block type: Singular type
Operation angle: Left 60°, Right 60°

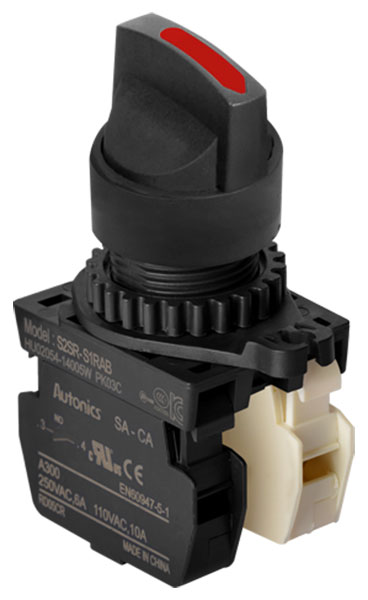

*Image for reference only, may not be the exact model

View Product Details

Your Price: $11.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	Autonics S2SR-S5RAB Seletor Switches diameter 22/25, 3 Positions, Auto Spring Return, Knob ...	Autonics S2SR-S5R Seletor Switches 2/25, 3 Positions, Auto Spring Return, Knob, Red, Requi ...	Autonics S2SR-S5R2A Seletor Switches 2/25, 3 Positions, Auto Spring Return, Knob, RED, 2 N ...	Autonics S2SR-S5R2B Seletor Switches 2/25, 3 Positions, Auto Spring Return, Knob, RED, 2 N ...	Autonics S2SR-S5W Seletor Switches 2/25, 3 Positions, Auto Spring Return, Knob, White, Hea ...	Autonics S2SR-S5W2A Seletor Switches 2/25, 3 Positions, Auto Spring Return, Knob, WHITE, 2 ...	Autonics S2SR-S5W2B Seletor Switches 2/25, 3 Positions, Auto Spring Return, Knob, WHITE, 2 ...	Autonics S2SR-S5WAB Seletor Switches diameter 22/25, 3 Positions, Auto Spring Return, Knob ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S2SR Series

22/25 mm Selector Switches

The S2SR series round, extended type Ø22/25 mm selector switches feature easy-to-operate shark-head lever designs for smooth operation and maneuverability.

Smooth operation
High electrical conductivity
Long-lasting durability

*Image for reference only, may not be the exact model

Specifications
Mechanical characteristics_Operation angle	Left 60°, Right 60°
Contact block_Electrical specification_Power voltage/current	110VAC~/10A, 250VAC~/6A
Protection structure	IP52
Approval
Weight_Mounting hole_Ø22/25	Approx. 19g
Weight_Housing	Approx. 7g
Weight_Contact block_Singular type A/B contact	Approx. 11g
Operation type	Short lever 3-position, spring return two-way
Color	Red
Contact block A contact	A contact: 1, B contact: 1
Contact block type	Singular type
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH

※Environment resistance is rated no freezing or condensation.
※The control unit, contact blocks, LED blocks are sold separately.
※Connect up to 2 contact blocks. Connect the contact blocks only on the right and left side slots. It will not operate if connected to the center slot.
