Autonics S2PRU-E3W - Illuminated Push Button (Non-Flush), No Printing, 22/25, Raised Button, White, Head

Name: Autonics S2PRU-E3W - Illuminated Push Button (Non-Flush), No Printing, 22/25, Raised Button, White, Head
Brand: Autonics
SKU: AutonicsS2PRU-E3W
Availability: InStock

0 reviews | Model: Autonics S2PRU-E3W

Compare

Illuminated Push Button (Non-Flush), No Printing, 22/25, Raised Button, White, Head, Requires Contact Block SA-CA, SA-CB, SA-CAM or SA-CBMRequires Led Block SA-LA, SA-LD, SA-LAM or SA-LDM

Color: White
Illuminated: Illuminated
Button type: Extended(illuminated)

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S2PRU-E3W Illuminated Push Button (Non-Flush), No Printing, 22/25, Raised Button, ...	Autonics S2PRU-P3Y Illuminated Push Button (Non-Flush) Head, 22/25, Yellow, No Printing	Autonics S2PRU-P3W Illuminated Push Button (Non-Flush) Head, 22/25, White, No Printing	Autonics S2PRU-P3R Illuminated Push Button (Non-Flush) Head, 22/25, Red, No Printing	Autonics S2PRU-P3B Illuminated Push Button (Non-Flush) Head, 22/25, Blue, No Printing
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S2PR Series 22/25 mm Push Button Switches

Autonics S2PRU-E3W - Illuminated Push Button (Non-Flush), No Printing, 22/25, Raised Button, White, Head

Color: White
Illuminated: Illuminated
Button type: Extended(illuminated)

The S2PR series round/square Ø22/25 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.

Order Information

Model	Contact block		LED block
Model	A contact	B contact	AC/DC voltage	AC voltage
S2PR(U)-E3☐ADM	1	---	1	---
S2PR(U)-E3☐2ADM	2	---
S2PR(U)-E3☐BDM	---	1
S2PR(U)-E3☐2BDM	---	2
S2PR(U)-E3☐ABDM	1	1
S2PR(U)-E3☐ALM	1	---	---	1
S2PR(U)-E3☐2ALM	2	---
S2PR(U)-E3☐BLM	---	1
S2PR(U)-E3☐2BLM	---	2
S2PR(U)-E3☐ABLM	1	1

※ ☐ indicates color: R, B, G, Y, W
※The control unit, control blocks, LED blocks are sold separately
(control unit: bold letters, contact block: regular letters)
※Control unit + contact block (modular type) models do not contain "PUSH" markings on the button cap.
※Models with 'U' in the model name is available only for control unit. 'U' models do not contains "PUSH" markings on the button cap. ※The LED color is the same as the control unit
※Waterproof cap (models: SA-WP) is available.

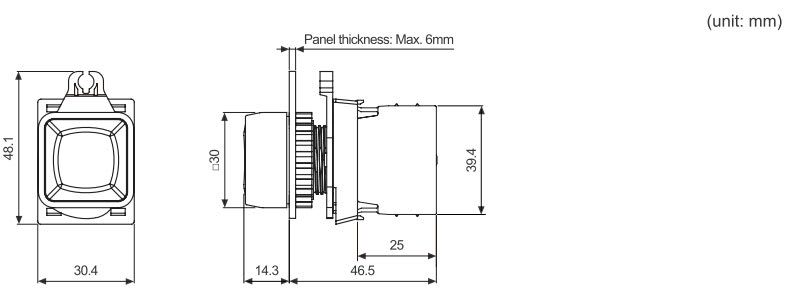

Dimensions

General Specifications
Protection structure	IP52(IP65 protection structure with waterproof cap for Ø22/25 round push button switches)
Weight Mounting hole Ø22/25	Approx. 14.5g
Weight Housing	Approx. 7g
Illuminated	Illuminated
Letter marking	None(no printing)
Button type	Extended(illuminated)
Color	White
Environment Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
