Autonics S2PRS-P3YUALM Electrical Switches

Name: Autonics S2PRS-P3YUALM Electrical Switches
Brand: Autonics
SKU: AutonicsS2PRS-P3YUALM
Availability: InStock

0 reviews | Model: Autonics S2PRS-P3YUALM

Compare

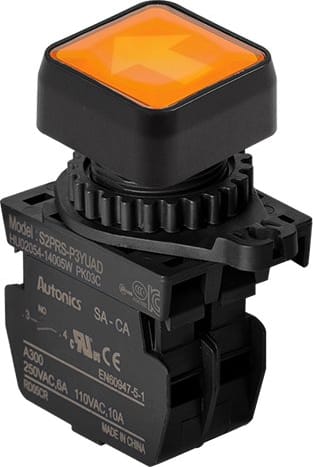

SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Normal Open, Modular Type, LED 100-220VAC, Arrow Mark Up/Down

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us



Product	Autonics S2PRS-P3YUALM SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Norm ...	Autonics S2PRS-P3WALM SquareType Push Button (Non-Flush/Illuminated), 22/25, White, Normal ...
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

General Specifications
Contact block Electrical specification Power voltage/current	110VAC~/10A, 250VAC~/6A
LED block Power supply	110-220VAC~ 50/60Hz
LED block Current consumption	Max. 20mA
Protection structure	IP52
Weight Mounting hole Ø22/25	Approx. 15.5g
Weight Housing	Approx. 7g
Weight Contact block Modular type A/B contact	Approx. 10g
Weight LED block AC voltage type	Approx. 12g
Illuminated	Illuminated
Letter marking	Marking(Push)
Button type	Extended(illuminated)
Color	Yellow
Contact block	A contact: 1
Contact block type	Modular type
Environment Ambient temperature	-15 to 55°C, storage: -25 to 65°C
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Environment resistance is rated no freezing or condensation.
The control unit, contact blocks, LED blocks are sold separately.
The LED color is the same as the control unit.
