Autonics S2PRS-P3YU - SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Arrow Mark Up/Down, Head

Name: Autonics S2PRS-P3YU - SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Arrow Mark Up/Down, Head
Brand: Autonics
SKU: AutonicsS2PRS-P3YU
Price: 2.00 USD
Availability: InStock

0 reviews | Model: Autonics S2PRS-P3YU

Compare

SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Arrow Mark Up/Down, Head

Color: Yellow
Arrow Mark: Up/Down
Illuminated: Illuminated
Button type: Extended(illuminated)

View Product Details

Your Price: $2.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics S2PRS-P3YU SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Arrow M ...	Autonics S2PRS-P3YAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Yellow, Norma ...	Autonics S2PRS-P3WU SquareType Push Button (Non-Flush, Illuminated), 22/25, White, Arrow M ...	Autonics S2PRS-P3WAD Square Type Push Button, Non-Flush, Illuminated, 22/25, White, Normal ...	Autonics S2PRS-P3W SquareType Push Button (Non-Flush, Illuminated), 22/25, White, Head	Autonics S2PRS-P3RAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Red, Normal O ...	Autonics S2PRS-P3GAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Green, Normal ...	Autonics S2PRS-P3BU SquareType Push Button (Non-Flush, Illuminated), 22/25, Blue, Arrow Ma ...	Autonics S2PRS-P3BADM SquareType Push Button (Non-Flush, Illuminated), 22/25, Blue, Normal ...	Autonics S2PRS-P3BAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Blue, Normal ...	Autonics S2PR-P3YALM Illuminated Push Button (Non-Flush), 22/25, Yellow, Normal Open, LED ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S2PR Series 22/25 mm Push Button Switches

S2PRS-P3YU - SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Arrow Mark Up/Down, Head

Color: Yellow
Arrow Mark: Up/Down
Illuminated: Illuminated
Button type: Extended(illuminated)

The S2PR series round/square Ø22/25 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.

Order Information

Appearance	Model	Contact block		LED block
Appearance	Model	A contact	B contact	AC/DC voltage	AC voltage
Arrows (Left / Right)	S2PR-P3☐LAD(M)	1	---	1	---
	S2PR-P3☐L2AD(M)	2	---
	S2PR-P3☐LBD(M)	---	1
	S2PR-P3☐L2BD(M)	---	2
	S2PR-P3☐LABD(M)	1	1
	S2PR-P3☐LAL(M)	1	---	---	1
	S2PR-P3☐L2AL(M)	2	---
	S2PR-P3☐LBL(M)	---	1
	S2PR-P3☐L2BL(M)	---	2
	S2PR-P3☐LABL(M)	1	1
Arrows (UP / DOWN)	S2PR-P3☐ULAD(M)	1	---	1	---
	S2PR-P3☐UL2AD(M)	2	---
	S2PR-P3☐ULBD(M)	---	1
	S2PR-P3☐UL2BD(M)	---	2
	S2PR-P3☐ULABD(M)	1	1
	S2PR-P3☐ULAL(M)	1	---	---	1
	S2PR-P3☐UL2AL(M)	2	---
	S2PR-P3☐ULBL(M)	---	1
	S2PR-P3☐UL2BL(M)	---	2
	S2PR-P3☐ULABL(M)	1	1

※ ☐ indicates color: R, B, G, Y, W
※The control unit, control blocks, LED blocks are sold separately
(control unit: bold letters, contact block: regular letters)
※The LED color is the same as the control unit

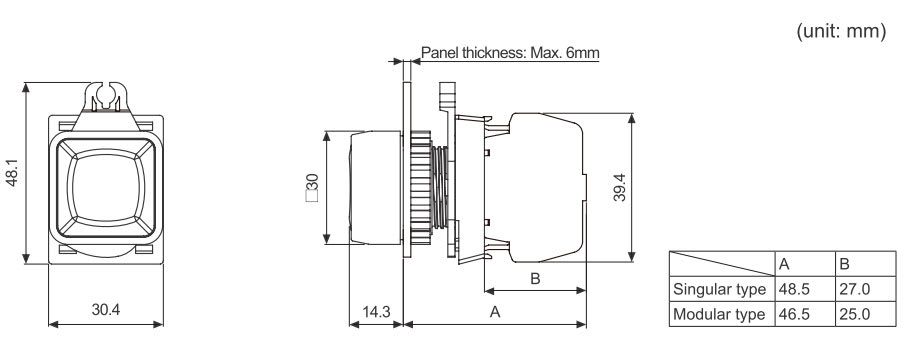

Dimensions

General Specifications
Protection structure	IP52
Weight Mounting hole Ø22/25	Approx. 15.5g
Weight Housing	Approx. 7g
Illuminated	Illuminated
Letter marking	Marking(Push)
Button type	Extended(illuminated)
Color	Yellow
Environment Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
