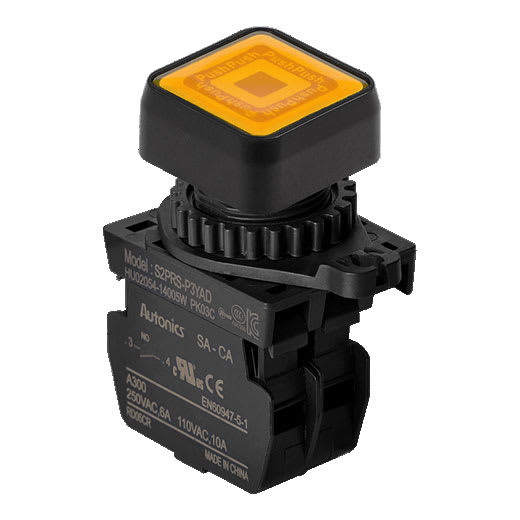

Autonics S2PRS-P3YAD - Square Type Push Button, Non-Flush, Illuminated, 22/25, Yellow, Normal Open, LED 12-24VDC/AC

Name: Autonics S2PRS-P3YAD - Square Type Push Button, Non-Flush, Illuminated, 22/25, Yellow, Normal Open, LED 12-24VDC/AC
Brand: Autonics
SKU: AutonicsS2PRS-P3YAD
Availability: InStock

0 reviews | Model: Autonics S2PRS-P3YAD

Compare

Square Type Push Button, Non-Flush, Illuminated, 22/25, Yellow, Normal Open, LED 12-24VDC/AC

Color: Yellow
Illuminated: Illuminated
Button type: Extended(illuminated)
Contact block: A contact: 1
Contact block type: Singular type

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S2PRS-P3YAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Yellow, Norma ...	Autonics S2PRS-P3YU SquareType Push Button (Non-Flush/Illuminated), 22/25, Yellow, Arrow M ...	Autonics S2PRS-P3WU SquareType Push Button (Non-Flush, Illuminated), 22/25, White, Arrow M ...	Autonics S2PRS-P3WAD Square Type Push Button, Non-Flush, Illuminated, 22/25, White, Normal ...	Autonics S2PRS-P3W SquareType Push Button (Non-Flush, Illuminated), 22/25, White, Head	Autonics S2PRS-P3RAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Red, Normal O ...	Autonics S2PRS-P3GAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Green, Normal ...	Autonics S2PRS-P3BU SquareType Push Button (Non-Flush, Illuminated), 22/25, Blue, Arrow Ma ...	Autonics S2PRS-P3BADM SquareType Push Button (Non-Flush, Illuminated), 22/25, Blue, Normal ...	Autonics S2PRS-P3BAD Square Type Push Button, Non-Flush, Illuminated, 22/25, Blue, Normal ...	Autonics S2PR-P3YALM Illuminated Push Button (Non-Flush), 22/25, Yellow, Normal Open, LED ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S2PR Series 22/25 mm Push Button Switches

S2PRS-P3YAD - Square Type Push Button, Non-Flush, Illuminated, 22/25, Yellow, Normal Open, LED 12-24VDC/AC

Color: Yellow
Illuminated: Illuminated
Button type: Extended(illuminated)
Contact block: A contact: 1
Contact block type: Singular type

The S2PR series round/square Ø22/25 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.

Order Information

Model	Contact block		LED block
Model	A contact	B contact	AC/DC voltage	AC voltage
S2PR(U)-P3☐AD	1	---	1	---
S2PR(U)-P3☐2AD	2	---
S2PR(U)-P3☐BD	---	1
S2PR(U)-P3☐2BD	---	2
S2PR(U)-P3☐ABD	1	1
S2PR(U)-P3☐AL	1	---	---	1
S2PR(U)-P3☐2AL	2	---
S2PR(U)-P3☐BL	---	1
S2PR(U)-P3☐2BL	---	2
S2PR(U)-P3☐ABL	1	1

※ ☐ indicates color: R, B, G, Y, W
※The control unit, control blocks, LED blocks are sold separately
(control unit: bold letters, contact block: regular letters)
※Control unit + contact block (modular type) models do not contain "PUSH" markings on the button cap.
※Models with 'U' in the model name is available only for control unit. 'U' models do not contains "PUSH" markings on the button cap.
※The LED color is the same as the control unit
※Waterproof cap (models: SA-WP) is available.

Dimensions

General Specifications
Contact block Electrical specification Power voltage/current	110VAC~/10A, 250VAC~/6A
LED block Power supply	12-24VAC~ 50/60Hz, 12-24VDC
LED block Current consumption	Max. 20mA
Protection structure	IP52
Weight Mounting hole Ø22/25	Approx. 15.5g
Weight Housing	Approx. 7g
Weight Contact block Singular type A/B contact	Approx. 11g
Weight LED block AC/DC voltage type	Approx. 11g
Illuminated	Illuminated
Letter marking	Marking(Push)
Button type	Extended(illuminated)
Color	Yellow
Contact block	A contact: 1
Contact block type	Singular type
Environment Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
