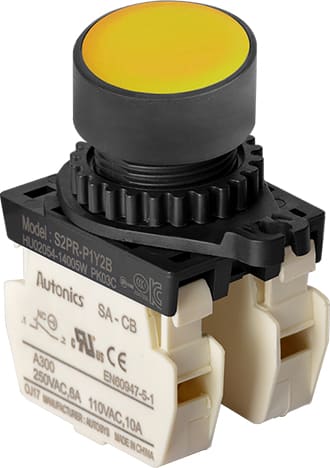

Autonics S2PR-P1Y2B 22/25 mm Push Button Switches - Yellow

Name: Autonics S2PR-P1Y2B 22/25 mm Push Button Switches - Yellow
Brand: Autonics
SKU: AutonicsS2PR-P1Y2B
Availability: InStock

0 reviews | Model: Autonics S2PR-P1Y2B

Compare

Non-Illuminated Push Button (Non-Flush), 22/25, Yellow, 2 Normal Close, 110VAC/10A,220VAC/5A

Yellow, 2 Normal Close, 110VAC/10A,220VAC/5A
Smooth operation
Long-lasting durability
High electrical conductivity

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Recommended for you

Autonics S2PR Series Ø22/25mm Push Button Switches

The S2PR series round/square Ø22/25 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.

Outstanding performance
Smooth operation
Long-lasting durability

● Dimensions

Specifications
Contact block_Electrical specification_Power voltage/current	110VAC~/10A, 250VAC~/6A
Protection structure	IP52(IP65 protection structure with waterproof cap for Ø22/25 round push button switches)
Approval	(LED blocks are except certifications)
Weight_Mounting hole_Ø22/25	Approx. 14.5g
Weight_Housing	Approx. 7g
Weight_Contact block_Modular type A/B contact	Approx. 11g
Illuminated	Non-illuminated
Letter marking	None(no printing)
Button type	Extended
Color	Yellow
Contact block	B contact: 2
Contact block type	Singular type
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH

※Environment resistance is rated no freezing or condensation.
※The control unit, contact blocks, LED blocks are sold separately.
※Waterptoof cap(model: SA-WP) is available.
