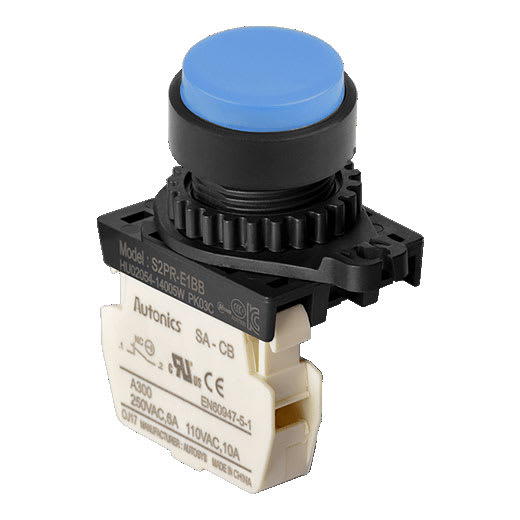

Autonics S2PR-E1BB - Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Blue, Normal Close, Singlular Type,110VAC/10A,220VAC/5A

Name: Autonics S2PR-E1BB - Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Blue, Normal Close, Singlular Type,110VAC/10A,220VAC/5A
Brand: Autonics
SKU: AutonicsS2PR-E1BB
Availability: InStock

0 reviews | Model: Autonics S2PR-E1BB

Compare

Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Blue, Normal Close, Singlular Type,110VAC/10A,220VAC/5A

Color: Blue
Illuminated: Non-illuminated
Button type: Extended button)
Contact block: B contact: 1
Contact block type : Singular type

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S2PR-E1BB Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Blue, No ...	Autonics S2PR-E1RB Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Red, Nor ...	Autonics S2PR-E1RA Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Red, Nor ...	Autonics S2PR-E1GB Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Green, N ...	Autonics S2PR-E1GA Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Green, N ...	Autonics S2PR-E1BA Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Blue, No ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S2PR Series 22/25 mm Push Button Switches

S2PR-E1BB - Non-Illuminated Push Button (Non-Flush), 22/25, Raised Button, Blue, Normal Close, Singlular Type,110VAC/10A,220VAC/5A

Color: Blue
Illuminated: Non-illuminated
Button type: Extended button)
Contact block:B contact: 1
Contact block type : Singular type

The S2PR series round/square Ø22/25 mm push button switches offer high electrical conductivity, outstanding performance and long-lasting durability.

Order Information

Model	Contact block		LED block
Model	A contact	B contact	AC/DC voltage	AC voltage
S2PR-E1☐A(M)	1	---	---	---
S2PR-E1☐2A(M)	2	---
S2PR-E1☐3A(M)	---	1
S2PR-E1☐B(M)	---	2
S2PR-E1☐2B(M)	---	3
S2PR-E1☐3B(M)	1	---
S2PR-E1☐AB(M)	1	1
S2PR-E1☐2AB(M)	2	1
S2PR-E1☐3AB(M)	1	2

※ ☐ indicates color: R, B, G, Y, W
※The M in the model name indicates modular type contact block. Models without M are singular contact block
※The control unit, control blocks, LED blocks are sold separately
(control unit: bold letters, contact block: regular letters)

Dimensions

General Specifications
Contact block Electrical specification Power voltage/current	110VAC~/10A, 250VAC~/6A
Protection structure	IP52(IP65 protection structure with waterproof cap for Ø22/25 round push button switches)
Approval
Weight Mounting hole Ø22/25	Approx. 14.5g
Weight Housing	Approx. 7g
Weight Contact block Singular type A/B contact	Approx. 11g
Illuminated	Non-illuminated
Letter marking	None(no printing)
Button type	Extended button
Color	Blue
Contact block	B contact: 1
Contact block type	Singular type
Environment Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
