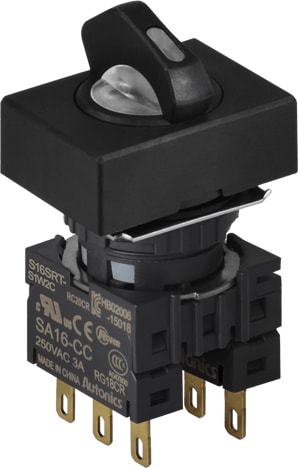

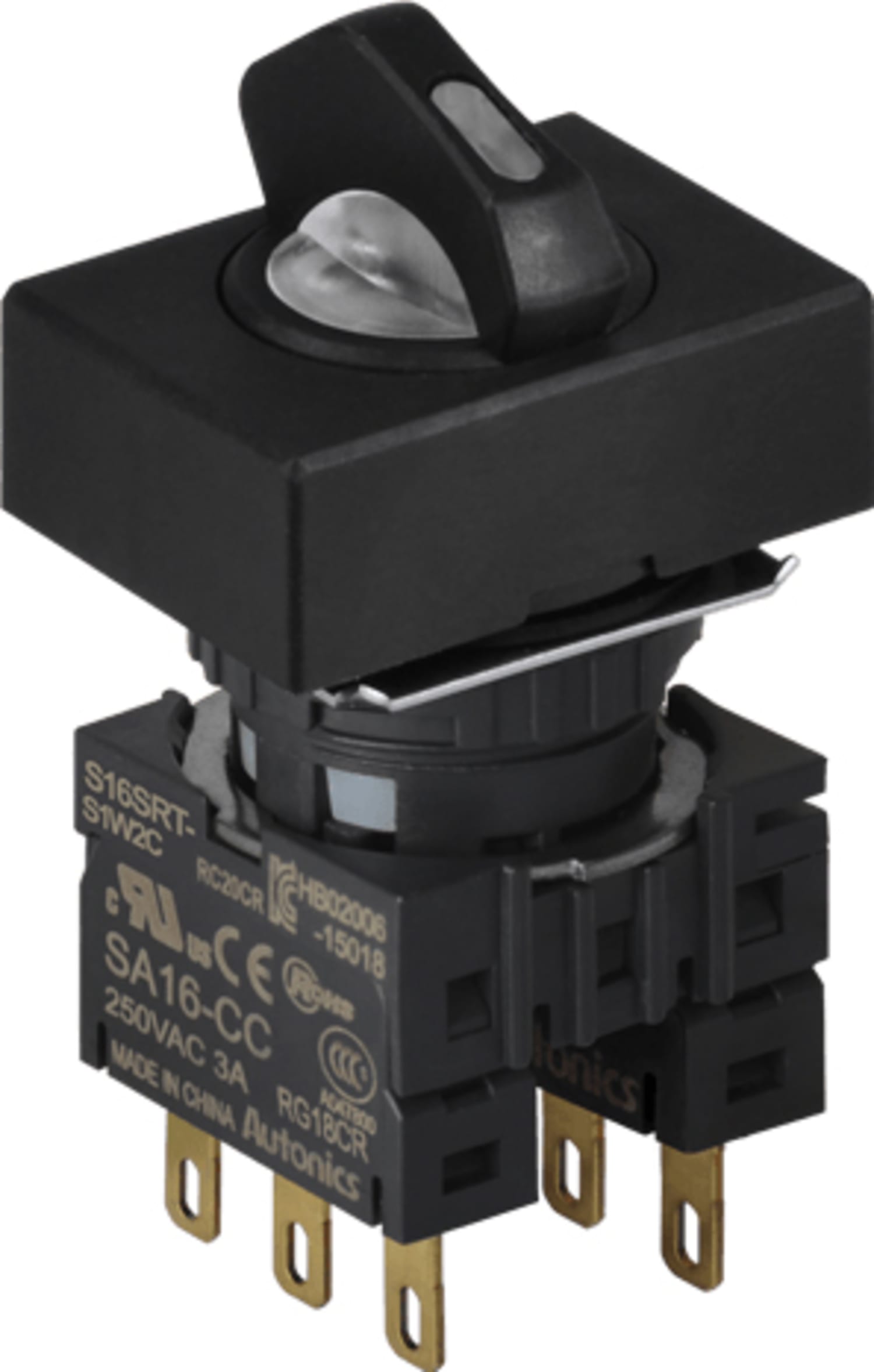

Autonics S16SRT-S5W2C - 16mm Rectangular Selector Switch with 2 PCS of SA16-CC, Non-Illuminated, 3-Position, Spring Return from Right, White

Name: Autonics S16SRT-S5W2C - 16mm Rectangular Selector Switch with 2 PCS of SA16-CC, Non-Illuminated, 3-Position, Spring Return from Right, White
Brand: Autonics
SKU: AutonicsS16SRT-S5W2C
Availability: InStock

0 reviews | Model: Autonics S16SRT-S5W2C

Compare

Seletor Switches Diameter 16 Rectangular Type, Non-Illuminated, 3 Positions, Spring Return, Right 45, White, 2 Normal Open Normal Close, S16SRT-S5W /w 2 PCS of SA16-CC

Contact block: C contact: 2
Operation type: 3-position, spring return from right
Non-Illuminated
Shape: Rectangular
Color: White
Compact, space-saving 16 mm installation diameter
Protection structure: IP65(IEC standard)
Short rear-length size of only 29.5 mm
Independent detachable contacts

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S16SRT-S5W2C Seletor Switches Diameter 16 Rectangular Type, Non-Illuminated, 3 Po ...	Autonics S16SRT-L1W Selector Switches Diameter 16 Rectangular Type, Illuminated, 2 Positio ...	Autonics S16SRT-L2W Seletor Switches Diameter 16 Rectangular Type, Illuminated, 2 Position ...	Autonics S16SRT-L3W Seletor Switches Diameter 16 Rectangular Type, Illuminated, 3 Position ...	Autonics S16SRT-L4W Seletor Switches Diameter 16 Rectangular Type, Illuminated, 3 Position ...	Autonics S16SRT-S1W Selector Switches Diameter 16 Rectangular Type, Non-Illuminated, 2 Pos ...	Autonics S16SRT-S2W Seletor Switches Diameter 16 Rectangular Type, Non-Illuminated, 2 Posi ...	Autonics S16SRT-S3W Seletor Switches Diameter 16 Rectangular Type, Non-Illuminated, 3 Posi ...	Autonics S16SRT-S4W Seletor Switches Diameter 16 Rectangular Type, Non-Illuminated, 3 Posi ...	Autonics S16SRT-S5W Seletor Switches Diameter 16 Rectangular Type, Non-Illuminated, 3 Posi ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S16SRT-S5W2C - 16mm Rectangular Selector Switch with 2 PCS of SA16-CC, Non-Illuminated, 3-Position, Spring Return from Right, White

Contact block: C contact: 2
Operation type: 3-position, spring return from right
Non-Illuminated
Shape: Rectangular
Color: White
Compact, space-saving 16 mm installation diameter

The Autonics S16SRT-S5W2C Selector Switch is ideal for installation in compact-sized equipment and panels. The 16 mm installation hole size, 29.5 mm protruding rear-length, and independent detachable contacts allow flexible installation in limited spaces. The S16SRT-S5W2C Selector Switch is non-illuminated and offers a 3-position, spring return from right operation type. It comes in a rectangular shape and white color. Two pieces of SA16-CC contact blocks are included.

Model: S16SRT-S5W2C Specifications
Mechanical characteristics_Operation angle	Left 45º , Right 45º
Contact block_Electrical specification_Power voltage/current	250VAC~/3A
Contact block_Mechanical specification_Terminal tensile force	Max. 30N
Contact block_Mechanical specification_Terminal soldering time	At the end of tips Within 3 sec With 350℃(30W: soldering machine)
Protection structure	IP65(IEC standard)
Approval	KC CE(IEC-60947-5-1) CULUS (LED blocks are except KC certifications)
Weight_Body	Approx. 6.6g
Weight_Housing	Approx. 1.4g
Weight_Contact block	Approx. 1.6g
Illuminated	Non-Illuminated
Operation type	3-position, spring return from right
Color	White
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH

* Environment resistance is rated no freezing or condensation.
* The control unit, contact blocks, LED blocks are sold separately.
* Connect up to 2 contact blocks. Connect the contact blocks only on the right and left side slots. It will not operate if connected to the center slot.

Tech Specs

Test Equipment General Attributes
Unique Features	Operation type: 3-position, spring return from right Non-Illuminated
Warranty	3 YEARS
Warranty Details	36 months from manufacturing date (Unless otherwise stated in catalog, manual, or other approved document).
Safety Approval	CE, UL
IP Rating	IP65
Product Weight	0.01 LBS
Shipping Weight	0.01 LBS
Country of Origin	Korea
