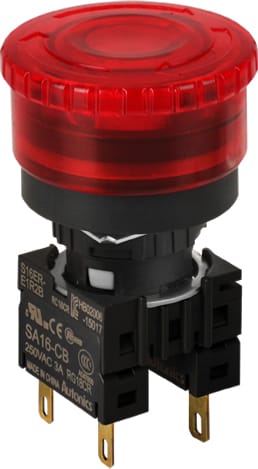

Autonics S16ER-E1R2B 16 mm Emergency Switch

Name: Autonics S16ER-E1R2B 16 mm Emergency Switch
Brand: Autonics
SKU: AutonicsS16ER-E1R2B
Availability: InStock

0 reviews | Model: Autonics S16ER-E1R2B

Compare

Emergency Stops Diameter 16, RED, Head Diameter 30 (Short Head, Non-Illuminated) Requires SA16-CB

Protection structure : IP65(IEC standard)
Operation type : Push-lock, Turn/Pull-reset
Illuminated : D30(short head, non-illuminated)
Color : Red
Contact block : B contact: 2

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics S16ER-E1R2B Emergency Stops Diameter 16, RED, Head Diameter 30 (Short Head, Non-I ...	Autonics S16ER-E1R Emergency Stops 6, RED, Head 30 (Short Head, Non-Illuminated)Requires S ...	Autonics S16ER-E3R Emergency Stops 6, RED, Haed 30(Short Head, Illuminated)
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics S16ER-E1R2B 16 mm Emergency Switch

Operation type: Push-lock, Turn/Pull-reset
Illuminted: Non-illuminated
Color: Red
Contact block : B contact: 2
Protection structure : IP65(IEC standard)

The Autonics S16ER series emergency switches are ideal for installation in compact-sized equipment and panels. The 16 mm installation hole size, 29.5 mm protruding rear-length, and independent detachable contacts allow flexible installation in limited spaces. Illuminated and non-illuminated button head types are available.

Model: S16ER-E1R2B Specifications
Contact block_Electrical specification_Power voltage/current	250VAC~/3A
Protection structure	IP65(IEC standard)
Approval	KCCE (IEC-60947-5-1) CULUS(LED blocks are except certifications)
Weight_Body	Approx. 11.5g
Weight_Housing	Approx. 1.4g
Weight_Contact block	Approx. 1.6g
Operation type	Push-lock, Turn/Pull-reset
Illuminated	D30(short head, non-illuminated)
Color	Red
Contact block	B contact: 2
Environment_Ambient temperature	-15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
