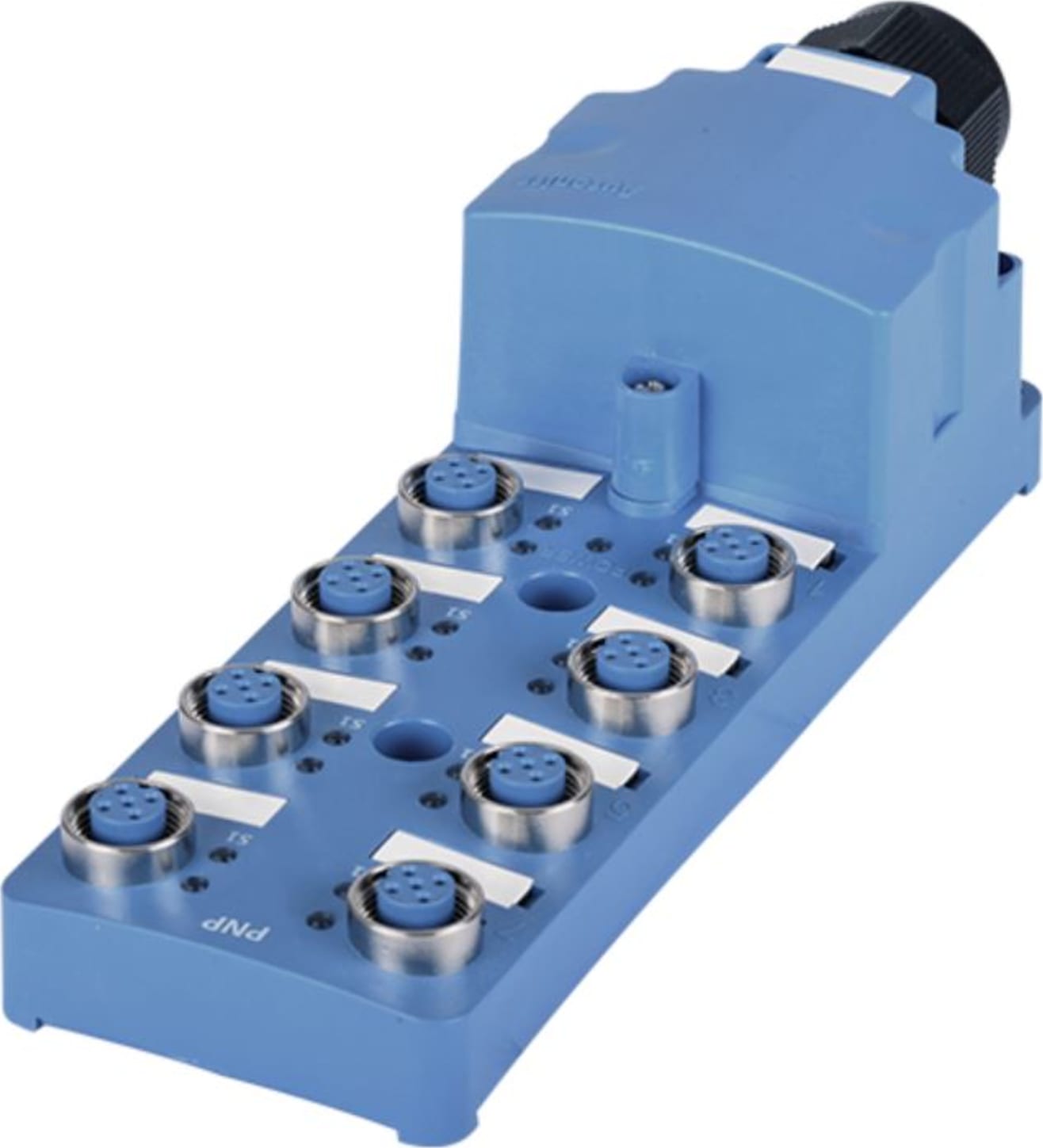

Autonics PT8-P3DP5 Sensor Distribution Box (M12 5-Pin Connector Type)

Name: Autonics PT8-P3DP5 Sensor Distribution Box (M12 5-Pin Connector Type)
Brand: Autonics
SKU: AutonicsPT8-P3DP5
Availability: InStock

0 reviews | Model: Autonics PT8-P3DP5

Compare

Connection Box, 8 Connector, Female, Plug Screw Terminal Type, DC 3 Wire(1 Signal), PNP, 5 Pin, Blue

Sensor Distribution Box (M12 5-Pin Connector Type)
Number of ports: 8-port
Input logic: PNP
Output specification: 1-signal (DC 3-wire type)
Power supply: 12-24VDC
Rated current: 2A(per signal), 2A (per port), 7A (total)
Hood cover: Including hood cover
Protection structure: IP67 (waterproof cover), IP52 (protection cover)
Approval: CE
5-pin M12 connector types (cable/connector/spring terminal/plug-in terminal)
Supply power to multiple sensors using a single power supply
Simplify complicated wiring and maintenance work
Check operation status with LED indicators (green, red LED)
Supports 1-signal, 2-signal (DC 4-wire type)
IP67 protection structure with waterproof cover (IEC standard)
IP52 protection structure with protection cover (IEC standard)
New 5-pin M12 connector spring terminal and plug-in terminal types (black/blue) have been added to the line-up.

View Product Details

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Call Us

Request Quote

Items in This Series



Product	Autonics PT8-P3DP5 Connection Box, 8 Connector, Female, Plug Screw Terminal Type, DC 3 Wir ...	Autonics PT6-3DN Connection Box, 6 Connector, Female, DC 3 Wire, NPN, 5 Meter Cable	Autonics PT4-3DN Connection Box, 4 Connector, Female, DC 3 Wire, NPN, 5 Meter Cable	Autonics PT6-2D Connection Box, 6 Connectors, Female, 2 Wire DC, 5 Meter Cable	Autonics PT8-3DN Connection Box, 8 Connector, Female, DC 3 Wire, NPN, 5 meter Cable	Autonics PT4-3DP Connection Box, 4 Connector, Female, DC 3 Wire, PNP, 5 Meter Cable	Autonics PT6-3DP Connection Box, 6 Connector, Female, DC 3 Wire, PNP, 5 Meter Cable	Autonics PT8-3DP Connection Box, 8 Connector, Female, DC 3 Wire, PNP, 5 Meter Cable	Autonics PT8-P3DP5K Connection Box, 8 Connector, Female, Plug Screw Terminal Type, DC 3 Wi ...	Autonics PT8-P3DN5K Connection Box, 8 Connector, Female, Plug Screw Terminal Type, DC 3 Wi ...	Autonics PT8-P3DN5 Connection Box, 8 Connector, Female, Plug Screw Terminal Type, DC 3 Wir ...	Autonics PT4-P3DP5 Connection Box, 4 Connector, Pluggable Screw Terminal Type, DC 3 Wire(1 ...	Autonics PT4-S3DP5 Connection Box, 4 Connector, Spring Termianl Type, DC 3 Wire(1 Signal), ...	Autonics PT4-S3DN5 Connection Box, 4 Connector, Spring Termianl Type, DC 3 Wire(1 Signal), ...	Autonics PT8-2D Connection Box, 8 Connector, Female, DC 2 Wire, 5 meter Cable
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PT8-P3DP5 Sensor Distribution Box (M12 5-Pin Connector Type)

PT (5-Pin Connector) Series

Number of ports: 8-port
Input logic: PNP
Output specification: 1-signal (DC 3-wire type)
Power supply: 12-24VDC
Rated current: 2A(per signal), 2A (per port), 7A (total)
Hood cover: Including hood cover
Protection structure: IP67 (waterproof cover), IP52 (protection cover)

The PT series 5-pin M12 connector sensor distribution boxes offer flexibility for installing multiple sensors in various applications. With 4, 6, and 8 ports, the distribution boxes can supply power and receive signals for sensors using M12 connectors. The PT series can simplify complicated wiring and ease maintenance work. Operation status can be easily checked using power and operation indicators (red, green LED).

5-Pin M12 Connector Type (Plug-In Terminal Type) PT-P Series:

Ordering Information:

Model: PT8-P3DP5 Specifications
Number of ports	8-port
Input logic	PNP
Output specification	1-signal (DC 3-wire type)
Power supply	12-24VDC
Rated current	2A(per signal), 2A(per port), 7A(total)
Connection life cycle	Min. 200 operations
Number of M12 connector pins	5-pin
Case color	Blue
Hood cover	Including hood cover
Protection structure	IP67(waterproof cover), IP52(protection cover)
Approval	CE
Connection method for external signal	Pluggable screw terminal type
Material	Case: Polybutylene terephthalate (G15%), Name plate: Polycarbonate, Cover: Polybutylene terephthalate(G15%), Cover nut: Polyamide 6 (G15%)
Environment Ambient temperature	-25 to 75, storage: -30 to 80
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 334g (approx. 210g)
