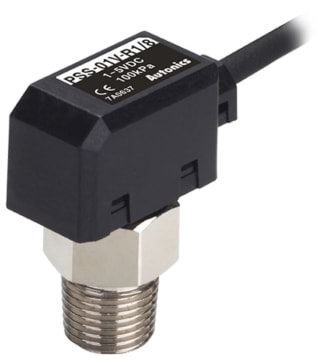

Autonics PSS-01V-R1/8 Compact Non-Indicating Pressure Sensor

Name: Autonics PSS-01V-R1/8 Compact Non-Indicating Pressure Sensor
Brand: Autonics
SKU: AutonicsPSS-01V-R1/8
Price: 96.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Autonics PSS-01V-R1/8

Compare

Sensor, Air, Non-corrosive Gas, Standard Pressure, 0 to 100kPa, 1-5VDC Output, 12-24VDC Power, R1/8 inch, 3m Cable Type

Compact Non-Indicating Pressure Sensor
Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
Pressure port: R1/8
Connection type: Cable type (cable type cable: 3m)
Pressure type: Standard pressure
Rated pressure range: 0.0 to 100.0kPa
Power supply: 12-24VDC ±10% (ripple P-P: max. 10%)
Current consumption: Max. 15mA
Protection structure: IP40
Rated pressure range
- Negative pressure (0kPa to -101.3kPa)
- Positive pressure (0kPa to 100.0kPa/0kPa to 1000kPa)
- Compound pressure (-101.3kPa to 100kPa)
Compact size: W11.8mm×H29.3mm×L24.8mm (with pressure port)
Analog output: voltage (1-5VDC), current (DC 4-20mA)
Approval: CE

View Product Details

Your Price: $96.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PSS-01V-R1/8 Sensor, Air, Non-corrosive Gas, Standard Pressure, 0 to 100kPa, 1-5V ...	Autonics PSS-1V-R1/8 Sensor, Standard Pressure, 0-1Mpa, 1-5VDC Output, 12-24VDC Power, R1/ ...	Autonics PSS-V01A-R1/8 Sensor, Air, Non-corrosive Gas, Negative Pressure, 0 to 100kPa, Cur ...	Autonics PSS-1A-R1/8 Sensor, Air, Non-corrosive Gas, Standard Pressure, 0 to 1000kPa, Curr ...	Autonics PSS-01A-R1/8 Sensor, Air, Non-corrosive Gas, Standard Pressure, 0 to 100kPa, Curr ...	Autonics PSS-C01A-R1/8 Sensor, Pressure, W11.8 X H29.3 X L24.8mm, Compound Pressure Type, ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PSS-01V-R1/8 Compact Non-Indicating Pressure Sensor

PSS Series Analog Pressure Sensor

Applicable fluid: (Pneumatic type) Air, Non-corrosive gas
Pressure port: R1/8
Connection type: Cable type (cable type cable: 3m)
Pressure type: Standard pressure
Rated pressure range: 0.0 to 100.0kPa
Power supply: 12-24VDC ±10% (ripple P-P: max. 10%)
Current consumption: Max. 15mA
Protection structure: IP40

The PSS series analog pressure sensors feature rectangular design with compact sizes (W 11.8 mm x H 29.3 mm x L 24.8 mm, including pressure port). The pressure sensors are available in analog voltage and analog current models and can be connected directly to HMIs, PCs, and PLCs from various brands. With a wide rated pressure range, the PSS series sensors can be applied in various pressure related applications.

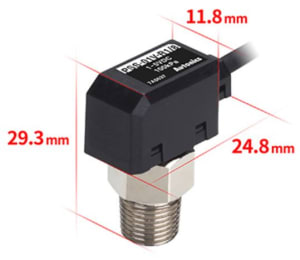

Compact Sized Sensors

The compact-sized sensors (W11.8mm×H29.3mm×L24.8mm, including pressure port) can be installed in limited spaces.

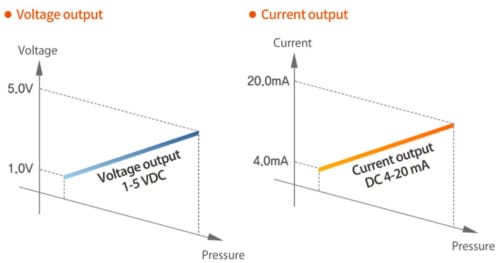

Analog Outputs

The series is available in DC 4-20mA current output and 1-5VDC voltage output models.

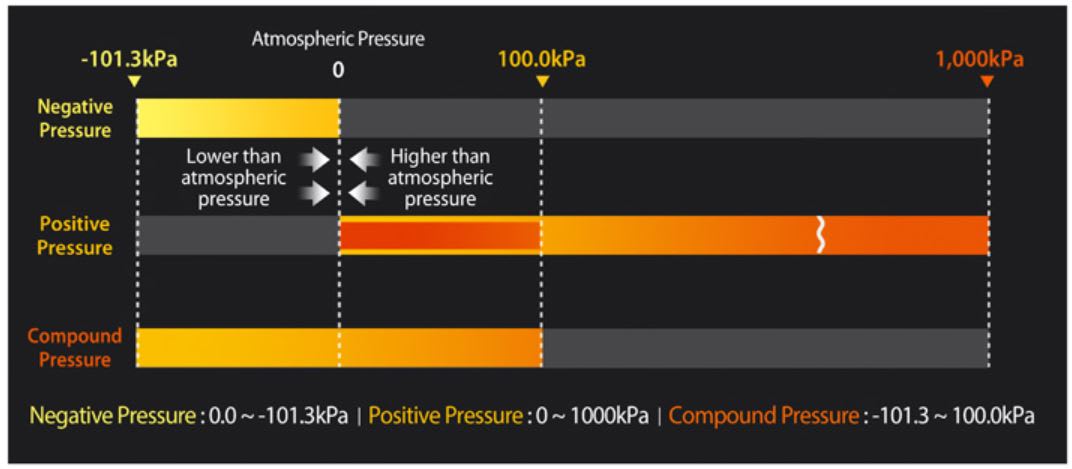

Pressure Measurement Range (Negative, Standard, Compound)

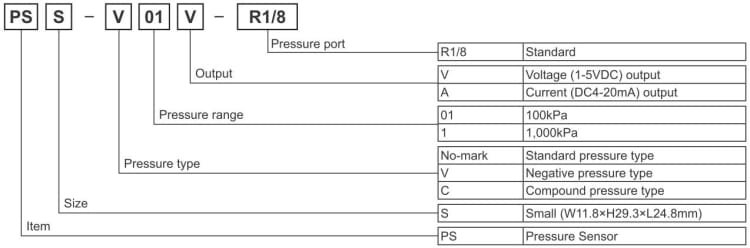

Ordering Information:

Model: PSS-01V-R1/8 Specifications
Applicable fluid	(Pneumatic type) Air, Non-corrosive gas
Pressure port	R1/8
Connection type	Cable type(cable type cable: 3m)
Pressure type	Standard pressure
Rated pressure range	0.0 to 100.0kPa
Option output	Voltage(1-5VDC ) output
Power supply	12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption	Max. 15mA
Protection structure	IP40
Approval	CE
Material	Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
Environment Ambient temperature	0 to 50°, storage: -10 to 60°
Environment Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Sold separately	Sensor connector wire mount plug(CNE-P04-YG)
Weight	Approx. 60g(approx. 26g)

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Great product

5.0

The company needed a way to remotely monitor the pressure on a system. This product worked great. Now we can check the system pressure from anywhere in the country.

Anonymous on Mar 17, 2022
