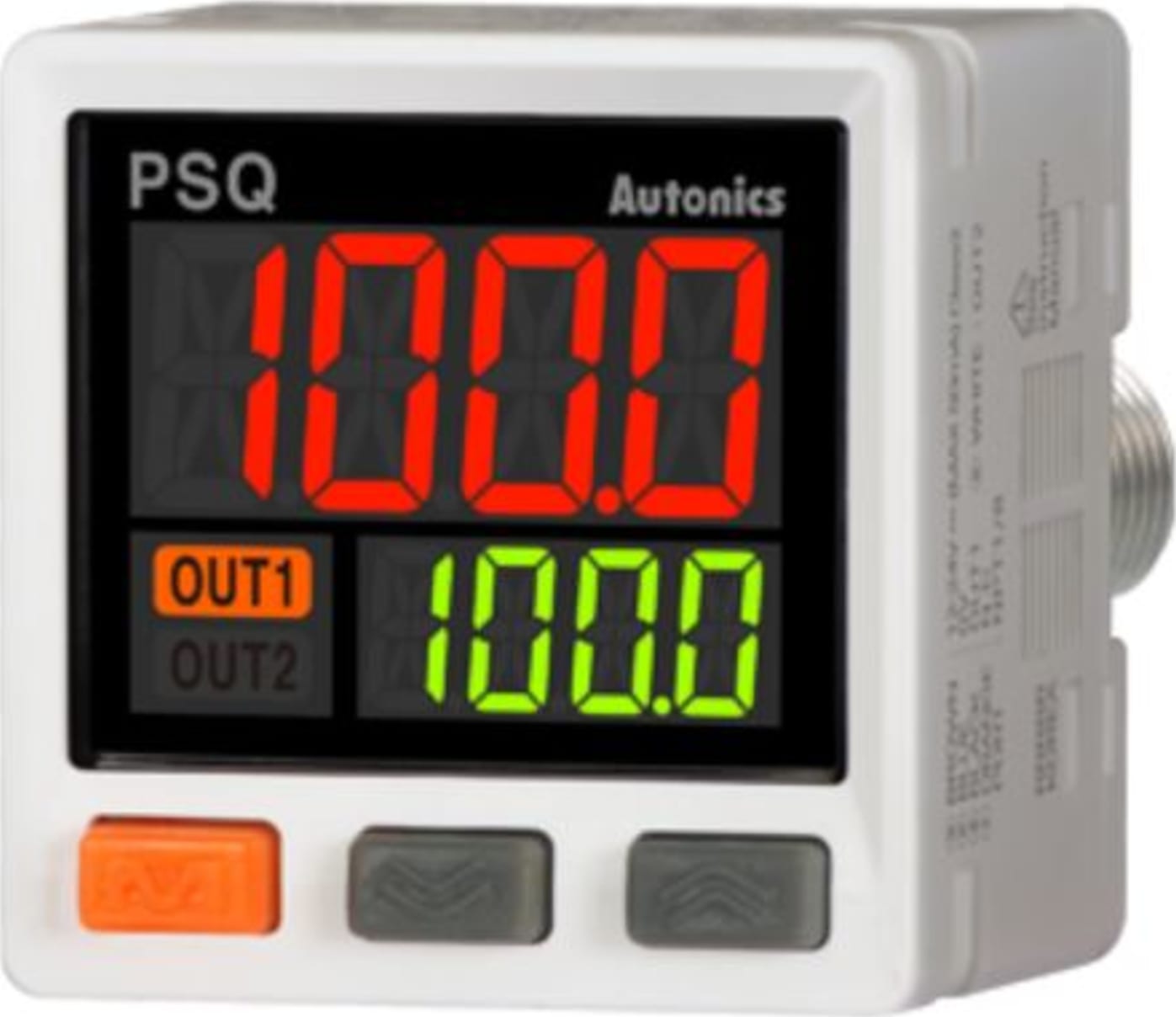

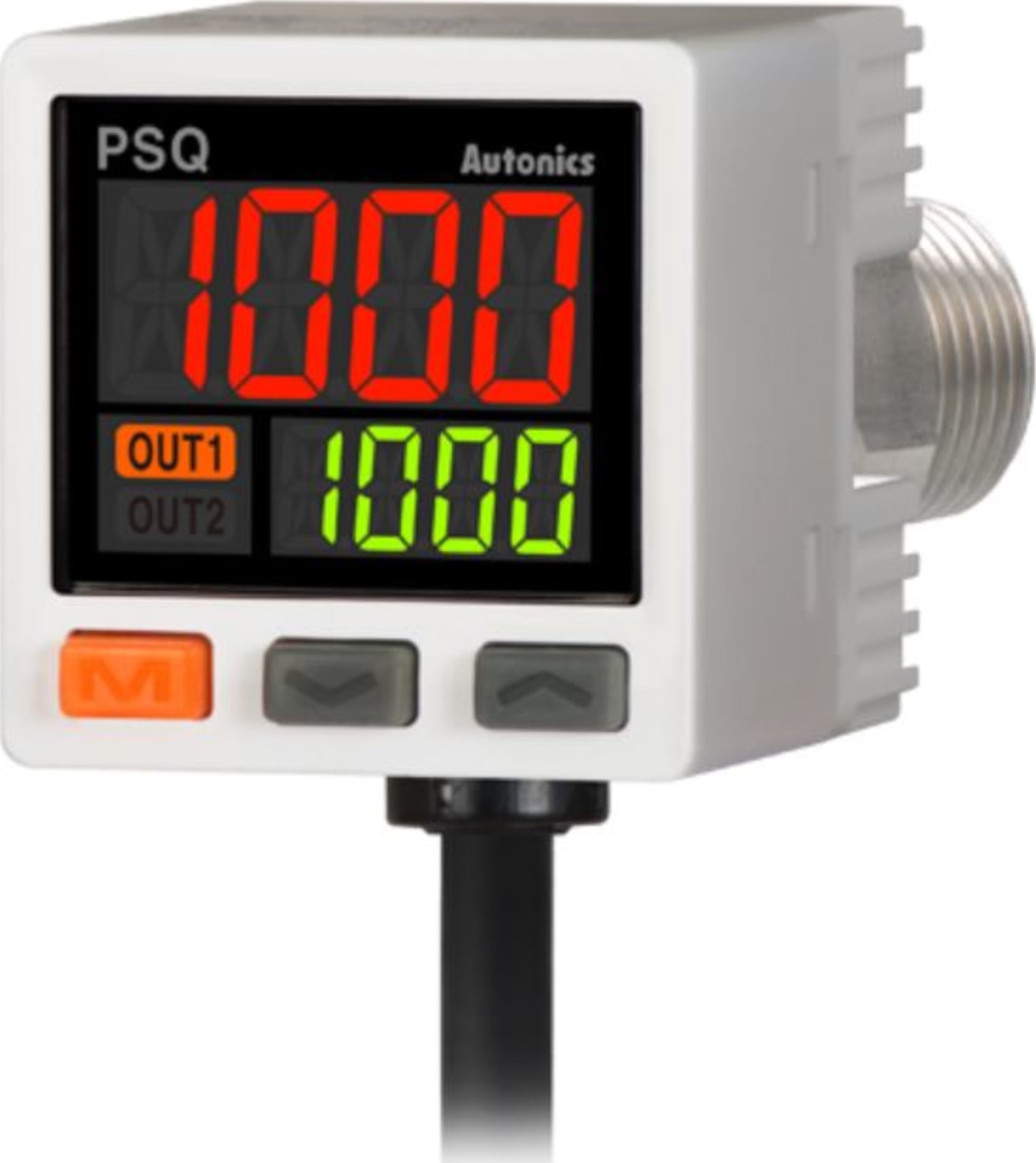

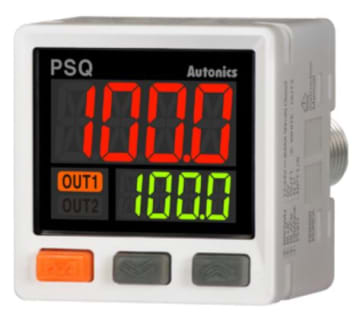

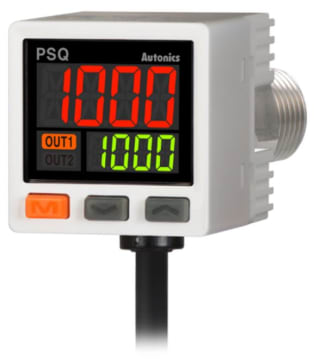

The PSQ series dual digital display pressure sensors can simultaneously display PV and SV for easier status readings. The 12-segment LCD display is capable of displaying various alphanumeric characters for clear identification, and the main (PV) display can be displayed in 3 different colors depending on status or configuration. Installation and configuration of multiple sensors is made easy with the copy parameter settings function and users can switch between NPN and PNP open collector output options through parameter configuration settings.

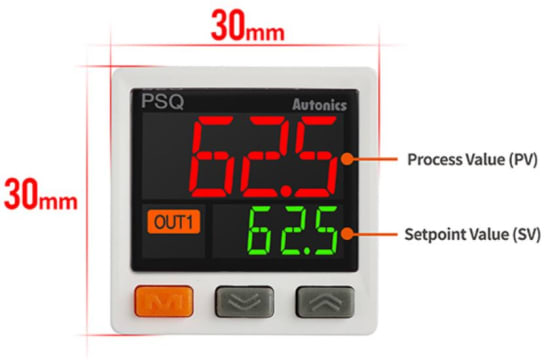

Simultaneously Display Process Value (PV) and Setpoint Value (SV)
The compact sized (30mm×30mm) pressure sensors feature a dual display screen capable of simultaneously displaying process value (PV) and setpoint value (SV).

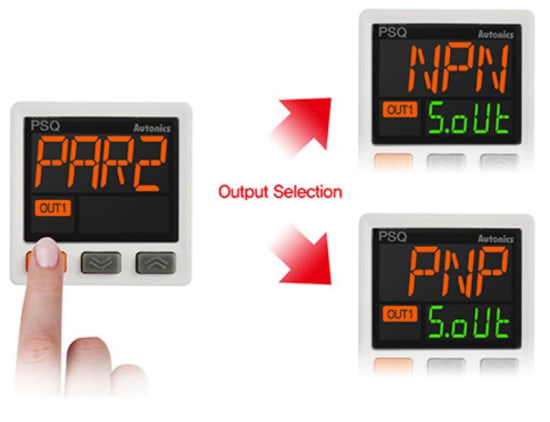

Switch Between NPN and PNP Open Collector Outputs With Parameter Settings
Users can easily switch between NPN open collector output and PNP open collector output by simply selecting the desired output option in parameter settings.

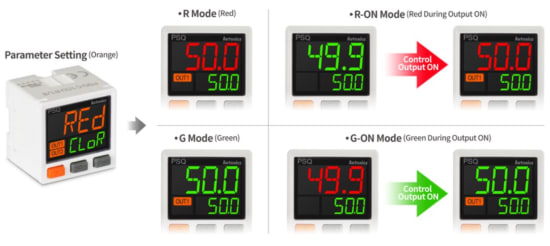

3-Color main (PV) Display
The PSQ series features a 3-color main display for clear status identification (RUN mode: green/red, parameter setting mode: orange).
Users can choose between four color modes for the PV display. (R Mode, G Mode, R-ON Mode, G-ON Mode). The main display will always be displayed in orange during parameter configuration or while copying parameter settings.

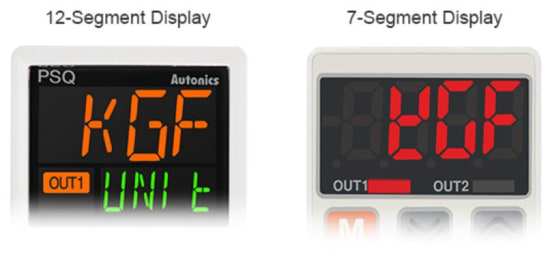

12-Segment LCD Display
The 12-segment display is capable of displaying alphanumeric characters offering better legibility.

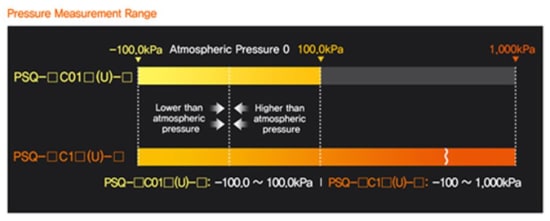

Compound Pressure Measurement (Pneumatic Type) Including Negative and Standard Pressure/Sealed Gauge Pressure Measurement (Fluid Type)
The sensors offer a wide compound pressure measurement range of - 100.0 to 100.0 kPa for measurement of negative or positive pressure with a single unit. The fluid type models are capable of measuring sealed gauge pressure.

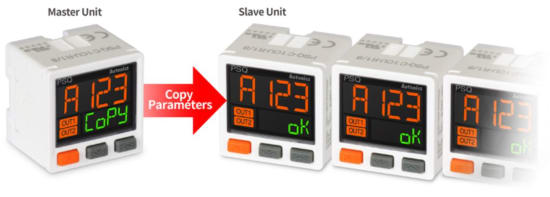

Copy Parameter Settings Function
The parameter settings from the master unit can be copied directly to a slave unit, reducing time for configuration when multiple sensors with identical settings are required (master and slave unit must be identical models).

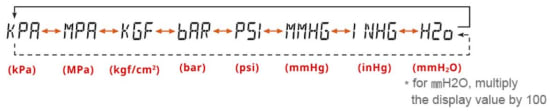

Supports 8 Types of Pressure Unit
The sensors support 8 types of pressure units including MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, and mmH2O.

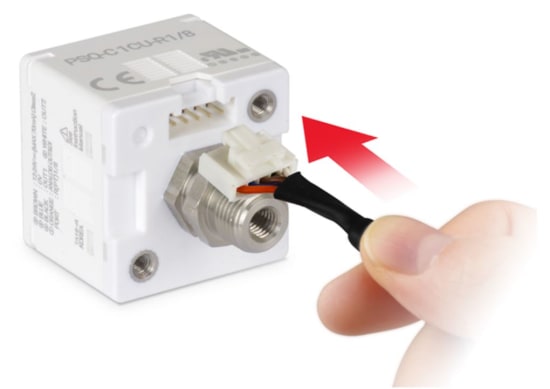

One-Touch Connector Wiring
The one-touch, push-to connect wiring allows easier connection and maintenance.
