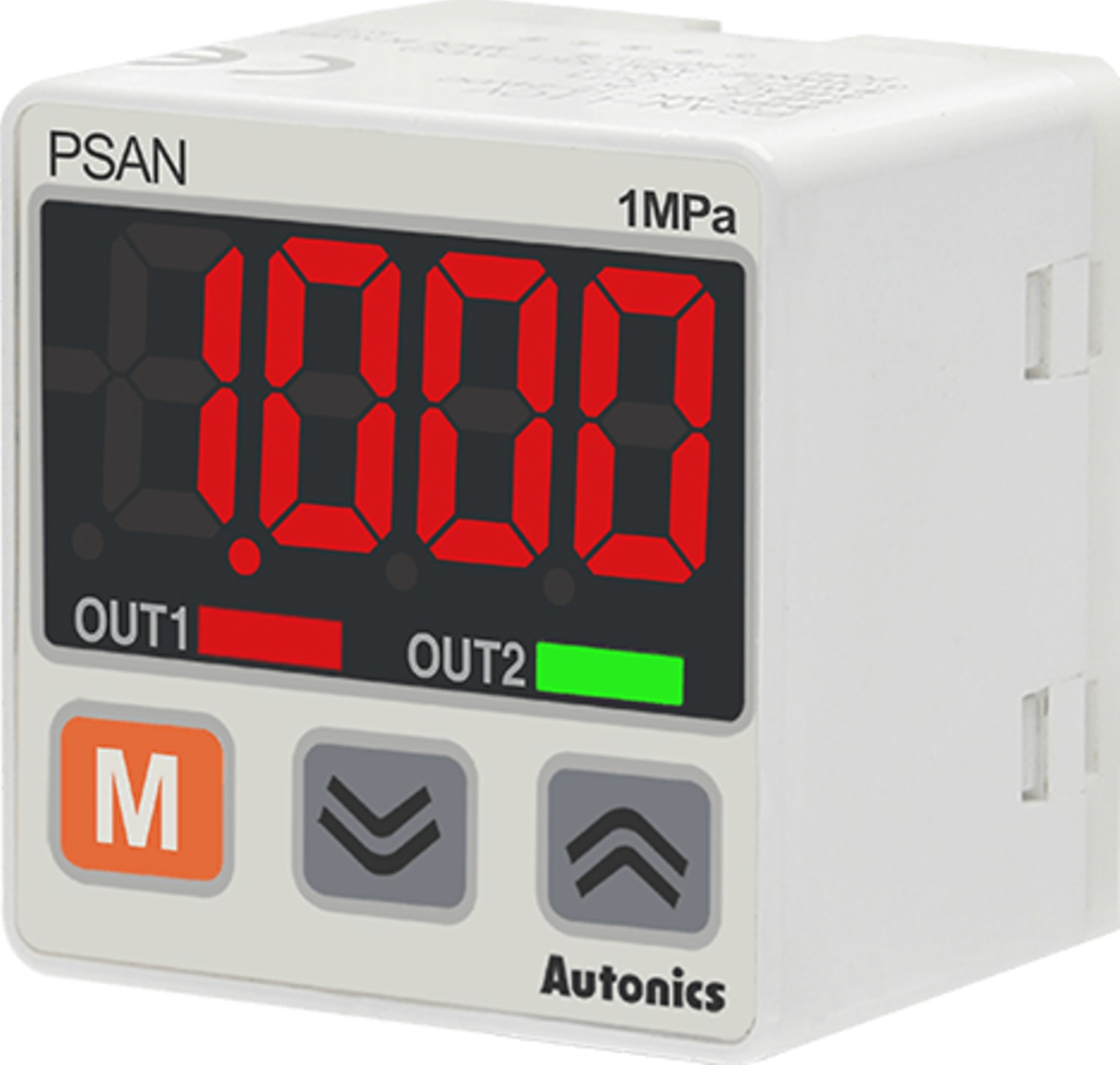

| PSAN Series General Specifications |
| Pressure type |
Gauge pressure |
| Negative pressure |
Standard pressure |
Compound pressure |
| Model*1 |
Voltage(1-5VDC) output |
PSAN-(L)V01C(P)V-□ |
PSAN-(L)01C(P)V-□ |
PSAN-(L)1C(P)V-□ |
PSAN-(L)C01C(P)V-□ |
| Current(DC4-20mA) output |
PSAN-(L)V01C(P)A-□ |
PSAN-(L)01C(P)A-□ |
PSAN-(L)1C(P)A-□ |
PSAN-(L)C01C(P)A-□ |
| Hold/Auto shift input |
PSAN-(L)V01C(P)H-□ |
PSAN-(L)01C(P)H-□ |
PSAN-(L)1C(P)H-□ |
PSAN-(L)C01C(P)H-□ |
| Rated pressure range |
0.0 to -101.3kPa |
0.0 to 100.0kPa |
0 to 1,000kPa |
-101.3kPa to 100.0kPa |
| Display pressure range |
5.0 to -101.3kPa |
-5.0 to 110.0kPa |
-50 to 1,100kPa |
-101.3kPa to 110.0kPa |
| Max. pressure range |
2 times of rated pressure |
2 times of rated pressure |
1.5 times of rated pressure |
2 times of rated pressure |
| Min.display unit |
0.1kPa |
0.1kPa |
1kPa |
0.1kPa |
| Applied vapor |
Pneumatic type - Air, Non-corrosive gas |
| Applied fluid |
Fluid type - Air, Non-corrosive gas and fluid that will not corrode SUS316L |
| Power supply |
12V-24VDC ±10%(ripple P-P:Max. 10%) |
| Current consumption |
Max. 50mA(Analog Current Output type Max 75mA) |
| Control output |
NPN or PNP open collector output:
Load voltage: Max. 30VDC
Load current: Max. 100mA
Residual voltage - NPN: Max. 1V
Residual voltage - PNP: Max. 2V |
| Hysteresis*2 |
Min. display range |
| Repeat error |
±0.2%F.S. ± Min. display range |
| Response time |
Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms |
| Short circuit protection |
Built-in |
| Analog output*3 |
Voltage output |
Output voltage: 1-5VDC ±2% F.S.
Linear: Within ±1% F.S.
Output impedance: 1kΩ
Zero point: Max. 1VDC ±2% F.S.
Span: Max. 4VDC ±2% F.S.
Response time: 50ms
Resolution: Automatically changed to 1/1000 or 1/2000 by display unit |
| Current output |
Output current: DC4-20mA ±2%
Linear: Max. ±1% F.S.
Zero-point: Max. DC4mA ±2% F.S.
Span: Max. DC16mA ±2% F.S.
Response time:70ms
Resolution: Automatically changed to 1/1000 or 1/2000 by display unit |
| Display digit |
4½digit |
| Display method |
7 segment LED Display |
| Display accuracy |
0°C to 50°C : Max. ±0.5% F.S., -10 to 0°C : Max. ±1% F.S. |
| Dielectric strength |
1000VAC 50/60Hz for 1 minute |
| Insulation resistance |
Min. 50MΩ(at 500VDC megger) |
| Vibration |
1.5mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z direction for 2 hours |
| Environment |
Ambient temperature |
-10 to 50°C, storage : -20 to 60°C |
| Ambient humidity |
30 to 80%RH, storage :30 to 80%RH |
| Protection |
IP40(IEC specification) |
| Material |
Pneumatic type - Front case: PC, Rear case: PC, Pressure port: Nickel Plated Brass
Fluid type - Front case: PC, Rear case: PA6, Pressure port: SUS316L |
| Cable |
Connector cable (ø4, 5-wire, Length: 3m)
(AWG 24, Core diameter : 0.08mm, Number of cores : 40, Insulator out diameter: ø1mm) |
| Approval |
CE |
| Weight*5 |
Pneumatic type - Approx. 165g(Approx. 80g)
Fluid type - Approx. 173g(Approx. 88g) |
*1: For '(L)', '(P)', ' □ ' of model name, refer to ' ▣ Ordering information'.
*2: In hysteresis output mode, detection difference is variable.
*3: It is allowed to select one analog output type only.
*4: Resolution(1000/2000) of min. Display interval is automatically selected depend on pressure units.
*5:This weight is with packaging and the weight in parentheses is only unit weight.
*F.S. : Rated pressure.
*There may be ±1 digit error in hysteresis by pressure unit calculation error.
*Environment resistance is rated at no freezing or condensation. |
