Autonics PRW Series Cylindrical Cable Outgoing Connector Type Proximity Sensor
|
|

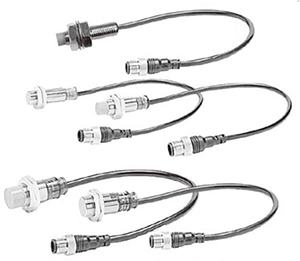

The PRW series inductive proximity sensors feature solid sensing performance and excellent noise immunity with a specialized sensor IC developed by Autonics. The cable connector type sensors offer easier maintenance and wiring work. Available in various sizes and sensing distances, the standard cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects. The PRW series is available in DC 2-wire, DC 3-wire, AC 2-wire types. |
Dimensions

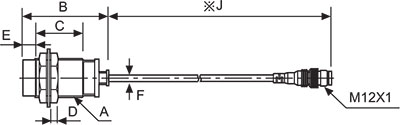

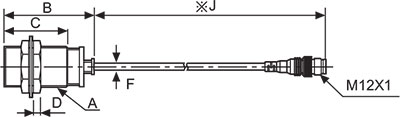

• Cylindrical Type AC 2Wire
| Cable Type |
| Flush |
|
|
|
| Non-Flush |
|
|
| Cable Connector Type |
| Flush |
|
|
| Non-Flush |
|
*For 'J' type, standard of cable type is 2,000mm and standard of cable connector type is 300mm.
• Cylindrical Type DC 2Wire
| Type |
Cable outgoing type |
Cable outgoing connector type |
Connector type |
Cable outgoing type |
| PRT(M8, M12, M18, M30) |
PRWT(M8, M12, M18, M30) |
PRCMT(M12, M18, M30) |
PSNT17 |
| Flush |
|
|
|
|
| Non-Flush |
|
|
|
|
| Nuts & Washer |
|
|
|

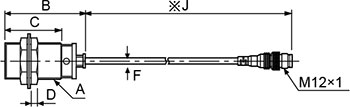

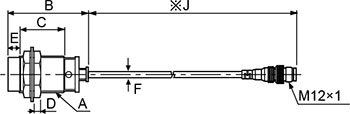

• Cylindrical Type DC 3Wire
| Type |
Cable outgoing type |
Cable outgoing connector type |
Nuts & Washer |
| M8, M12, M18, M30 |
M8, M12, M18, M30 |
| Flush |
|
|
|
| Non-Flush |
|
|

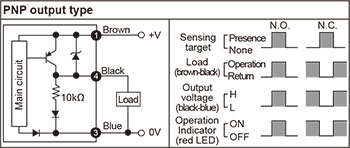

Control Output Diagram
|

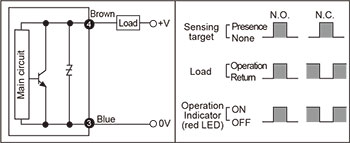

• DC 2-wire type
|

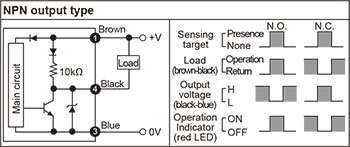

• DC 3-wire type
|
|

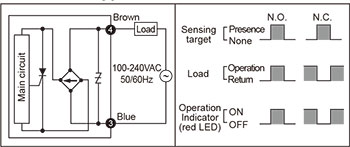

• AC 2-wire type
|
| *The number in a circle is pin no. of connector. |
Wiring Diagram
|
• DC 2-wire type(Standard type)
|
• DC 2-wire type(IEC standard type)
|
|
|
|
|
*Pin 1, 2 are not used terminals.
*When using DC 3-wire type of connector cable, black(12-24VDC) and blue(0V) cables can be used.
|
*2,3 of N.O. type and 3,4 of N.C. type are not used terminals.
*The type, pin arrangment of connector based upon IEC standard is being developed.
*Please put "I" behind of standard type for purchasing IEC standard product. Ex)PRWT12-4DO-I
*Please put "I" behind of model name for selecting proximity sensor by IEC standard. Ex)CID2-2-I, CLD2-2-I |
|
• DC 3-wire type
|
• AC 3-wire type
|
|
|
|
*Please fasten the cleat of connector not to shown the thread. (0.39 to 0.49N.m)
*Please fasten the vibration part with Teflon tape.
*Refer to the G-6 for IEC standard connector cables and specifications. |
*In case of AC switching type, 2 and 3, 1 and 4 are connected to each other inside. |
Proper Usage

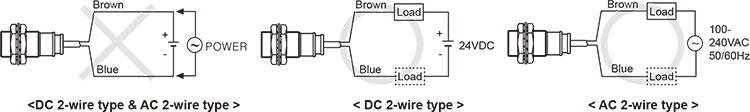

• Load connections
When using DC or AC 2-wire type proximity sensor, the load must be connected otherwise internal components may be damaged. The load can be connected to either wire.
• In case of the load current is small
|
AC 2-wire type
|
It may cause return failure of load by residual voltage. If the load current is under 5mA, please make sure the residual voltage is less than the return voltage of the load by connecting a bleeder resistor in parallel with the load as shown in the diagram.
[ I:Action current of load, R:Bleeder resistance, P:Permissible power]
|
|
|
|
DC 2-wire type
|
Please make the current on proximity sensor smaller than the return current of load by connecting a bleeder resistor in parallel.
*W value of Bleeder resistor should be bigger for proper heat dissipation.
|
|
|
Mutual-interference & Influence by surrounding metals
When several proximity sensors are mounted close to one another a malfunction of the may be caused due to mutual interference. Therefore, be sure to keep a minimum distance between the two sensors as below chart indicates.
When sensors are mounted on metallic panel, it is required to protect the sensors from being affected by any metallic object except target. Therefore, be sure to provide a minimum distance as below chart indicates.
