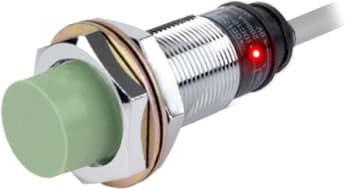

Autonics PRT12-4DO-5M Cylindrical Type Proximity Sensor

Name: Autonics PRT12-4DO-5M Cylindrical Type Proximity Sensor
Brand: Autonics
SKU: AutonicsPRT12-4DO-5M
Price: 36.95 USD
Availability: InStock

0 reviews | Model: Autonics PRT12-4DO-5M

Compare

Sensor, Inductive Prox, 12mm Round, Non-Shielded, DC, NO, 2 Wire,5m cable, 15-30 VDC

5m cable
DC 2-wire type
12mm round
Non-shielded
15-30 VDC
Improved the noise immunity with dedicated IC
Built-in surge protection circuit
Built-in output short over current protection circuit (DC type)
Long life cycle and high reliability and simple operation
IP67 protection structure (IEC standard)
Replaceable for micro switches and limit switches

View Product Details

Your Price: $36.95

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PRT12-4DO-5M Sensor, Inductive Prox, 12mm Round, Non-Shielded, DC, NO, 2 Wire,5m ...	Autonics PR08-1.5DN Sensor, Inductive Prox, 1.5mm Sensing, M8 Round, Shielded, NPN NO, 3 W ...	Autonics PR08-1.5DP Sensor, Inductive Prox, 1.5mm Sensing, M8 Round, Shielded, PNP NO, 3 W ...	Autonics PR08-1.5DN2 Sensor, Inductive Prox, 1.5mm Sensing, M8 Round, Shielded, NPN NC, 3 ...	Autonics PR08-1.5DP2 Sensor, Inductive Prox, 1.5mm Sensing, M8 Round, Shielded, PNP NC, 3 ...	Autonics PR08-2DN Sensor, Inductive Prox, 2mm Sensing, M8 Round, Non-Shielded, NPN NO, 3 W ...	Autonics PR08-2DP Sensor, Inductive Prox, 2mm Sensing, M8 Round, Non-Shielded, PNP NO, 3 W ...	Autonics PR08-2DN2 Sensor, Inductive Prox, 2mm Sensing, M8 Round, Non-Shielded, NPN NC, 3 ...	Autonics PR08-2DP2 Sensor, Inductive Prox, 2mm Sensing, M8 Round, Non-Shielded, PNP NC, 3 ...	Autonics PR12-2DN Sensor, Inductive Prox, 2mm Sensing, M12 Round, Shielded, NPN NO, 3 Wire ...	Autonics PR12-2DP Sensor, Inductive Prox, 2mm Sensing, M12 Round, Shielded, PNP NO, 3 Wire ...	Autonics PR12-2DN2 Sensor, Inductive Prox, 2mm Sensing, M12 Round, Shielded, NPN NC, 3 Wir ...	Autonics PR12-2DP2 Sensor, Inductive Prox, 2mm Sensing, M12 Round, Shielded, PNP NC, 3 Wir ...	Autonics PR12-2AC Sensor, Inductive Prox, 2mm Sensing, M12 Round, Shielded, NC, 90-250 VAC	Autonics PR12-2AO Sensor, Inductive Prox, 2mm Sensing, M12 Round, Shielded, NO, 90-250 VAC	Autonics PR12-4DN Sensor, Inductive Prox, 4mm Sensing, M12 Round, Non-Shielded, NPN NO, 10 ...	Autonics PR12-4DP Sensor, Inductive Prox, 4mm Sensing, M12 Round, Non-Shielded, PNP NO, 10 ...	Autonics PR12-4DN2 Sensor, Inductive Prox, 4mm Sensing, M12 Round, Non-Shielded, NPN NC, 1 ...	Autonics PR12-4DP2 Sensor, Inductive Prox, 4mm Sensing, M12 Round, Non-Shielded, PNP NC, 1 ...	Autonics PR12-4AC Sensor, Inductive Prox, 4mm Sensing, M12 Round, Non-Shielded, NC, 90-250 ...	Autonics PR12-4AO Sensor, Inductive Prox, 4mm Sensing, M12 Round, Non-Shielded, NO, 90-250 ...	Autonics PR18-5DN Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, NPN NO, 3 Wire ...	Autonics PR18-5DP Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, PNP NO, 3 Wire ...	Autonics PR18-5DN2 Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, NPN NC, 3 Wir ...	Autonics PR18-5DP2 Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, PNP NC, 3 Wir ...	Autonics PR18-5AC Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, NC, 90-250 VAC	Autonics PR18-5AO Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, NO, 90-250 VAC	Autonics PR18-8DN Sensor, Inductive Prox, 8mm Sensing, M18 Round, Non-Shielded, NPN NO, 3 ...	Autonics PR18-8DP Sensor, Inductive Prox, 8mm Sensing, M18 Round, Non-Shielded, PNP NO, 3 ...	Autonics PR18-8DN2 Sensor, Inductive Prox, 8mm Sensing, M18 Round, Non-Shielded, NPN NC, 3 ...	Autonics PR18-8DP2 Sensor, Inductive Prox, 8mm Sensing, M18 Round, Non-Shielded, PNP NC, 3 ...	Autonics PR30-10DP Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, PNP NO, 3 Wi ...	Autonics PR30-10DN2 Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, NPN NC, 3 W ...	Autonics PR30-10DP2 Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, PNP NC, 3 W ...	Autonics PR30-10AC Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, NC, 90-250 V ...	Autonics PR30-10AO Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, NO, 90-250 V ...	Autonics PR30-15DN Sensor, Inductive Prox, 15mm Sensing, M30 Round, Non-Shielded, NPN NO, ...	Autonics PR30-15DP Sensor, Inductive Prox, 15mm Sensing, M30 Round, Non-Shielded, PNP NO, ...	Autonics PR30-15DN2 Sensor, Inductive Prox, 15mm Sensing, M30 Round, Non-Shielded, NPN NC, ...	Autonics PR30-15AC Sensor, Inductive Prox, 30mm Round, Non-Shielded, AC, NC, 2 wire, 90-25 ...	Autonics PR30-15AO Sensor, Inductive Prox, 15mm Sensing, M30 Round, Non-Shielded, NO, 90-2 ...	Autonics PR30-10DN Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, NPN NO, 3 Wi ...	Autonics PR18-8AC Sensor, Inductive Prox, 8mm Sensing, M18 Round, Non-Shielded, NC, 90-250 ...	Autonics PR18-8AO Sensor, Inductive Prox, 8mm Sensing, M18 Round, Non-Shielded, NO, 90-250 ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PRT12-4DO-5M Cylindrical Type Proximity Sensor

5m cable
DC 2-wire type
12mm round
Non-shielded
15-30 VDC

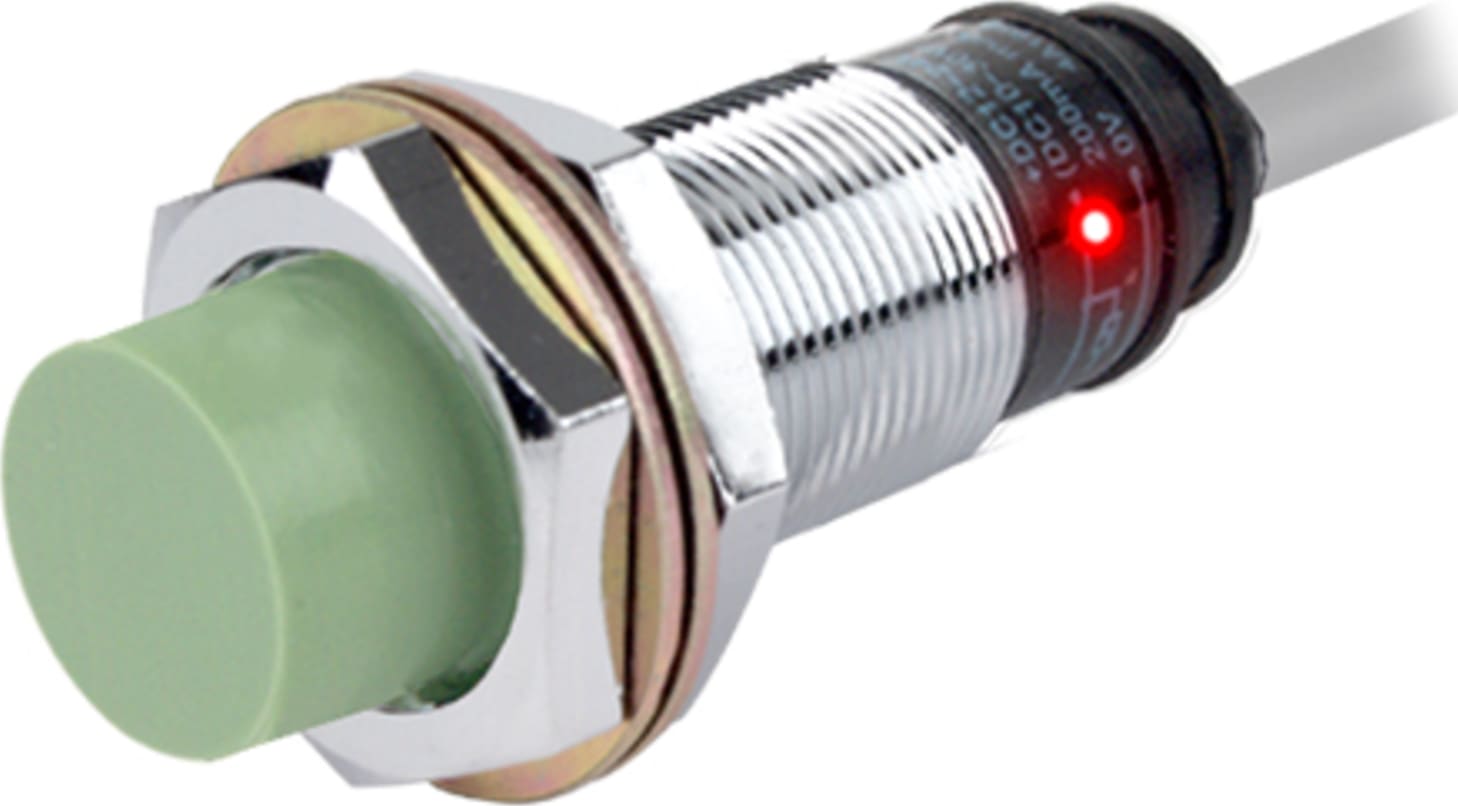

The PR series inductive proximity sensors feature solid sensing performance and excellent noise immunity with a specialized sensor IC developed by Autonics. Available in various sizes and sensing distances, the standard cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects. The PR series is available in DC 2-wire, DC 3-wire, AC 2-wire types.

Inductive proximity sensor

Principle
When the object (metallic) approaches the high-frequency magnetic field which is produced at the detection coil, induced currents flow in the metal,causing thermal loss and resulting in the reduction or stopping of oscillations. This change in state is detected by an oscillation state sensing circuit which then operates the output circuit.

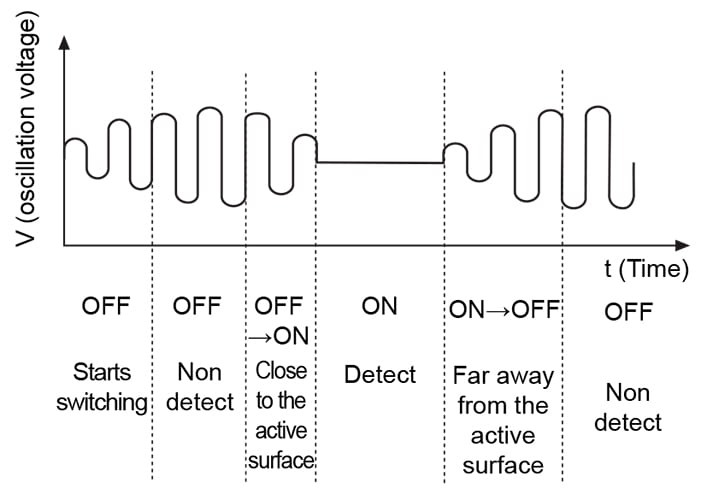

Principle of operation
When the proximity sensor is on, the oscillation of the current within 60ms will be increased to certain frequency, and electric field is formed. After that, if the object approaches, the induced current surrounding the sensing object will be increased, and the oscillation of the current will be decreased. When the object is detected completely, the current will be close to 0V. This very little oscillation of the current will be amplified, and will operate the output section.

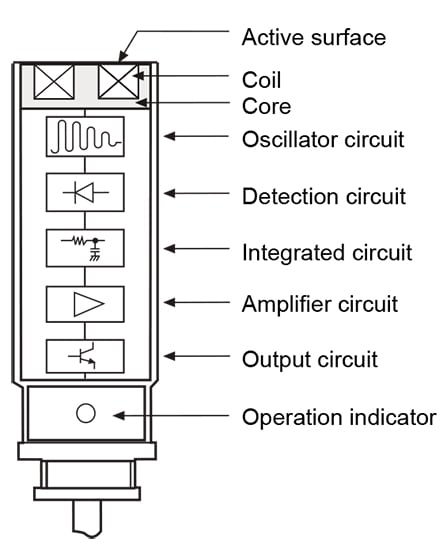

Configuration

Model: PRT12-4DO-5M Specifications
Diameter of sensing side	12mm
Sensing distance	4mm
Cable	5m
Installation	Non-shield (non-flush)
Hysteresis	Max. 10% of sensing distance
Standard sensing target	12×12×1mm (iron)
Setting distance	0 to 2.8mm
Power supply (operating voltage)	12-24VDCᜡ (10-30VDCᜡ)
Leakage current	Max. 0.6mA
Response frequency	500Hz
Residual voltage	Max. 3.5V (non-polarity type is max. 5V)
Affection by Temp.	Max. ±10% for sensing distance at ambient temperature 20℃ (for PRT08 Series: ±20% max.)
Control output	2 to 100mA
Insulation resistance	Over 50MΩ (at 500VDC megger)
Dielectric strength	1,500VAC 50/60Hz for 1 min
Vibration	1mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Indicator	Operation indicator: Red LED
Ambient temperature	-25 to 70℃, storage: -30 to 80℃
Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Protection circuit	Surge protection circuit, output short over current protection circuit
Protection structure	IP67 (IEC standard)
Material	Case/Nut: Nickel plated brass, Washer: Nickel plated iron, Sensing surface: Polybutylene terephthalate, Standard cable (black): Polyvinyl chloride (PVC), Oil resistant cable (gray): Oil resistant polyvinyl chloride (PVC)
Approval	CE
Weight	Approx.84g (approx. 72g)
