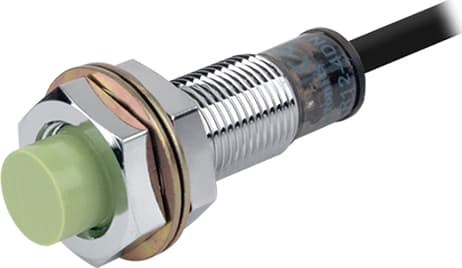

| Autonics PRT Series DC 2-wire type General Specifications |
| Sensing distance |
1.5mm |
2mm |
2mm |
4mm |
5mm |
8mm |
10mm |
15mm |
| Hysteresis |
Max. 10% of sensing distance |
| Standard sensing target |
8×8×1mm
(Iron) |
12×12×1mm
(Iron) |
18×18×1mm
(Iron) |
25×25×1mm
(Iron) |
30×30×1mm
(Iron) |
45×45×1mm
(Iron) |
| Sensing distance |
0 to 1.05mm |
0 to 1.4mm |
0 to 1.4mm |
0 to 2.8mm |
0 to 3.5mm |
0 to 5.6mm |
0 to 7mm |
0 to 10.5mm |
| Power supply (Operating voltage) |
12-24VDC (10-30VDC) |
| Current consumption |
Max. 0.6mA |
| Response frequency*1 |
1.5kHz |
1kHz |
1.5kHz |
500Hz |
350Hz |
400Hz |
200Hz |
| Residual voltage*2 |
Max. 3.5V(Non-polarity type is Max. 5V) |
| Affection by Temp. |
Max. ±10% for sensing distance at ambient temperature 20°C(For PRT08 Series : ±20% Max.) |
| Control output |
2 to 100mA |
| Insulation resistance |
Min. 50MΩ(at 500VDC megger) |
| Dielectric strength |
1500VAC 50/60Hz for 1minute |
| Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
| Shock |
500m/s²(approx. 50G) in X, Y, Z direction for 3 times |
| Indicator |
Operation indicator(red LED) |
| Environment |
Ambient temperature |
-25 to 70°C, storage: -30 to 80°C |
| Ambient humidity |
35 to 95% RH, storage: 35 to 95% RH |
| Protection circuit |
Surge protection circuit |
Surge protection circuit, Over current protection circuit |
| Protection |
IP67(IEC standard) |
| Cable |
ø3.5, 3-wire, 2m
(AWG24, Corediameter: 0.08mm,
Number of cores: 40, Insulator diameter: ø1) |
ø4, 2-wire, 2m |
ø5, 2-wire, 2m |
| (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25) |
| Material |
Case/Nut: Nickel plated Brass
Washer: Nickel plated Iron
Sensing surface: PBT
Standard cable(Black): Polyvinyl chloride(PVC)
Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC) |
| Approval |
CE |
| Weight*3 |
Approx. 64g
(approx. 52g) |
Approx.84g
(approx. 72g) |
Approx.122g
(approx. 110g) |
Approx.207g
(approx. 170g) |
| *1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance. |
| *2: Before using non-polarity type, check the condition of connected divice because residual voltage is 5V. |
| *3: The weight with packaging and the weight in parentheses is only unit weight. |
| *Environment resistance is rated at no freezing or condensation. |
