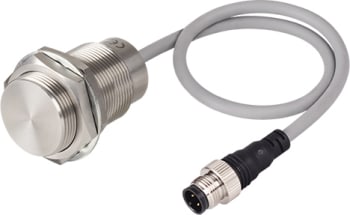

Autonics PRFDWT30-12DO-IV Full-Metal Long Distance Cylindrical Inductive Proximity Sensor - 30mm, 12mm

Name: Autonics PRFDWT30-12DO-IV Full-Metal Long Distance Cylindrical Inductive Proximity Sensor - 30mm, 12mm
Brand: Autonics
SKU: AutonicsPRFDWT30-12DO-IV
Price: 171.00 USD
Availability: InStock

0 reviews | Model: Autonics PRFDWT30-12DO-IV

Compare

Sensor, Inductive Prox, Long Sensing Distance Full Metal, 12mm Sensing, M30 Round, Shielded, Normal Open, 2 Wire, Cable Connector Type, IEC Standard Oil Resistant Cable Type, 12-24 VDC

Sensing side diameter: 30mm
Sensing distance: 12mm
Wire type and power: DC 2-wire type 12-24VDC (10-30VDC )
Installation: Shield(flush)
Standard sensing target: 54×54×1mm(iron)
Control output: DC 2-wire Normally open
Material: Case/Nut: stainless steel 303 (SUS 303), washer: stainless steel 304 (SUS 304), sensing side: stainless steel 303 (SUS 303, thickness of PRFDWT12/18: 0.4mm, PRFDWT30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Protection structure: IP67(IEC standard)
Approval: CE

View Product Details

Your Price: $171.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PRFDWT30-12DO-IV Sensor, Inductive Prox, Long Sensing Distance Full Metal, 12mm S ...	Autonics PRFDWT08-2DO-IV Sensor, Inductive Prox, Full Metal, Long Sensing Distance 2mm Sen ...
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Autonics PRFDWT30-12DO-IV Full-Metal Long Distance Cylindrical Inductive Proximity Sensor

Dimension: 30mm head diameter
Sensing distance: 12mm
Feature (Distance): Long sensing distance type
Wire connection: DC 2-wire type
Cable Standard/material: Oil resistant cable(IEC standard)

The Autonics PRFDWT30-12DO-IV PRFDW series cable connector type cylindrical proximity sensor features a long sensing distance and full-metal housing and sensor head made of stainless steel 303. The robust sensor is highly resistant to deformation and corrosion and can be applied in diverse environments including food and beverage manufacturing, chemical, and metalworking industries. The metal sensor head provides high resistance to impact and wear and the 360° ring-type status indicator allows users to quickly identify operation status from various angles.

The PRFDWT30-12DO-IV is available in Ø 30 mm size and 12 mm sensing distance for easy installation in tight spaces and various other user settings.

Model: PRFDWT30-12DO-IV Specifications
Wire type and power	DC 2-wire type 12-24VDC (10-30VDC )
Sensing side diameter	30mm
Sensing distance	12mm
Installation	Shield(flush)
Standard sensing target	54×54×1mm(iron)
Response frequency	50Hz
Current specification	Leakage current: Max. 0.8mA
Control output	DC 2-wire Normally open
Material	Case/Nut: stainless steel 303 (SUS 303), washer: stainless steel 304 (SUS 304), sensing side: stainless steel 303 (SUS 303, thickness of PRFDWT12/18: 0.4mm, PRFDWT30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard/material	Oil resistant cable(IEC standard)
Protection structure	IP67(IEC standard)
Approval	CE
Body length	Standard type
Environment_Ambient temperature	-25 to 70℃, storage: -25 to 70℃
Environment_Ambient humidity	35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)	Max. 15% of sensing distance
Residual voltage	Max. 3.5V
Weight	Approx. 225g(approx. 170g)
