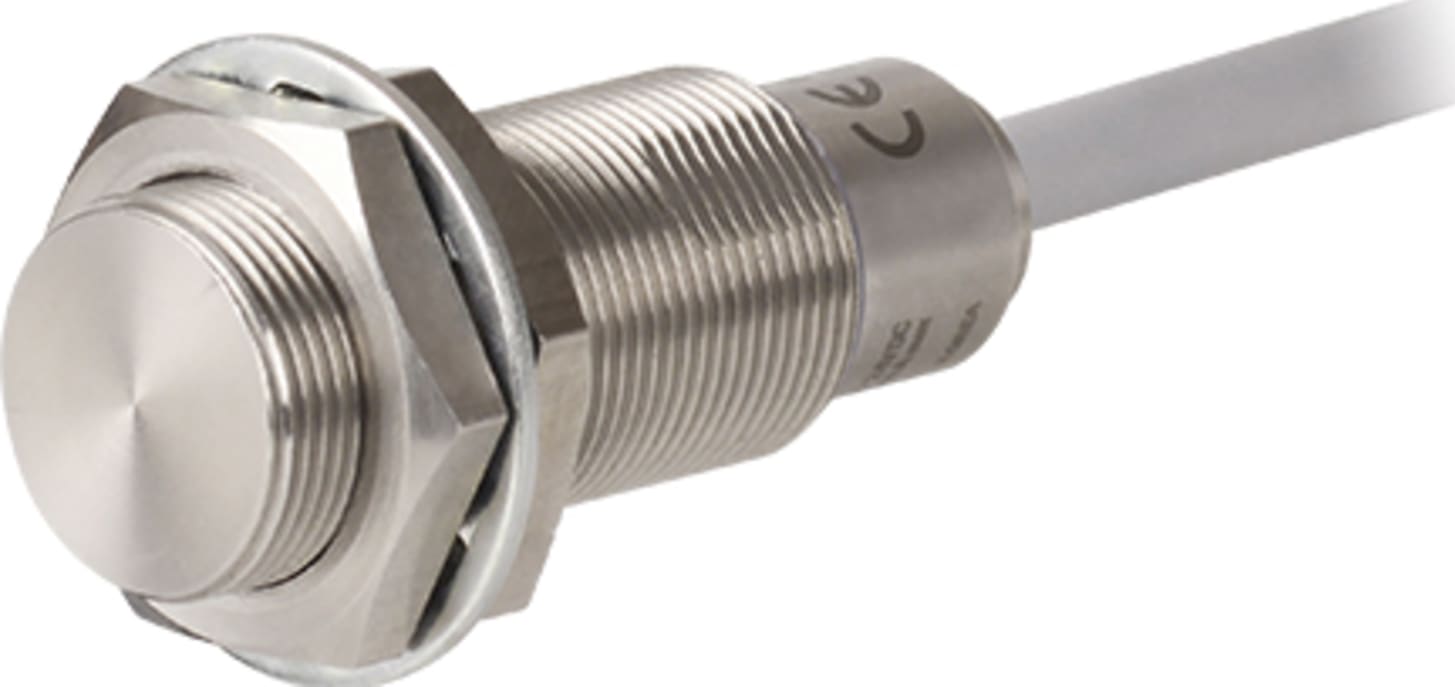

Autonics PRFDT18-7DO-V Full-Metal Long-Distance Cylindrical Inductive Proximity Sensors (Cable Type)

Name: Autonics PRFDT18-7DO-V Full-Metal Long-Distance Cylindrical Inductive Proximity Sensors (Cable Type)
Brand: Autonics
SKU: AutonicsPRFDT18-7DO-V
Price: 144.00 USD
Availability: InStock

0 reviews | Model: Autonics PRFDT18-7DO-V

Compare

Sensor, Inductive Prox, Long Sensing Distance Full Metal, 7mm Sensing, M18 Round, Shielded, Normal Open, 2 Wire, Oil Resistant Cable Type,12-24 VDC

7mm Sensing, M18 Round, Shielded, Normal Open, 2 Wire, Oil Resistant Cable Type,12-24 VDC
High resistance to impact and wear caused by contact with workpieces or wire brushes (sensor head/housing: stainless steel)
Reduced risk of malfunction caused by aluminum chips
PTFE coating prevents malfunctions caused by welding spatter (spatter-resistant model)
Excellent noise immunity with specialized sensor IC
Built-in surge protection circuit and overcurrent protection circuit
Operation indicator (red LED), stability indicator (green LED)
360° ring type status indicator
Oil resistant cable
IP67 protection structure (IEC standard)

View Product Details

Your Price: $144.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PRFDT18-7DO-V Sensor, Inductive Prox, Long Sensing Distance Full Metal, 7mm Sensi ...	Autonics PRFDT12-3DO-V Sensor, Inductive Prox, Long Sensing Distance Full Metal, 3mm Sensi ...	Autonics PRFDWT12-3DO-IV Sensor, Inductive Prox, Long Sensing Distance Full Metal, 3mm Sen ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PRFD Series
Full-Metal Cylindrical Splatter-Resistant Inductive Proximity Sensors

PRFD_Series_Cable_Types_Cylindrical_Proximity_Sensors

Operation indicator (red LED), stability indicator (green LED)
360° ring type status indicator
Oil resistant cable
High resistance to impact and wear caused by contact with workpieces or wire brushes (sensor head/housing: stainless steel)
Reduced risk of malfunction caused by aluminum chips

The PRFD series cable type cylindrical proximity sensors feature long sensing distances and full-metal housing and sensor heads made of stainless steel 303. The robust sensors are highly resistant to deformation and corrosion and can be applied in diverse environments including food and beverage manufacturing, chemical, and metalworking industries. The metal sensor head provides high resistance to impact and wear and the 360° ring type status indicator allows users to quickly identify operation status from various angles.

Main Features

Ordering Information

Control Output Diagram & Load Operating

PRFD Dimensions

Connections

Cable type	Cable connector type (IEC standard)

General Specifications
Model
Cable Type	PRFDT08-2DO-V PRFDAT08-2DO-V	PRFDT12-3DO-V PRFDAT12-3DO-V	PRFDT18-7DO-V PRFDAT18-7DO-V	PRFDT30-12DO-V PRFDAT30-12DO-V
Cable Connector Type	PRFDWT08-2DO-IV PRFDAWT08-2DO-IV	PRFDWT12-3DO-IV PRFDAWT12-3DO-IV	PRFDWT18-7DO-IV PRFDAWT18-7DO-IV	PRFDWT30-12DO-IV PRFDAWT30-12DO-IV
Diameter of the sensing side	8mm	12mm	18mm	30mm
Sensing distance	2mm	3mm	7mm	12mm
Installation	Shield (flush)
Hysteresis	Max. 15% of sensing distance
Standard Sensing Target	12×12×1mm (iron)	12×12×1mm (iron)	30×30×1mm (iron)	54×54×1mm (iron)
Setting Distance	0 to 1.4mm	0 to 2.1mm	0 to 4.9mm	0 to 8.4mm
Power supply (operating voltage)	12-24VDC (10-30VDC)
Leakage current	Max. 0.8mA
Response Frequency	150Hz	80Hz	80Hz	50Hz
Residual voltage	Max. 3.5V
Affection by Temp.	Max. ±20% for sensing distance at ambient temperature 20℃
Control output	Max. 3 to 100mA
Insulation resistance	Over 50MΩ (at 500VDC megger)
Dielectric strength	1,000VAC 50/60Hz for 1 min
Vibration	1.5mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	500m/s2 (approx. 50G) in each X, Y, Z direction for 10 times			1,000m/s2 (approx. 100G) in each X, Y, Z direction for 10 times
Indicator	Stability indicator: green LED, Operation indicator: red LED
Environment
Ambient temperature	-25 to 70℃, storage: -25 to 70℃
Ambient humidity	35 to 95%RH, storage: 35 to 95%RH
Protection circuit	Surge protection circuit, over current protection circuit
Protection	IP67 (IEC standard)
Cable
Cable Type	Ø4mm, 2-wire, 2m※4 (AWG22, core diameter: 0.08mm, no. of cores: 60, insulator diameter: Ø1.25mm)			Ø5mm, 2-wire, 2m※4 (AWG22, core diameter: 0.08mm, no. of cores: 60, insulator diameter: Ø1.25mm)
Cable Connector Type	Ø4mm, 2-wire, 300mm, M12 connector (AWG22, core diameter: 0.08mm, no. of cores: 60, insulator diameter: Ø1.25mm)			Ø5mm, 2-wire, 300mm, M12 connector (AWG22, core diameter: 0.08mm, no. of cores: 60, insulator diameter: Ø1.25mm)
Material	Case/Nut: stainless steel 303 (SUS303, PTFE coated※5), washer: stainless steel 304 (SUS304), sensing side: stainless steel 303 (SUS303, PTFE coated※5, thickness of PRFD(A) T08: 0.2mm, PRFD(A) T12/18: 0.4mm, PRFD(A) T30: 0.5mm), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Approval	CE
Weight	Approx. 80g (approx. 55g)	Approx. 110g (approx. 83g)	Approx. 132g (approx. 97g)	Approx. 225g (approx. 170g)
