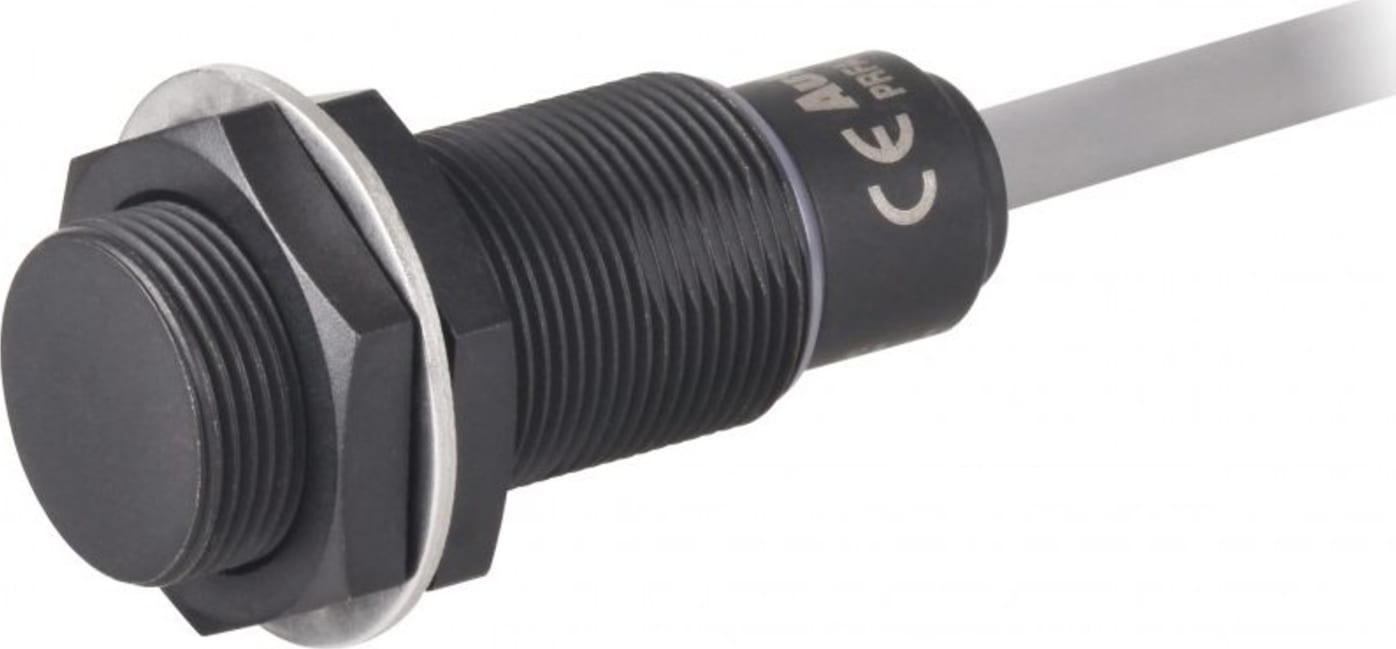

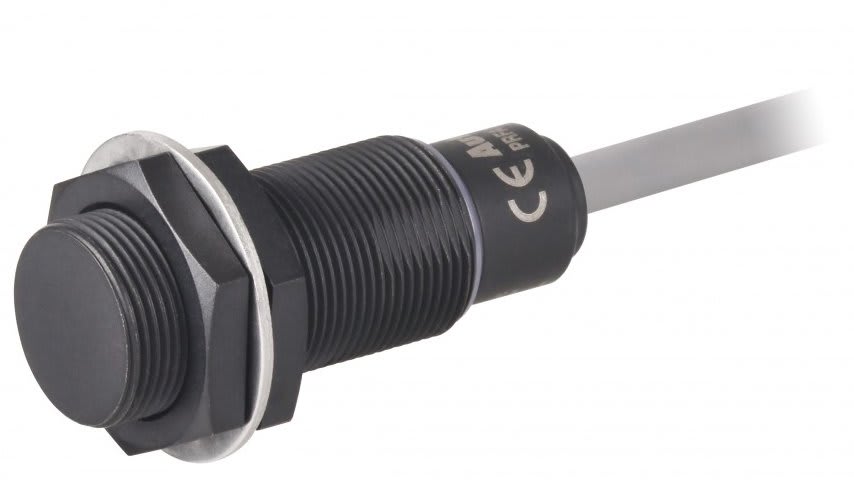

0 reviews | Model: Autonics PRFAT18-5DO-V
Sensor, Inductive Prox, Full Metal, Spatter Resistance, 5mm Sensing, M18 Round, Shielded, Normal Open, 2 Wire, Oil Resistant Cable Type 12-24 VDC
Your Price: $163.00
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
Connector proximity sensor PRCM Series makes maintenance and wiring works easier than ever. Also, it realizes world-best class superior noise resistance characteristics with dedicated IC.
DC 2-wire type
DC 3-wire type
AC 2-wire type
DC 2-wire type(Standard type)
DC 2-wire type(IEC standard type)
Load connections
When using DC or AC 2-wire type proximity sensor, the load must be connected, otherwise internal components may be damaged. The load can be connected to either wire.
It may cause return failure of load by residual voltage. If the load current is under 5mA, please make sure the residual voltage is less than the return voltage of the load by connecting a bleeder resistor in parallel with the load as shown in the diagram.
[ I:Action current of load, R:Bleeder resistance, P:Permissible power]
Please make the current on proximity sensor smaller than the return current of load by connecting a bleeder resistor in parallel.
*W value of Bleeder resistor should be bigger for proper heat dissipation.
When several proximity sensors are mounted close to one another a malfunction of the may be caused due to mutual interference. Therefore, be sure to keep a minimum distance between the two sensors as below chart indicates.
When sensors are mounted on metallic panel, it is required to protect the sensors from being affected by any metallic object except target. Therefore, be sure to provide a minimum distance as below chart indicates.
