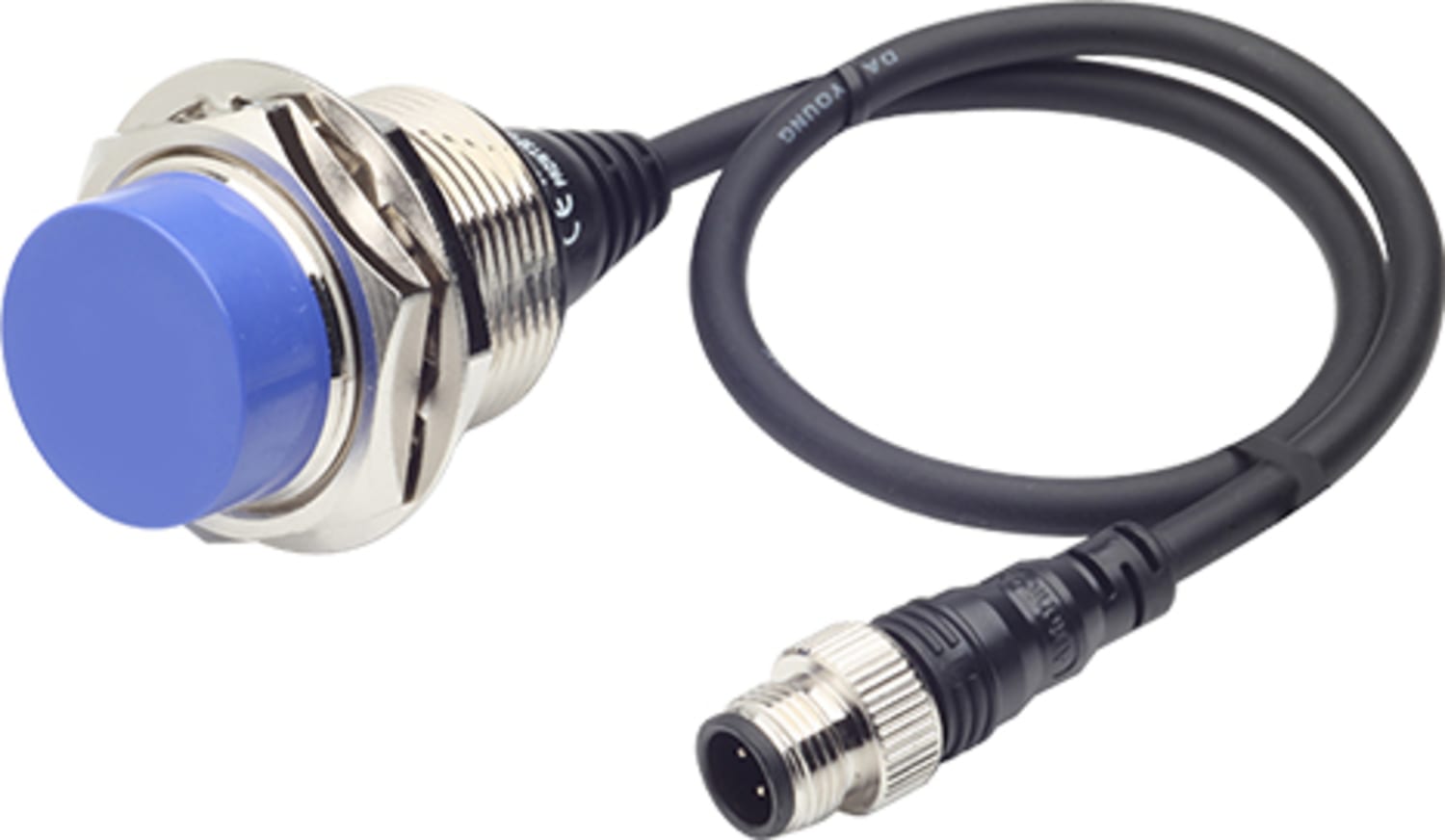

Autonics PRDWT30-25DO-I Sensor, Inductive Proximity, 30mm Round, Non Shielded, 25mm Sensing

Name: Autonics PRDWT30-25DO-I Sensor, Inductive Proximity, 30mm Round, Non Shielded, 25mm Sensing
Brand: Autonics
SKU: AutonicsPRDWT30-25DO-I
Price: 55.00 USD
Availability: InStock

0 reviews | Model: Autonics PRDWT30-25DO-I

Compare

Sensor, Inductive Prox, 30mm Round, Non Shielded, 25mm Sensing, NO, 2 Wire, Cable and Connector, 15-30 VDC I = Connector type

30mm Round, Non Shielded, 25mm Sensing, NO, 2 Wire, CableandConnector, 15-30 VDC I = Connector type
Long sensing distance (1.5 to 2 times longer sensing distance guaranteed compared to existing models)
Protection structure IP67(IEC standard)
Built-in surge protection, reverse polarity protection, overcurrent protection circuit
Long life cycle and high reliability
Red LED status indication
Replaceable for micro switches and limit switches
Improved cable strain relief : More reliable flexural strength of sensor/cable connecting part
Improved the noise resistance with dedicated IC

View Product Details

Your Price: $55.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PRDWT30-25DO-I Sensor, Inductive Prox, 30mm Round, Non Shielded, 25mm Sensing, NO ...	Autonics PRDWT12-4DO Sensor, Inductive Prox, 12mm Round, Shielded, 4mm Sensing, NO, 2 Wire ...	Autonics PRDWT12-4DC Sensor, Inductive Prox, 12mm Round, Shielded, 4mm Sensing, NC, 2 Wire ...	Autonics PRDWT12-8DO Sensor, Inductive Prox, 12mm Round, Non Shielded, 8mm Sensing, NO, 2 ...	Autonics PRDWT12-8DC Sensor, Inductive Prox, 12mm Round, Non Shielded, 8mm Sensing, NC, 2 ...	Autonics PRDWT18-7DO Sensor, Inductive Prox, 18mm Round, Shielded, 7mm Sensing, NO, 2 Wire ...	Autonics PRDWT18-7DC Sensor, Inductive Prox, 18mm Round, Shielded, 7mm Sensing, NC, 2 Wire ...	Autonics PRDWT18-14DO Sensor, Inductive Prox, 18mm Round, Non Shielded, 14mm Sensing, NO, ...	Autonics PRDWT18-14DC Sensor, Inductive Prox, 18mm Round, Non Shielded, 14mm Sensing, NC, ...	Autonics PRDWT30-15DO Sensor, Inductive Prox, 30mm Round, Shielded, 15mm Sensing, NO, 2 Wi ...	Autonics PRDWT30-15DC Sensor, Inductive Prox, 30mm Round, Shielded, 15mm Sensing, NC, 2 Wi ...	Autonics PRDWT30-25DO Sensor, Inductive Prox, 30mm Round, Non Shielded, 25mm Sensing, NO, ...	Autonics PRDWT30-25DC Sensor, Inductive Prox, 30mm Round, Non Shielded, 25mm Sensing, NC, ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PRDWT30-25DO-I Accessories

Choose a Category

Amplifiers / Preamps / Preamplifiers

for the Autonics PRDWT30-25DO-I

Autonics PA-12 Controller, Sensor, NPN and PNP Input, SPDT NO/NC Output, 110 and 220 VAC

Catalog: PA-12

(0)

In Stock!

Add to Cart

Autonics PRDW Series Cylindrical Inductive Proximity Sensors with Long Sensing Distance (Cable Connector Type)

The PRDW series inductive proximity sensors feature long sensing distances and excellent noise immunity with a specialized sensor IC developed by Autonics. The cable connector type sensors offer easier maintenance and wiring work. Available in various sizes and sensing distances, the high performance cylindrical inductive sensors can be used in diverse applications requiring non-contact detection of metallic objects. The sensors also feature strain relief cables for improved flexural strength and durability. The PRDW series is available in DC 2-wire, DC 3-wire types.

Dimensions

Control output diagram

DC 2-wire type

*The number in a circle is pin no. of connector.

DC 3-wire type

Autonics-PRD-Series-Control-output-diagram-02

Autonics-PRD-Series-Control-output-diagram-03

Connections

DC 2-wire type

*The load can be connected to either wire.

DC 3-wire type

Wiring diagram

DC 2-wire type(Standard type)

*Pin 1, 2 are not used terminals.
*For DC 3-wire type connector cable, it is available to use with black wire(12-24VDC) and blue wire(0V).

DC 2-wire type(IEC standard type)

*2,3 of N.O. type and 3,4 of N.C. type are not used terminals.
*The pin arrangement of connector applying IEC standard is being developed.
*Please attach "I" at the end of the name of standard type for purchasing the IEC standard product. Ex)PRDWT12-4DO-I
*The connector cable for IEC standard is being developed. Please attach "I' at the end of the name of standard type. Ex)CID2-2-I, CLD2-5-I

DC 3-wire type

*Please fasten the cleat of connector not to shown the thread. (0.39 to 0.49N.m)
*Please fasten the vibration part with Teflon tape.
*Refer to the G-6 about IEC standard connector wires and specifications.

Proper Usage

Load connections

DC 2-wire type

Please make the current on proximity sensor smaller than the return current of load by connecting a bleeder resistor in parallel.

*W value of Bleeder resistor should be bigger for proper heat dissipation.

Autonics-PRCM-Series-Load-connections-03

Mutual-interference

When several proximity sensors are mounted close to one another a malfunction of the may be caused due to mutual interference. Therefore, be sure to keep a minimum distance between the two sensors as below chart indicates.

Influence by surrounding metals

When sensors are mounted on metallic panel, it is required to protect the sensors from being affected by any metallic object except target. Therefore, be sure to provide a minimum distance as below chart indicates.

Autonics-PRCM-Series-Mutual-interference-02

Autonics PRD Series DC 2-wire type General Specifications
Model		PRDT12-4□O PRDT12-4□C PRDT12-4□O-V PRDT12-4□C-V PRDLT12-4□O PRDLT12-4□C PRDLT12-4□O-V PRDLT12-4□C-V PRDWT12-4□O PRDWT12-4□C PRDWT12-4□O-I PRDWT12-4□C-I PRDWT12-4□O-IV PRDWT12-4□C-IV	PRDT12-8□O PRDT12-8□C PRDT12-8□O-V PRDT12-8□C-V PRDLT12-8□O PRDLT12-8□C PRDLT12-8□O-V PRDLT12-8□C-V PRDWT12-8□O PRDWT12-8□C PRDWT12-8□O-I PRDWT12-8□C-I PRDWT12-8□O-IV PRDWT12-8□C-IV	PRDT18-7□O PRDT18-7□C PRDT18-7□O-V PRDT18-7□C-V PRDLT18-7□O PRDLT18-7□C PRDLT18-7□O-V PRDLT18-7□C-V PRDWT18-7□O PRDWT18-7□C PRDWT18-7□O-I PRDWT18-7□C-I PRDWT18-7□O-IV PRDWT18-7□C-IV PRDWLT18-7□O-IV PRDWLT18-7□C-IV	PRDT18-14□O PRDT18-14□C PRDT18-14□O-V PRDT18-14□C-V PRDLT18-14□O PRDLT18-14□C PRDLT18-14□O-V PRDLT18-14□C-V PRDWT18-14□O PRDWT18-14□C PRDWT18-14□O-I PRDWT18-14□C-I PRDWT18-14□O-IV PRDWT18-14□C-IV PRDWLT18-14□O-IV PRDWLT18-14□C-IV	PRDT30-15□O PRDT30-15□C PRDT30-15□O-V PRDT30-15□C-V PRDLT30-15□O PRDLT30-15□C PRDLT30-15□O-V PRDLT30-15□C-V PRDWT30-15□O PRDWT30-15□C PRDWT30-15□O-I PRDWT30-15□C-I PRDWT30-15□O-IV PRDWT30-15□C-IV	PRDT30-25□O PRDT30-25□C PRDT30-25□O-V PRDT30-25□C-V PRDLT30-25□O PRDLT30-25□C PRDLT30-25□O-V PRDLT30-25□C-V PRDWT30-25□O PRDWT30-25□C PRDWT30-25□O-I PRDWT30-25□C-I PRDWT30-25□O-IV PRDWT30-25□C-IV
Sensing distance		4mm	8mm	7mm	14mm	15mm	25mm
Hysteresis		Max. 10% of sensing distance
Standard sensing target		12×12×1mm(Iron)	25×25×1mm (Iron)	20×20×1mm (Iron)	40×40×1mm (Iron)	45×45×1mm (Iron)	75×75×1mm (Iron)
Sensing distance		0 to 2.8mm	0 to 5.6mm	0 to 4.9mm	0 to 9.8mm	0 to 10.5mm	0 to 17.5mm
Power supply (Operating voltage)		12-24VDC (10-30VDC)
Leakage current		Max. 0.6mA
Response frequency^*1		450HZ	400Hz	250Hz	200Hz	100Hz
Residual voltage^*2		Max. 3.5V(for non-polarity type, max. 5V)
Affection by Temp.		Max. ±10% for sensing distance at ambient temperature 20°C
Control output		2 to 100mA
Insulation resistance		Min. 50MΩ(at 500VDC megger)
Dielectric strength		1500VAC 50/60Hz for 1minute
Vibration		1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock		500m/s²(approx. 50G) X, Y, Z directions for 3 times
Indicator		Operation indicator(red LED)
Environment	Ambient temperature	-25 to 70°C, Storage: -30 to 80°C
	Ambient humidity	35 to 95%RH, Storage: 35 to 95%RH
Protection circuit		Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit
Material		Case/Nut: Nickel plated Brass Washer: Nickel plated Iron Sensing surface: Heat-resistant ABS Standard cable(Black): Polyvinyl chloride(PVC) Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC)
Cable		ø4, 2-wire, 2m		ø5, 2-wire, 2m
		(For cable type, 300mm, M12 connector), (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25)
Approval		CE
Protection		IP67(IEC Standard)
Unit weight		PRDT: Approx. 74g PRDLT: Approx. 94g PRDWT: Approx. 44g	PRDT: Approx. 72g PRDLT: Approx. 92g PRDWT: Approx. 42g	PRDT: Approx. 115g PRDLT: Approx. 145g PRDWT: Approx. 80g PRDWLT: Approx. 42g	PRDT: Approx. 110g PRDLT: Approx. 140g PRDWT: Approx. 75g PRDWLT: Approx. 105g	PRDT: Approx. 175g PRDLT: Approx. 215g PRDWT: Approx. 140g	PRDT: Approx. 180g PRDLT: Approx. 220g PRDWT: Approx. 145g
^*1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard
sensing target, 1/2 of the sensing distance for the distance.
^*2: Before using non-polarity type, check the condition of connected device because residual voltage is 5V.
^*The '□' of model name is for power type. 'D' is 12-24VDC, 'X' is non-polarity 12-24VDC.
^*The last 'V' of model name is for the model with oil-resistance reinforced cable.
^*Environment resistance is rated at no freezing or condensation.

Autonics PRD Series DC 3-wire type General Specifications
Model	PRD12-4DN PRD12-4DP PRD12-4DN2 PRD12-4DP2 PRDL12-4DN PRDL12-4DP PRDL12-4DN2 PRDL12-4DP2 PRDW12-4DN PRDW12-4DP PRDW12-4DN2 PRDW12-4DP2 PRDW12-4DN-V PRDW12-4DP-V PRDWL12-4DN PRDWL12-4DP PRDWL12-4DN2 PRDWL12-4DP2	PRD12-8DN PRD12-8DP PRD12-8DN2 PRD12-8DP2 PRDL12-8DN PRDL12-8DP PRDL12-8DN2 PRDL12-8DP2 PRDW12-8DN PRDW12-8DP PRDW12-8DN2 PRDW12-8DP2 PRDW12-8DN-V PRDW12-8DP-V PRDWL12-8DN PRDWL12-8DP PRDWL12-8DN2 PRDWL12-8DP2	PRD18-7DN PRD18-7DP PRD18-7DN2 PRD18-7DP2 PRDL18-7DN PRDL18-7DP PRDL18-7DN2 PRDL18-7DP2 PRDW18-7DN PRDW18-7DP PRDW18-7DN2 PRDW18-7DP2 PRDW18-7DN-V PRDW18-7DP-V PRDWL18-7DN PRDWL18-7DP PRDWL18-7DN2 PRDWL18-7DP2	PRD18-14DN PRD18-14DP PRD18-14DN2 PRD18-14DP2 PRDL18-14DN PRDL18-14DP PRDL18-14DN2 PRDL18-14DP2 PRDW18-14DN PRDW18-14DP PRDW18-14DN2 PRDW18-14DP2 PRDW18-14DN-V PRDW18-14DP-V PRDWL18-14DN PRDWL18-14DP PRDWL18-14DN2 PRDWL18-14DP2	PRD30-15DN PRD30-15DP PRD30-15DN2 PRD30-15DP2 PRDL30-15DN PRDL30-15DP PRDL30-15DN2 PRDL30-15DP2 PRDW30-15DN PRDW30-15DP PRDW30-15DN2 PRDW30-15DP2 PRDW30-15DN-V PRDW30-15DP-V PRDWL30-15DN PRDWL30-15DP PRDWL30-15DN2 PRDWL30-15DP2	PRD30-25DN PRD30-25DP PRD30-25DN2 PRD30-25DP2 PRDL30-25DN PRDL30-25DP PRDL30-25DN2 PRDL30-25DP2 PRDW30-25DN PRDW30-25DP PRDW30-25DN2 PRDW30-25DP2 PRDW30-25DN-V PRDW30-25DP-V PRDWL30-25DN PRDWL30-25DP PRDWL30-25DN2 PRDWL30-25DP2
Sensing distance	4mm	8mm	7mm	14mm	15mm	25mm
Hysteresis	Max. 10% of sensing distance
Standard sensing target	12×12×1mm(Iron)	25×25×1mm(Iron)	20×20×1mm (Iron)	40×40×1mm (Iron)	45×45×1mm (Iron)	75×75×1mm (Iron)
Sensing distance	0 to 2.8mm	0 to 5.6mm	0 to 4.9mm	0 to 9.8mm	0 to 10.5mm	0 to 17.5mm
Power supply (Operating voltage)	12-24VDC (10-30VDC)
Currentconsumption	Max. 10mA
Response frequency^*1	500Hz	400Hz	300Hz	200Hz	100HZ	100Hz
Residual voltage	Max. 1.5V
Affection by Temp.	Max. ±10% for sensing distance at ambient temperature 20°C
Control output	200mA
Insulation resistance	Min. 50MΩ(at 500VDC megger)
Dielectric strength	1500VAC 50/60Hz for 1minute
Vibration	1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock	500m/s²(approx. 50G) X, Y, Z directions for 3 times
Indicator	Operation indicator(red LED)
Environment	-25 to 70°C, Storage: -30 to 80°C
	35 to 95%RH, Storage: 35 to 95%RH
Protection circuit	Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit
Protection	IP67(IEC Standard)
Material	Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: Heat-resistant ABS, Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC)
Cable	ø4, 3-wire, 2m		ø5, 3-wire, 2m
	(For cable type, 300mm, M12 connector), (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25)
Approval	CE
Unit weight	PRD: Approx. 74g PRDL: Approx. 94g PRDW: Approx. 44g PRDWL: Approx. 64g	PRD: Approx. 72g PRDL: Approx. 92g PRDW: Approx. 42g PRDWL: Approx. 62g	PRD: Approx. 115g PRDL: Approx. 145g PRDW: Approx. 80g PRDWL: Approx. 110g	PRD: Approx. 110g PRDL: Approx. 140g PRDW: Approx. 75g PRDWL: Approx. 105g	PRD: Approx. 175g PRDL: Approx. 215g PRDW: Approx. 140g PRDWL: Approx. 180g	PRD: Approx. 180g PRDL: Approx. 220g PRDW: Approx. 145g PRDWL: Approx. 185g
^*1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard
sensing target, 1/2 of the sensing distance for the distance.
^*The last 'V' of model name is for the model with oil-resistance reinforced cable.
^*Environment resistance is rated at no freezing or condensation.

Tech Specs

Test Equipment General Attributes
Safety Approval	CE
