| Specifications DC 2-Wrie type |
| Model |
PRDAT12-4DO
PRDAT12-4DC
PRDAT12-4DO-V
PRDAT12-4DC-V |
PRDAT18-7DO
PRDAT18-7DC
PRDAT18-7DO-V
PRDAT18-7DC-V |

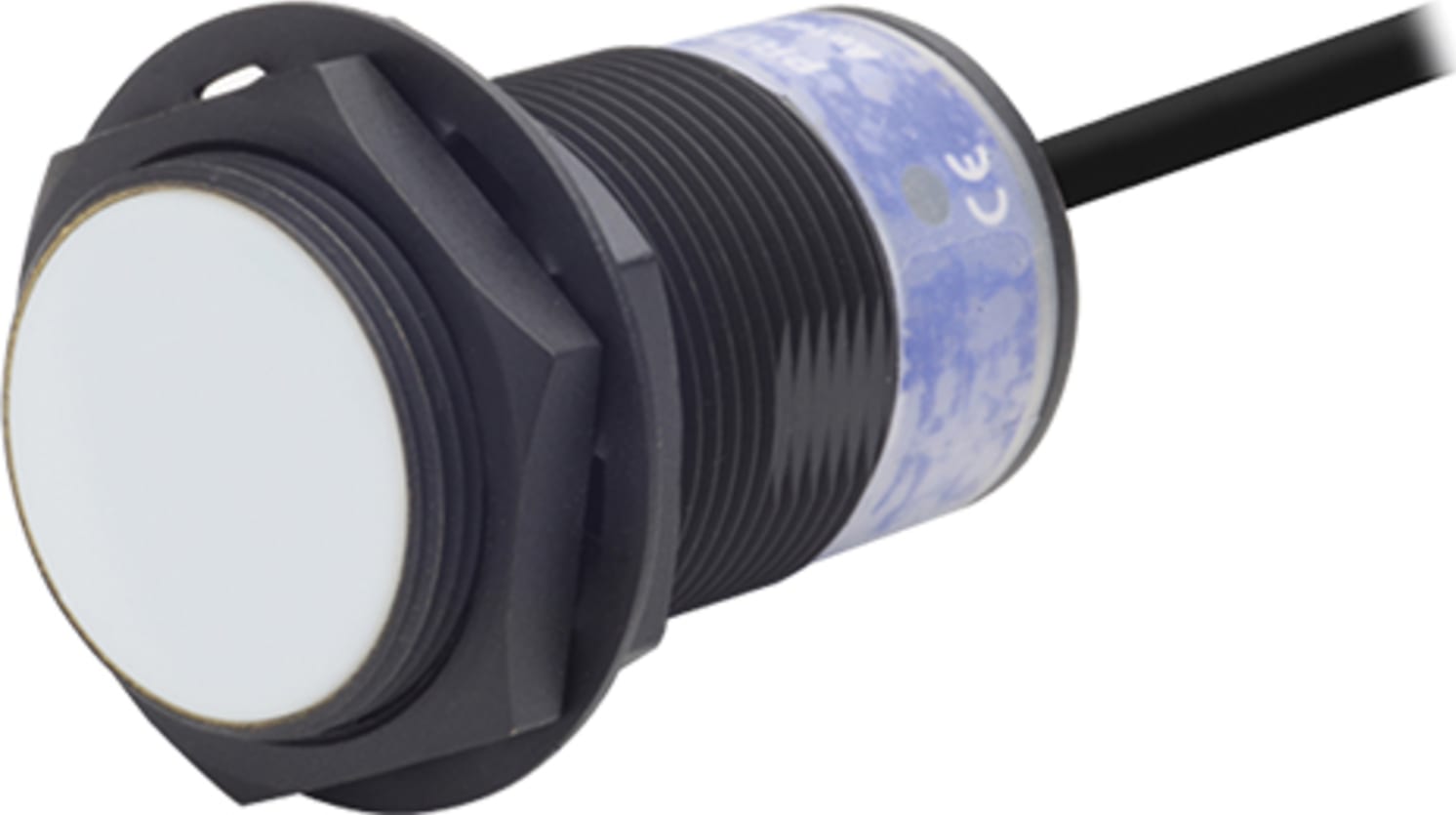

PRDAT30-15DO
PRDAT30-15DC
PRDAT30-15DO-V
PRDAT30-15DC-V |
| Sensing distance |
4mm |
7mm |
15mm |
| Hysteresis |
Max. 10% of sensing distance |
| Standard sensing target |
12×12×1mm (iron) |
20×20×1mm (iron) |
45×45×1mm (iron) |
| Setting distance |
0 to 2.8mm |
0 to 4.9mm |
0 to 10.5mm |
| Power supply (operating voltage) |
12-24VDC
(10-30VDC) |
| Leakage current |
Max. 0.6mA |
| Response frequency※1 |
450Hz |
250Hz |
100Hz |
| Residual voltage |
Max. 3.5V |
| Affection by Temp |
Max. ±10% for sensing distance at ambient temperature 20℃ |
| Control output |
2 to 100mA |
| Insulation resistance |
Over 50MΩ (at 500VDC megger) |
| Dielectric strength |
1,500VAC 50/60Hz for 1 minute |
| Vibration |
1mm amplitude at frequency 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Shock |
500m/s² (approx. 50G) in each X, Y, Z directions for 3 times |
| Indicator |
Operation indicator: Red LED |
| Environment |
Ambient temperature |
-25 to 70℃, storage: -30 to 80℃ |
| Ambient humidity |
35 to 95%RH, storage: 35 to 95%RH |
| Protection circuit |
Surge protection circuit, Over-current protection circuit |
| Protection structure |
IP67 (IEC standard) |
| Cable |
Ø4mm, 2-wire, 2m, M12 connector |
Ø5mm, 2-wire, 2m, M12 connector |
| (AWG22, Core diameter: 0.8mm, Number of cores: 60, Insulator diameter: Ø1.25mm) |
| Material |
Case/Nut: PEFE coated brass, Washer: PEFE coated iron, Sensing surface: PEFE, Standard cable (black): Polyvinyl chloride (PVC), Oil resistant cable (gray): Oil resistant polyvinyl chloride (PVC) |
| Approval |
CE |
| Weight※2 |
Approx. 84g (approx. 72g) |
Approx. 134g (approx. 122g) |
Approx. 221g (approx. 184g) |
※1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※2: The weight includes packaging. The weight in parenthesis in for unit only.
※Environment resistance is rated at no freezing or condensation. |
