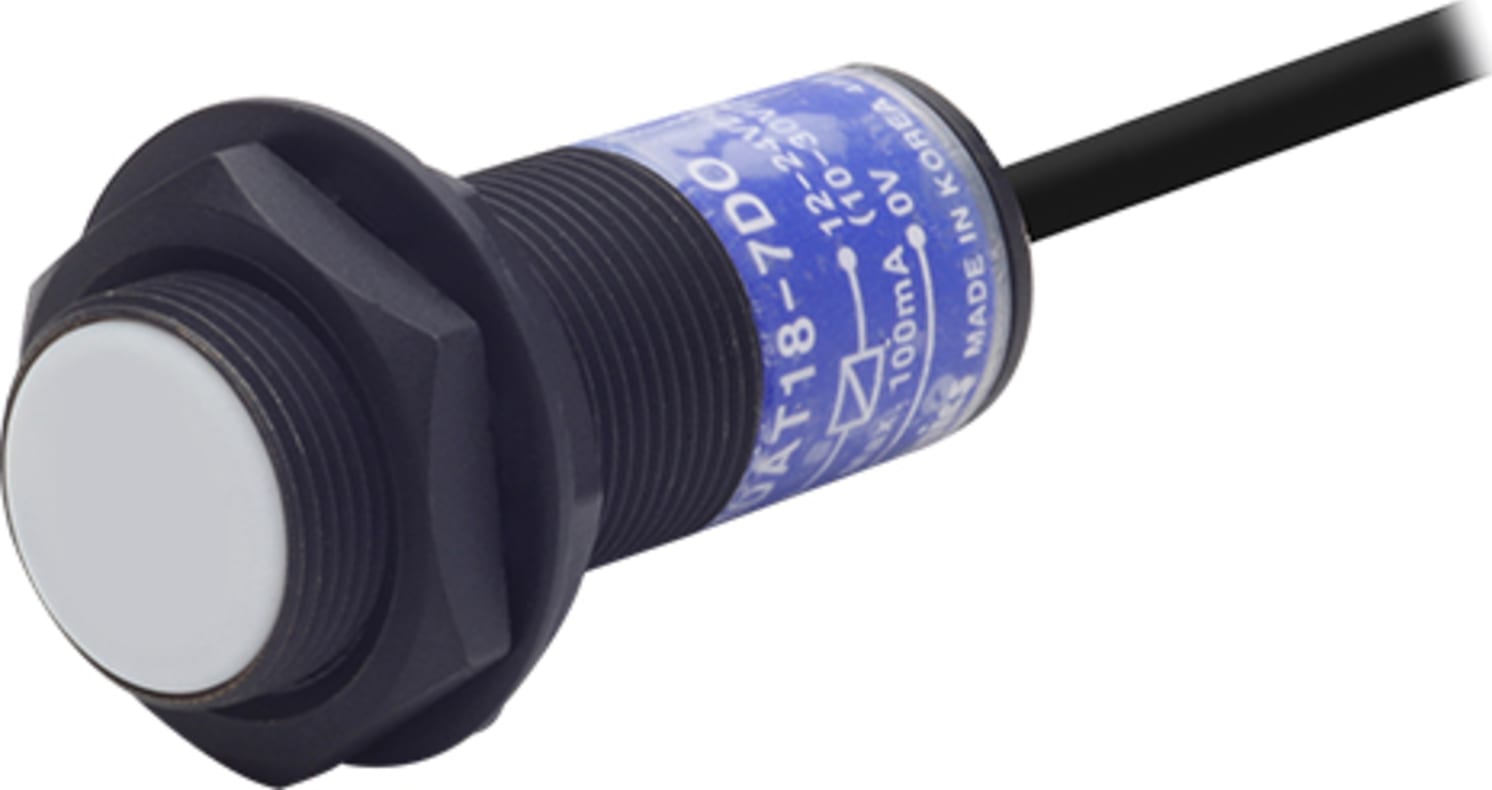

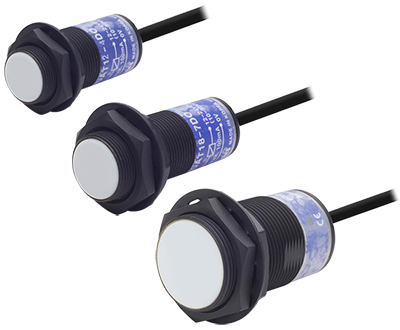

The PRDA series inductive proximity sensors are PTFE coated for high heat resistance and prevention of malfunctions caused by welding spatter. The sensors also feature long sensing distances and excellent noise immunity with a specialized sensor IC developed by Autonics. The sensors are ideal for welding applications and can be used as an alternative to spatter-resistant limit switches.

The Characteristic of Spatter-Resistance Type

The hot arc from arc welding machine is adhesive even with metals or plastics. Therefore, normal proximity sensor might have malfunction even though there are no sensing object if the arcs are put on the sensing surface. The arcs are not adhered on the sensing part of the spatter-resistance type proximity sensor as the part is coated with PEFE against thermal resistance. Also, the protection cover sold optionally has the same function.

Order Information

Control Output Diagram & Load Operating

Dimensions

Type	Cable Type	Cable connector type	Nut, Washer
	PRDAT(M12, M18, M30)	PRDAWT(M12, M18, M30)
Flush



Type			A	B	C	D	F	G	H	J
Flush	M12	PRDAT	M 12x1	43	32	4	4	17	21	2000
		PRDAWT	M 12x1	43	32	4	4	17	21	300
	M18	PRDAT	M 18x1	47.5	29.5	4	4	24	29	2000
		PRDAWT	M 18x1	47.5	29.5	4	5	24	29	300
	M30	PRDAT	M30x1.5	58.5	38.5	5	5	35	42	2000
		PRDAWT	M30x1.5	58.5	38.5	5	5	35	42	300

Connections

DC 2wire standard type	Connector	Connector IEC Standards Model
