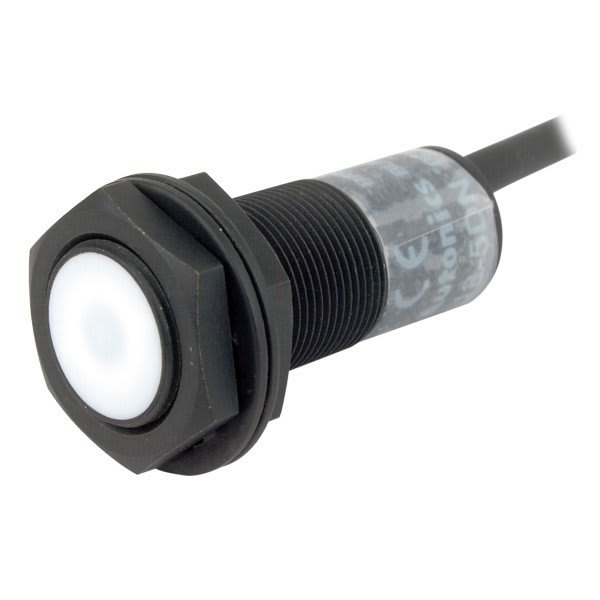

Autonics PRAWT18-5DO-I - Inductive Proximity Sensor

Name: Autonics PRAWT18-5DO-I - Inductive Proximity Sensor
Brand: Autonics
SKU: AutonicsPRAWT18-5DO-I
Price: 105.00 USD
Availability: InStock

0 reviews | Model: Autonics PRAWT18-5DO-I

Autonics PRA Spatter-resistant Type Proximity Sensor

Compare

Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, Weld Field Immune, NO, 2 Wire pigtail, IEC Standard Cable Connector, 15-30 VDC

Wire type and power: DC 2-wire type 15-30 VDC
Sensing side diameter: M12
Sensing distance: 2mm
Installation: Shield (flush)
Standard sensing target: 12×12×1mm (iron)
Control output: Normally Closed
Material: Brass (teflon coated)
PTFE coated for high heat resistance (prevent malfunction from welding spatter)
Excellent noise immunity with specialized sensor IC
Built-in surge protection circuit
Built-in overcurrent protection circuit (DC 2-wire, DC 3-wire types)
Built-in reverse polarity protection circuit (DC 3-wire types)
Durable and reliable alternative to spatter-resistant limit switches
IP67 protection structure (IEC standard)

View Product Details

Your Price: $105.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PRAWT18-5DO-I Sensor, Inductive Prox, 5mm Sensing, M18 Round, Shielded, Weld Fiel ...	Autonics PRAWT12-2DO Sensor, Inductive Prox, 12mm Sensing, M12 Round, Shielded, Weld Field ...	Autonics PRAWT12-2DC Sensor, Inductive Prox, 12mm Sensing, M12 Round, Shielded, Weld Field ...	Autonics PRAWT12-2DO-I Sensor, Inductive Prox, 2mm Sensing, M12 Round, Shielded, Weld Fiel ...	Autonics PRAWT30-10DC-I Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, Weld Fi ...	Autonics PRAWT30-10DO Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, Weld Fiel ...	Autonics PRAWT30-10DO-I Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, Weld Fi ...	Autonics PRAWT30-10DC Sensor, Inductive Prox, 10mm Sensing, M30 Round, Shielded, Weld Fiel ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PRAWT18-5DO-I - Inductive Proximity Sensor

Cylindrical Spatter-Resistant Inductive Proximity Sensor (Cable Type)

Wire type and power: DC 2-wire type 15-30 VDC
Sensing side diameter: M12
Sensing distance: 2mm
Installation: Shield (flush)
Standard sensing target: 12×12×1mm (iron)
Control output: Normally Closed
Material: Brass (teflon coated)

The PRA series inductive proximity sensors are PTFE coated for high heat resistance and prevention of malfunctions caused by welding spatter. The sensors also feature excellent noise immunity with a specialized sensor IC developed by Autonics. The sensors are ideal for welding applications and can be used as an alternative to spatter-resistant limit switches. The PRA series is available in DC 2-wire, DC 3-wire, AC 2-wire types.

DC 2-wire type General Specifications
Model		PRAT12-2DO PRAT12-2DC	PRAWT12-2DO PRAWT12-2DC PRAWT12-2DO-I PRAWT12-2DC-I	PRAT18-5DO PRAT18-5DC	PRAWT18-5DO PRAWT18-5DC PRAWT18-5DO-I PRAWT18-5DC-I	PRAT30-10DO PRAT30-10DC	PRAWT30-10DO PRAWT30-10DC PRAWT30-10DO-I PRAWT30-10DC-I
Sensing distance		2mm		5mm		10mm
Hysteresis		Max. 10% of sensing distance
Standard sensing target		12×12×1mm(Iron)		18×18×1mm(Iron)		30×30×1mm(Iron)
Setting distance		0 to 1.4mm		0 to 3.5mm		0 to 7mm
Power supply (Operating voltage)		12-24VDC (10 -30VDC)
Leakage current		Max. 0.6mA
Response frequency^*1		1.5kHz		500Hz		400Hz
Residual voltage^*2		Max. 3.5V(Non-polarity type is Max. 5V)
Affection by Temp.		Max. ±10% for sensing distance at ambient temperature 20°C
Control output		2 to 100mA
Insulation resistance		Min. 50MΩ(at 500VDC megger)
Dielectric strength		1500VAC 50/60Hz for 1 minute(between all terminals and case)
Vibration		1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock		500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times
Indicator		Operation indicator(red LED)
Environment	Ambient temperature	-25 to 70°C, storage: -30 to 80°C
	Ambient humidity	35 to 95%RH, storage: 35 to 95%RH
Protection circuit		Surge protection circuit, Overcurrent protection circuit
Protection		IP67(IEC standard)
Cable		ø4, 2-wire, 2m		ø5, 2-wire, 2m
		(For cable type, 300mm, M12 connector), (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25)
Material		Case/Nut: Teflon coated Brass Washer: Teflon coated Iron Sensing surface: Teflon Standard cable(Black): Polyvinyl chloride(PVC)
Approval		CE
Weight^*3		Approx. 84g (approx. 72g)	Approx. 54g (approx. 42g)	Approx. 122g (approx. 110g)	Approx. 70g (approx. 58g)	Approx. 207g (approx. 170g)	Approx. 134g (approx. 122g)
1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance. 2: Before using non-polarity type, check the condition of connected divice because residual voltage is 5V. 3: The weight with packaging and the weight in parentheses is only unit weight. Environment resistance is rated at no freezing or condensation. Refer to the G-5 for IEC standard connector cables and specifications. The '*' of model name is for power type. 'D' is 12-24VDC, 'X' is non-polarity 12-24VDC.

DC 3-wire type General Specifications
Model		PRA12-2DN PRA12-2DP PRA12-2DN2 PRA12-2DP2	PRA18-5DN RA18-5DP PRA18-5DN2 PRA18-5DP2	PRA30-10DN PRA30-10DP PRA30-10DN2 PRA30-10DP2
Sensing distance		2mm	5mm	10mm
Hysteresis		Max. 10% of sensing distance
Standard sensing target		12×12×1mm(Iron)	18×18×1mm(Iron)	30×30×1mm(Iron)
Setting distance		0 to 1.4mm	0 to 3.5mm	0 to 7mm
Power supply (Operating voltage)		12-24VDC (10-30VDC)
Current consumption		Max. 10mA
Response frequency^*1		1.5kHz	500Hz	400Hz
Residual voltage		Max. 1.5V
Affection by Temp.		Max. ±10% for sensing distance at ambient temperature 20°C
Control output		Max. 200mA
Insulation resistance		Min. 50MΩ(at 500VDC megger)
Dielectric strength		1500VAC 50/60Hz for 1 minute
Vibration		1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock		500m/s²(appox. 50G) in each of X, Y, Z directions for 3 times
Indicator		Operation indicator(red LED)
Environment	Ambient temperature	-25 to 70°C, storage: -30 to 80°C
	Ambient humidity	35 to 95%RH, storage: 35 to 95%RH
Protection circuit		Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit
Protection		IP67(IEC standard)
Cable		ø4, 3-wire, 2m	ø5, 2-wire, 2m
		(AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25)
Material		Case/Nut: Teflon coated Brass Washer: Teflon coated Iron Sensing surface: Teflon Standard cable(Black): Polyvinyl chloride(PVC)
Approval		CE
Weight^*2		Approx. 84g(approx. 72g)	Approx. 122g(appox. 110g)	Approx. 207g(approx. 170g)

AC 2-wire type General Specifications
Model		PRA12-2AO PRA12-2AC	PRA18-5AO PRA18-5AC	PRA30-10AO PRA30-10AC
Sensing distance		2mm	5mm	10mm
Hysteresis		Max. 10% of sensing distance
Standard sensing target		12×12×1mm(Iron)	18×18×1mm(Iron)	30×30×1mm(Iron)
Setting distance		0 to 1.4mm	0 to 3.5mm	0 to 7mm
Power supply (Operating voltage)		100-240VAC (85-264VAC)
Leakage current		Max. 2.5mA
Response frequency^*1		20Hz
Residual voltage		Max. 10V
Affection by Temp.		Max. ±10% for sensing distance at ambient temperature 20°C
Control output		5 to 150mA	5 to 200mA
Insulation resistance		Min. 50MΩ(at 500VDC megger)
Dielectric strength		2500VAC 50/60Hz for 1 minute
Vibration		1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock		500m/s²(approx. 50G) in each of X, Y, Z directions for 3 times
Indicator		Operation indicator(red LED)
Environment	Ambient temperature	-25 to 70°C, storage: -30 to 80°C
	Ambient humidity	35 to 95%RH, storage: 35 to 95%RH
Protection circuit		Surge protection circuit
Protection		IP67(IEC standard)
Cable		ø4, 2-wire, 2m	ø5, 2-wire, 2m
		(For cable type, 300mm, M12 connector), (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25)
Meterial		Case/Nut: Teflon coated Brass Washer: Teflon coated Iron Sensing surface: Teflon Standard cable(Black): Polyvinyl chloride(PVC)
Insulation type		Double insulation or reinforced insulation(Mark:Dielectric strength between the measuring input part and the power part: 1.5kVAC)
Approval		CE
Weight^*2		Approx. 78g(approx. 66g)	Approx. 118g(approx. 106g)	Approx. 207g(approx. 170g)
1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance. 2: The weight with packaging and the weight in parentheses is only unit weight. * Environment resistance is rated at no freezing or condensation.
