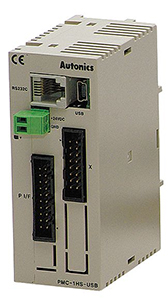

Autonics PMC-1HS-USB Motion Controller

Name: Autonics PMC-1HS-USB Motion Controller
Brand: Autonics
SKU: AutonicsPMC-1HS-USB
Price: 555.00 USD
Availability: InStock

0 reviews | Model: Autonics PMC-1HS-USB

Compare

Motion Controller, 1-Axis control, USB/RS232C Communication, 24 VDC

View Product Details

Your Price: $555.00

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

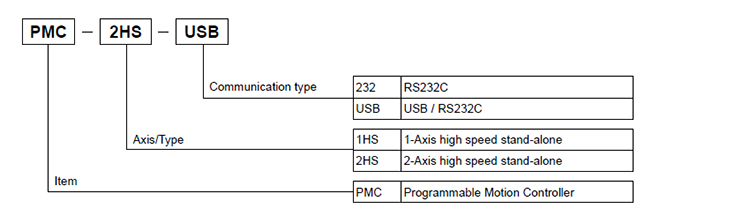

Ordering Information

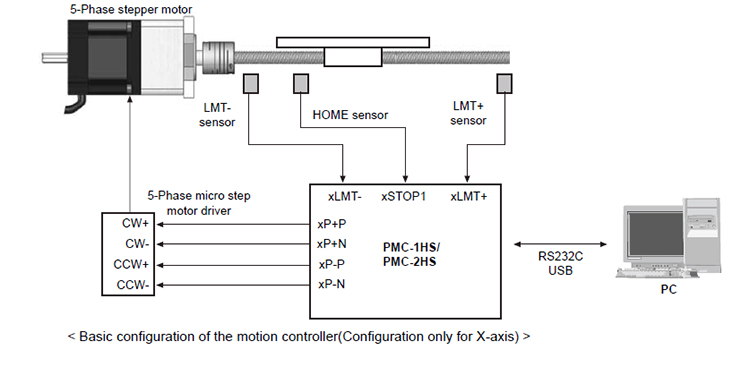

Connections

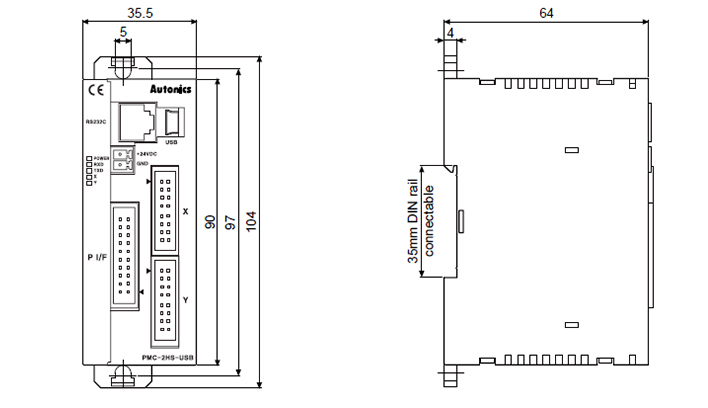

Dimensions

General Specifications
Model	PMC-1HS-USB
Control axis	1-Aixs
Motor for control	Pulse string input stepper motor or servo motor
Power Supply	24VDC ±10%
Power Consumption	Max. 6w
Operation mode	Scan / Continuous / Index / Program
Positioning type	Absolute position / Incremental position
Index step numbers	64 indexes per each axis
Positioning Range	-8,388,608 to 8,388,607 (Available pulse scaling function)
Drive speed numbers	4EA
Drive speed	1 pps to 4 Mpps (1 to 8,000 x Magnification 1 to 500)
Output pulse type	2 pulse output(Line driver)
Home Search Mode	High speed near home search (step1) Low speed home search (step2) Low speed encoder Z-phase search (step3) High speed offset movement(step4) Configuring the detection method and enable/disable in each step.
Program Function
Memory	EEPROM
Step	64 Steps
Control	ABS, INC, HOM, IJP, OUT, OTP, JMP, REP, RPE, END, TIM, NOP (12 EA)
Start	Power ON program auto-start function
Home Search	Power ON home search auto-start function
