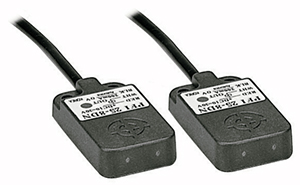

| General Specifications |
| Model |

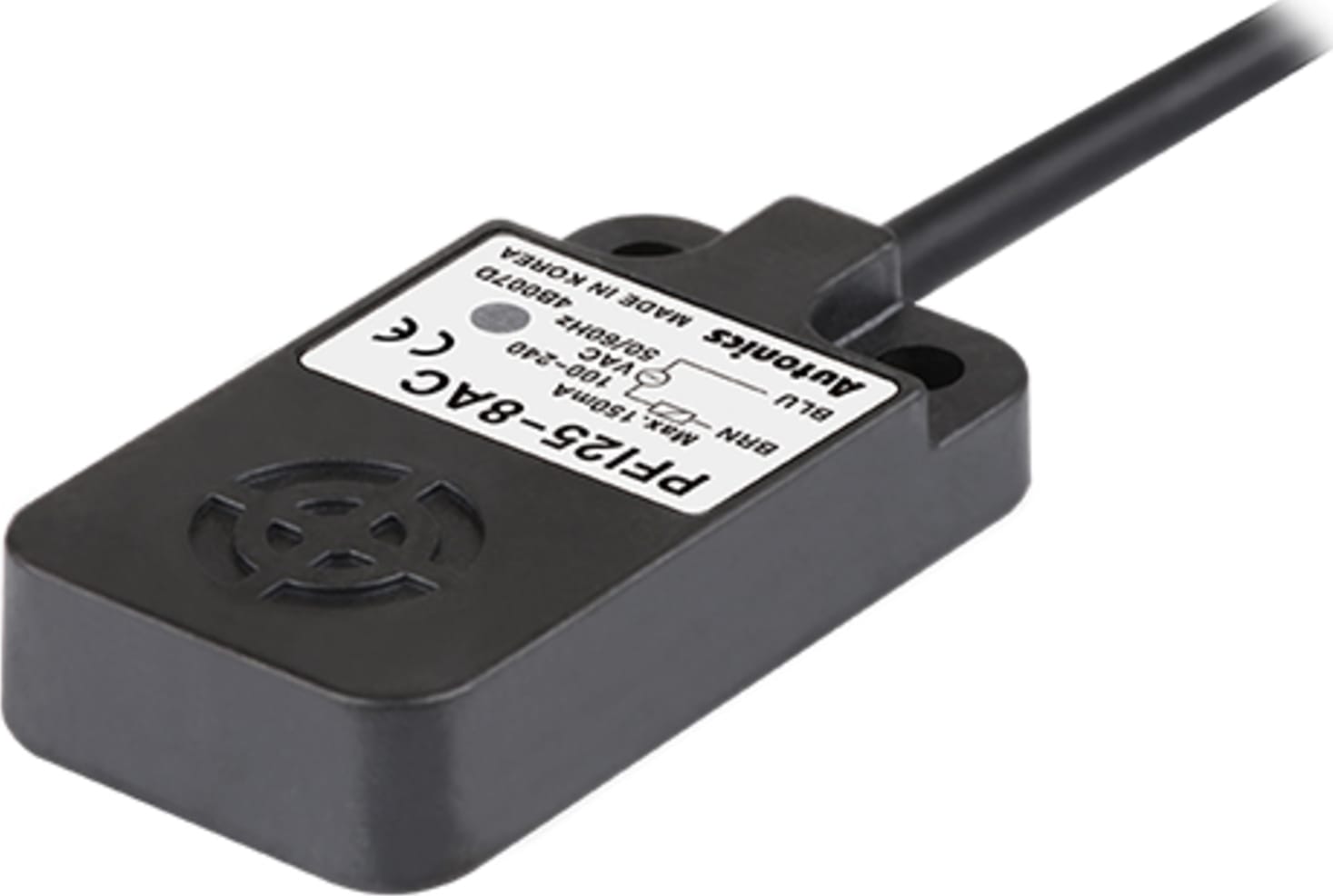

PFI25-8DN
PFI25-8DN2
PFI25-8DP
PFI25-8DP2 |
PFI25-8AO
PFI25-8AC |
| Sensing side |
Upper side |

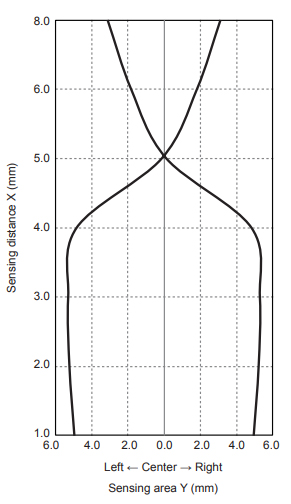

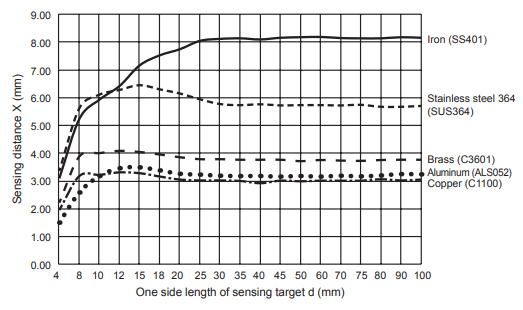

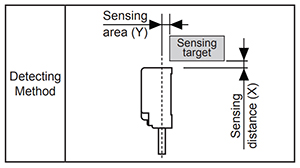

| Sensing distance |
8mm |
| Hysteresis |
Max. 10% of sensing distance |
| Standard sensing target |
25×25×1mm (iron) |
| Setting distance |
0 to 5.6mm |
| Power supply (operating voltage) |
12-24VDC
(10-30VDC) |
100-240VAC~
(85-264VAC~) |
| Current consumption/ Leakage current |
Max. 10mA |
Max. 2.5mA |
| Response frequency※1 |
200Hz |
20Hz |
| Residual voltage |
Max. 1.5V |
Max. 10V |
| Affection by Temp. |
Max. ±10% for sensing distance at ambient temperature 20℃ |

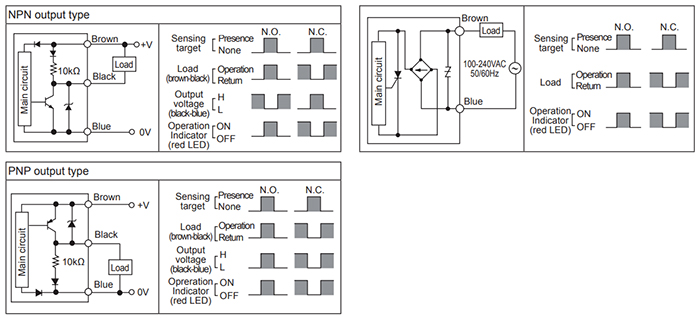

| Control output |
Max. 200mA |
5 to 150mA |
| Insulation resistance |
Over 50MΩ (at 500VDC megger) |
| Dielectric strength |
1,500VAC 50/60Hz for 1 minute |
2,500VAC 50/60Hz for 1 minute |
| Vibration |
1mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours |
| Shock |
500m/s² (approx. 50G) in each X, Y, Z direction for 3 times |
| Indicator |
Operation indicator: Red LED |
| Environment |
Ambient temperature |
-25 to 70℃, storage: -30 to 80℃ |
| Ambient humidity |
35 to 95%RH, storage: 35 to 95%RH |
| Protection circuit |
Surge protection circuit
reverse polarity protection circuit,
output short over current protection circuit |

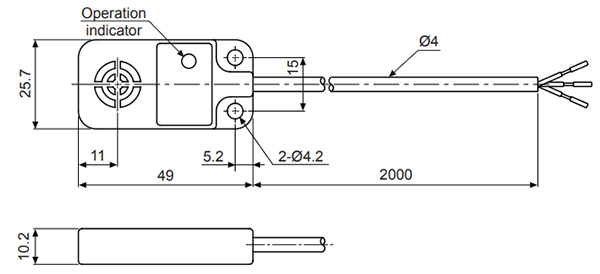

| Cable |
Ø4mm, 3-wire, 2m |
Ø4mm, 2-wire, 2m |
| AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator out diameter: Ø1.25 |
| Material |
Case: Poly Phenylene Sulfide, Standard cable (black): Polyvinyl chloride (PVC) |
| Protection structure |
IP67 (IEC standard) |
| Approval |
CE |
| Unit weight |
Approx. 70g |
※1: The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※Environment resistance is rated at no freezing or condensation. |
