Autonics PA10-VP - Multifunctional Sensor Controller

Name: Autonics PA10-VP - Multifunctional Sensor Controller
Brand: Autonics
SKU: AutonicsPA10-VP
Price: 86.00 USD
Availability: InStock

0 reviews | Model: Autonics PA10-VP

Autonics PA10 Multi-Functional Sensor Controller Series

Compare

Controller, Sensor, Power Amplifier, Multi-Function, General Purpose, PNP Input, NO/NC Output, 100-240 VAC

Controller, Sensor, Power Amplifier, Multi-Function, General Purpose, PNP Input, NO/NC Output, 100-240 VAC
13 kinds of various operation modes selected by DIP switches
High speed input response
Flip-flop mode for level control
Multifunctional unit with timer mode
DIN rail, Mounting to panel
Wide range of power supply(100-240VAC 50/60Hz)

View Product Details

Your Price: $86.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PA10-VP Controller, Sensor, Power Amplifier, Multi-Function, General Purpose, PNP ...	Autonics PA10-U Controller, Sensor, Power Amplifier, Multi-Function, 2 NPN Inputs (And/Or ...	Autonics PA10-V Controller, Sensor, Power Amplifier, Multi-Function, General Purpose, NPN ...	Autonics PA10-W Controller, Sensor, Power Amplifier, Multi-Function, 2 NPN Inputs (Indepen ...	Autonics PA10-WP Controller, Sensor, Power Amplifier, Multi-Function, 2 PNP Inputs (Indepe ...
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PA10-VP - Multifunctional Sensor Controller

High Performance Sensor Controller

13 kinds of various operation modes selected by DIP switches
High speed input response
Flip-flop mode for level control
Multifunctional unit with timer mode
DIN rail, Mounting to panel
Wide range of power supply(100-240VAC 50/60Hz)

The PA10 series sensor controllers offer high performance control with various operation modes. The PA10 series features high-speed output response and convenient installation with both DIN rail and panel mount options. The PA10 series is available in general-purpose type, 2-channel type, and high performance type models.

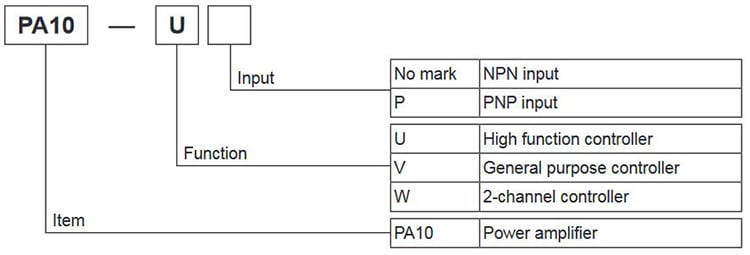

Ordering Information:

Model		PA10-U	PA10-V	PA10-VP	PA10-W	PA10-WP
Power supply		100-240VAC 50/60Hz
Allowable operation voltage		90 to 110% of rated voltage
Power consumption		100VAC 50/60Hz: Max. 9VA (Condotion:12VDC/200mA resistive load), 240VAC 50/60Hz: Max. 10VA
Power for external sensor		12VDC ±10% Approx. 200mA
Input (IN1) (IN2)		Selectable NORM/INV. Selectable OR/AND operation for IN1, IN2 input. Selection function for IN2 derivative action.	Selectable NORM/INV. Operation for IN1, IN2 AND.		Selectable NORM/INV. Operation for IN1, IN2 AND.
		NPN input type	NPN input type	NPN input type	NPN input type	NPN input type
Input type		• PA10-U (No-voltage input) Impedance at short-circuit: Max. 680Ω, Residual voltage at short-circuit: Max. 0.8V, Impedance at open: Min. 100kΩ • PA10-V/PA10-W (No-voltage input) Impedance at short-circuit: Max. 300Ω, Residual voltage at short-circuit: Max. 2V, Impedance at open: Min. 100kΩ • PA10-VP/PA10-WP (Voltage input) Input impedance: 5.6kkΩ, "H" level voltage:5-30VDC, "L" level voltage: 0-2VDC
Output	Contact Output	OUT: 250VAC 3A (resistive load)			OUT1, OUT2: 250VAC 3A (resistive load)
	Solid-State Output	O.C OUT1/O.C OUT2: NPN open collector output Max. 30VDC 100mA	O.C OUT: NPN open collector output Max. 30VDC 100mA		-----
Response time		Input: Min. 2µs, Relay contact output: Min. 10ms, Transistor output: Min. 0.5µs (When it is encoder mode)
Time setting function by each mode * Only for PA10-U	Have	ON Delay Mode One-Shot Delay Mode Flicker One-Shot Mode High-Speed Detection Mode OFF Delay Mode Flicker Mode Low-Speed Detection Mode ON/OFF Delay Mode
	None	Normal Mode Flip-Flop Mode Encoder (Mode 9 to 11)
Relay Life Cycle	Mechanical	Min. 10,000,000 operations
	Electrical	Min. 100,000 operations (250VAC 3A resistive load)
Dialectric Strenght		2000VAC 50/60Hz for 1 minute
Insulation Resistance		Min. 100MΩ (at 500VDC megger)
Environment	Ambient Temp.	-10 to 55°C, storage: -25 to 60°C
	Ambient Humi.	35 to 85%RH, storage: 35 to 85%RH
Unit Weight		Approx. 150g			Approx. 160g
If the load is connected over 200mA at the sensor output, it may cause mechanical trouble. Environment resistance is rated at no freezing or condensation.
