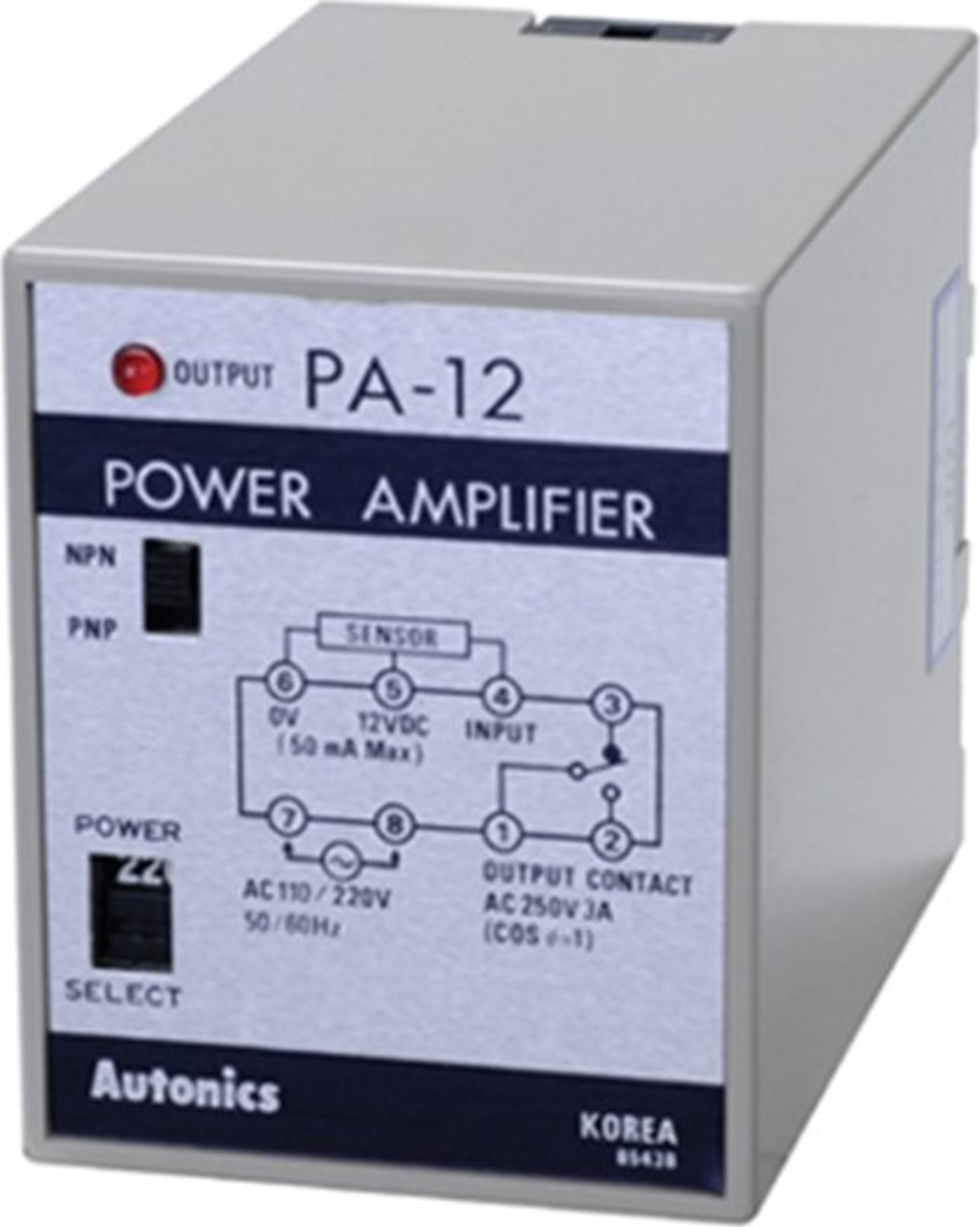

Autonics PA-12-PG - 8-Pin Plug Type Sensor Controller

Name: Autonics PA-12-PG - 8-Pin Plug Type Sensor Controller
Brand: Autonics
SKU: AutonicsPA-12-PG
Price: 194.00 USD
Availability: InStock

0 reviews | Model: Autonics PA-12-PG

Compare

Controller, Sensor, NPN open collect Input, NPN Open collect output, Selectable up to 99 pulses, 110 and 220 VAC

Controller, Sensor, NPN open collect Input, NPN Open collect output, Selectable up to 99 pulses, 110 and 220 VAC
Selectable use of 110/220VAC
Selectable use of NPN, PNP input
Able to drive loads up to 3A, 250VAC with proximity sensor or photo sensor input
Convenient to mount on socket by plug in type
Output relay with both N.O. and N.C. contacts

View Product Details

Your Price: $194.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics PA-12-PG Controller, Sensor, NPN open collect Input, NPN Open collect output, Sel ...	Autonics PA-12-PGP Controller, Sensor, PNP open collect Input, PNP Open collect output, Se ...	Autonics PA-12 Controller, Sensor, NPN and PNP Input, SPDT NO/NC Output, 110 and 220 VAC
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Autonics PA-12-PG - 8-Pin Plug Type Sensor Controller

Selectable use of 110/220VAC
Selectable use of NPN, PNP input
Able to drive loads up to 3A, 250VAC with proximity sensor or photo sensor input
Convenient to mount on socket by plug in type
Output relay with both N.O. and N.C. contacts

The Autonics PA-12 series sensor controllers feature 8-pin plugs for simple socket plug-in type connection. The sensor controllers offer dual 110/220 VAC voltage, for application in diverse settings. The series also offers high contact capacity and options for N.O. or N.C. relay outputs. Users can easily switch between NPN and PNP inputs using the attached conversion switch.

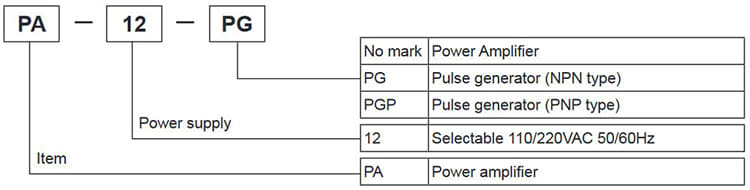

Ordering Information:

Model		PA-12	PA-12-PG	PA-12-PGP
Type		Selectable NPN/PNP	NPN open collector output	PNP open collector output
Power Supply		Selectable 110/220VAC 50/60Hz	110/220VAC 50/60Hz
Power Consumption		Approx. 4VA
Power for external sensor		12VDC 50mA	12VDC ±10% 30mA
Input Signal	PNP	High level: 7-12VDC, Low level: 0-5VDC	High Level["H"]: 7-12VDC, Low Level["L"]: 0-5VDC
	NPN	Short-circuit impedance: Max. 1kΩ, Residual voltage: Max. 2VDC, Open-circuit impedance: Min. 100kΩ
Response Time	Input	Min. 0.2ms
	Output	Min. 10ms
Input Resistance		10kΩ	-----	-----
Control output		Contact composition: SPDT (1a1b) Contact capacity: 250VAC 3A (For resistive load)	NPN open collector output	PNP open collector output
			Allowable input voltage: Max. 30VDC, Rated current: Max. 50mA
Environment	Ambient Temp.	-10 to 50°C
	Ambient Humi.	45 to 85%RH
Relay Life Cycle	Mechanical	Min. 10,000,000 operations
	Electrical	Min. 100,000 operations (250VAC 3A resistive load)
Unit Weight		Approx. 269g
Environment resistance is rated at no freezing or condensation.

Tech Specs

Test Equipment General Attributes
Country of Origin	Korea
