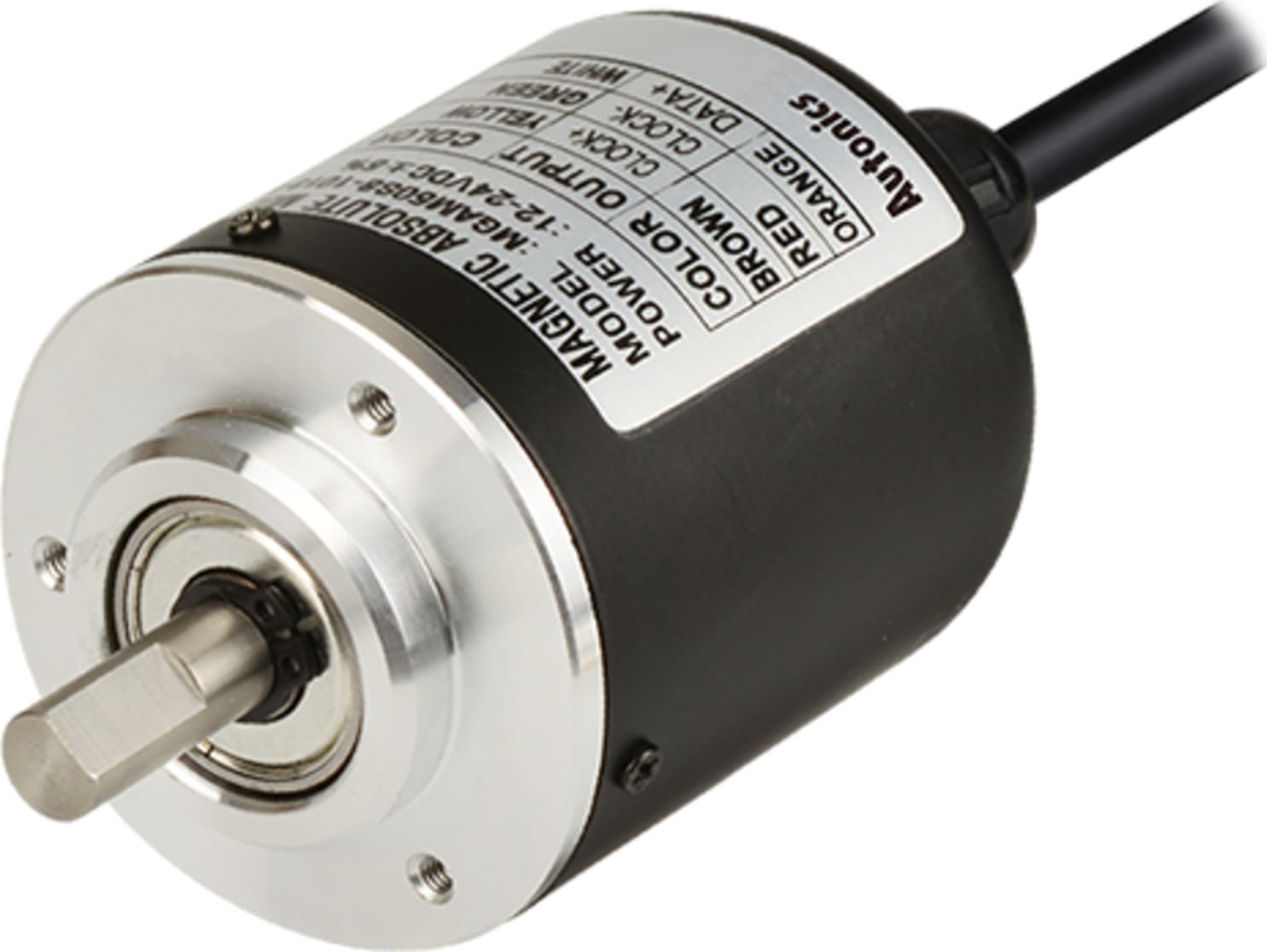

Autonics MGAM50S8-1013-B-F-S-24 Rotary Encoder

Name: Autonics MGAM50S8-1013-B-F-S-24 Rotary Encoder
Brand: Autonics
SKU: AutonicsMGAM50S8-1013-B-F-S-24
Price: 411.00 USD
Availability: InStock

0 reviews | Model: Autonics MGAM50S8-1013-B-F-S-24

Compare

Magnetic Multi-Turn Absolute Rotary Encoder, 0mm, 8mm Shaft, Single Turn 10Bit(1024 Division), Multi-Turn 13Bit(8192 Revolution), Binary Code, Output Value Increase at CW Direction, SSI Line Drive OutPut, 12-24VDC

Higher resistant to vibration and impact by magnetic elements than optical encoder
Total 23-bit resolution (8,388,608-division) of 10-bit single-turn (1,024-division) and 13-bit multi-turn (8,192-revolution)
Compact size of Ø50mm
Parallel data/SSI data transmission type
Maximizing users convenience with over flow alarm (OVF) function
Power supply: 12-24VDC ±5%
Protection structure IP50 (IEC standard)

View Product Details

Your Price: $411.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Shaft Type Ø50mm Magnetic Multi-turn Absolute Rotary Encoder

Magnetic Multi-Turn Absolute Rotary Encoder, 0mm, 8mm Shaft, Single Turn 10Bit(1024 Division), Multi-Turn 13Bit(8192 Revolution), Binary Code, Output Value Increase at CW Direction, SSI Line Drive OutPut, 12-24VDC
Compact size of Ø50mm

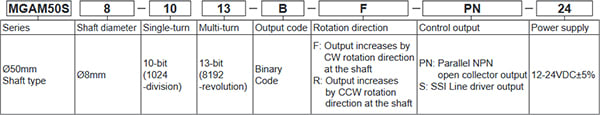

Ordering Information

Synchronous Serial Interface (SSI) Output Timing Diagram

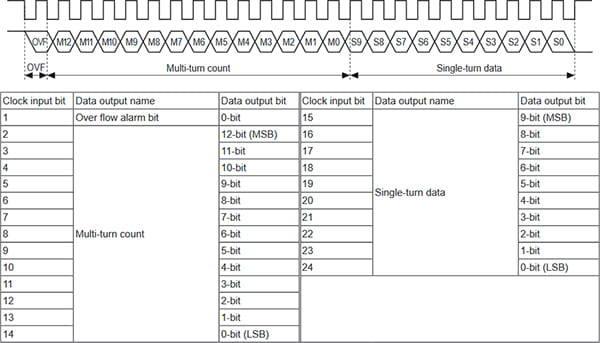

Synchronous Serial Interface (SSI) Data Output

General Specifications
Shaft outer diameter	Ø8mm
Max. allowable revolution	3000rpm
Starting torque	Max. 70gf.cm(max. 0.0069N.m)
Resolution	Single-Turn: 1024-division, Multi-Turn: 8192-revolution
Output code	Binary Code
Rotating direction	CW
Control output	SSI(synchronous serial interface)
Power supply	12-24VDC ±5%(ripple P-P: max. 5%)
Connection type	Axial cable type
Approval	CE
Electrical specification Output Positioning error	±1-bit(LSB: Least Significant Bit)
Environment Ambient temperature	-10 to 70°C, storage: -25 to 85°C
Environment Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
Accessories	Bracket, Coupling
Weight	Approx. 391g(approx. 261g)
