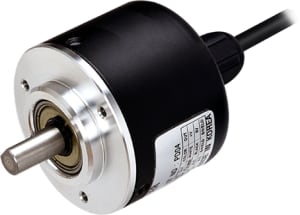

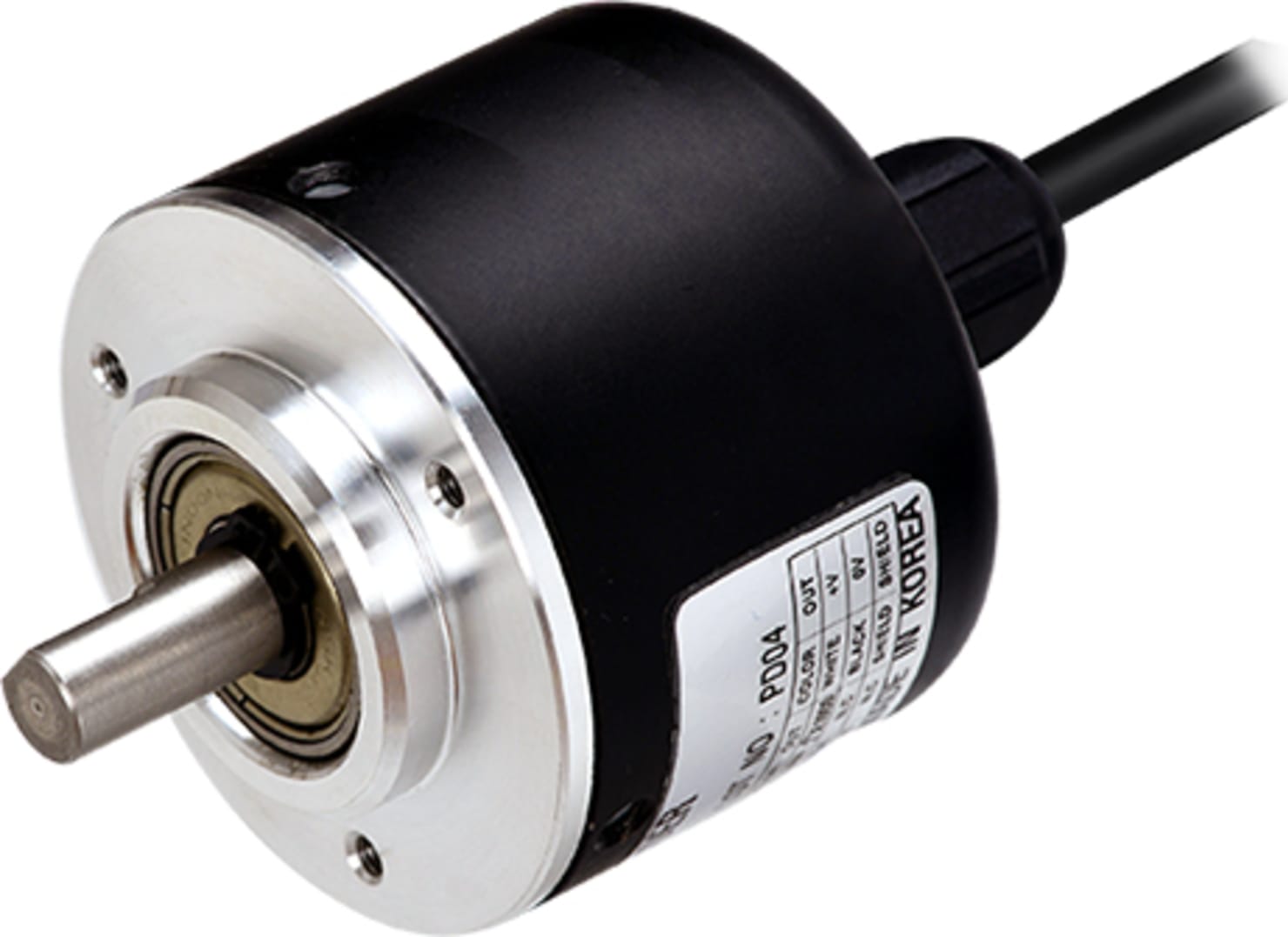

Autonics MGA50S8-1024-3F-N-5 Magnetic Single-turn Absolute Rotary Encoder

Name: Autonics MGA50S8-1024-3F-N-5 Magnetic Single-turn Absolute Rotary Encoder
Brand: Autonics
SKU: AutonicsMGA50S8-1024-3F-N-5
Price: 243.00 USD
Availability: InStock

0 reviews | Model: Autonics MGA50S8-1024-3F-N-5

Compare

Magnetic Absolute Rotary Encoder, 0mm, 8mm Shaft, 1024 PPR, Gray Code, Output Value Increase at CW Direction, NPN Open Collector Output, 5VDC

Higher resistant to vibration and impact by magnetic elements than optical encoder
Various output code: BCD, Binary, Gray code
Various and high resolution (32, 40, 45, 48, 64, 90, 128, 180, 256, 360, 512, 720, 1024-division)
Power supply: 5VDC ±5%, 12-24VDC ±5%
Protection structure IP50 (IEC standard)

View Product Details

Your Price: $243.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Shaft Type Ø50mm Magnetic Single-turn Absolute Rotary Encoder

Magnetic Absolute Rotary Encoder, 0mm, 8mm Shaft, 1024 PPR, Gray Code, Output Value Increase at CW Direction, NPN Open Collector Output, 5VDC
Various output code: BCD, Binary, Gray code

Ordering Information

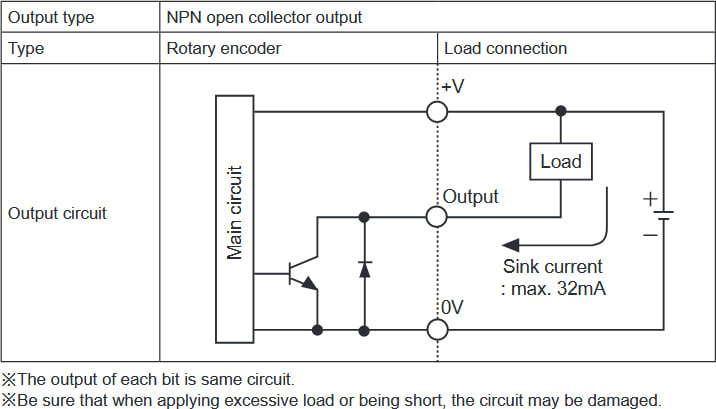

Control Output Circuit

Output Waveform

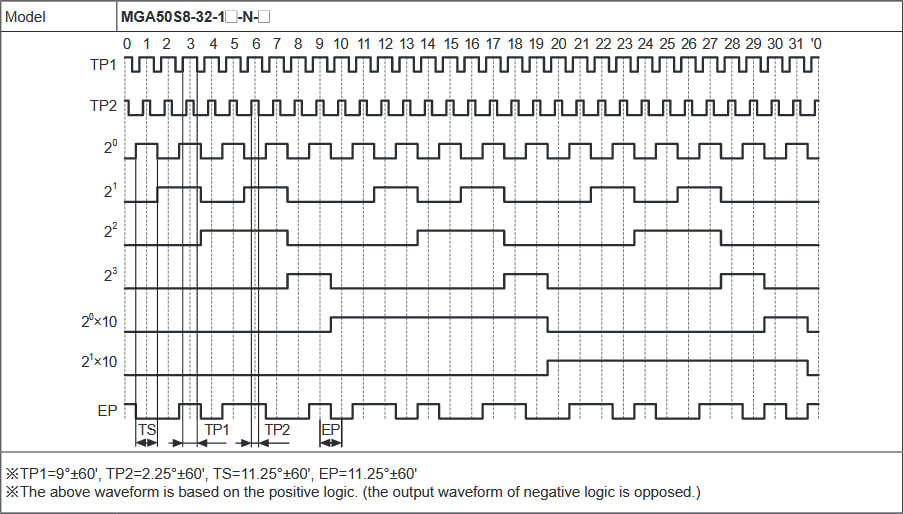

32-division (BCD code output)

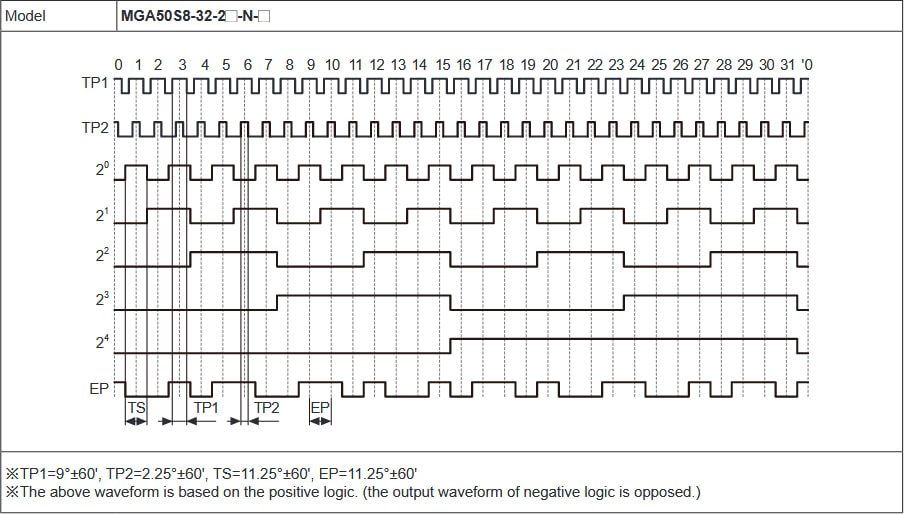

32-division (Binary code output)

General Specifications
Shaft outer diameter	Ø8mm
Max. response frequency	30kHz
Max. allowable revolution	3000rpm
Starting torque	Max. 70gf.cm(max. 0.00686N.m)
Resolution	1024P/R
Output code	Gray Code
Rotating direction	CW
Control output	NPN open collector
Power supply	5VDC ±5%(ripple P-P: max. 5%)
Connection type	Axial cable type
Protection structure	IP50
Approval	CE
Electrical specification Output Positioning error	±1-bit(LSB: Least Significant Bit)
Electrical specification Output Output phase/Output angle	TS: 0.703°±15'(10-bit)
Environment Ambient temperature	-10 to 70°C, storage: -25 to 85°C
Environment Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
Accessories	Bracket, Coupling
Weight	Approx. 400g(approx. 270g)
