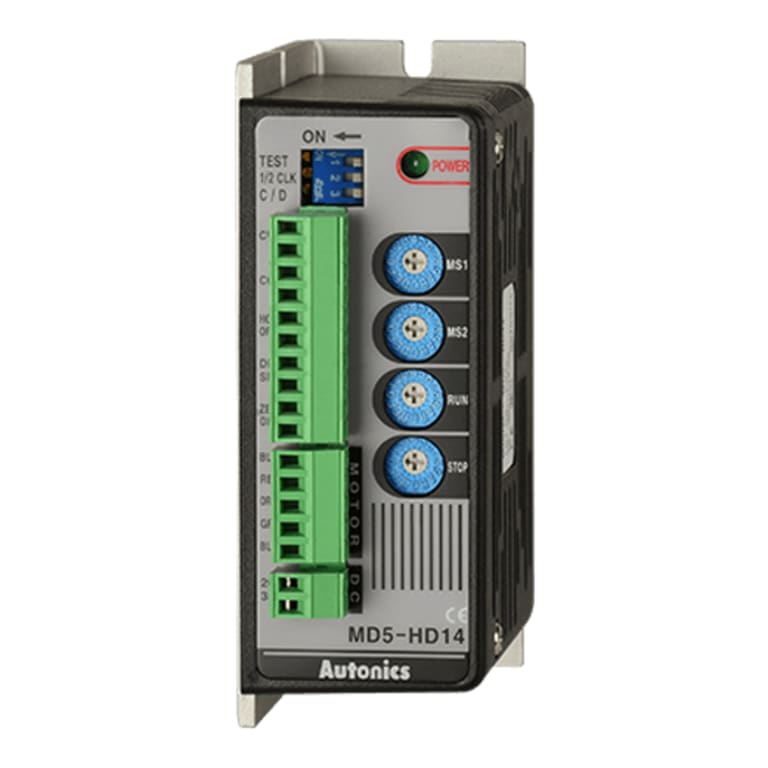

Autonics MD5-HD14 - 5-Phase Micro Stepper Motor Driver, 0.4-1.4A/ Phase, 0.72-0.00288 per Step, 1 MHz, 20-35 VDC, 3A

Name: Autonics MD5-HD14 - 5-Phase Micro Stepper Motor Driver, 0.4-1.4A/ Phase, 0.72-0.00288 per Step, 1 MHz, 20-35 VDC, 3A
Brand: Autonics
SKU: AutonicsMD5-HD14
Price: 397.05 USD
Availability: InStock

0 reviews | Model: Autonics MD5-HD14

Autonics MD5-HD14 - 5-Phase Stepper Motor Driver

Compare

Driver, 5 Phase Stepper, 0.4-1.4A/ Phase, 0.72-0.00288 per Step, 1 MHz, 20-35 VDC, 3A

0.4-1.4A/ Phase, 0.72-0.00288 per Step, 1 MHz, 20-35 VDC, 3A
High torque & high speed performance
Bipolar constant-current pentagon driver method
Includes auto current-down circuit and self-diagnosis function
Photocoupler input insulation method to minimize the effects from external noise
Full & half step and micro step
Low speed rotation and high accuracy controlling with microstep-driving (MD5-HD14, MD5-HF14, MD5-HF14-AO, MD5-HF28) [Max. resolution - 250 division / In case of 5-phase stepper motor of which basic step angle is 0.72°, it enables to control up to 0.00288° per pulse and it requires 125,000 pulses per rotation.]

View Product Details

List Price: $481.00

Your Price: $397.05

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics MD5-HD14

Bipolar constant-current pentagon driver method
Includes auto current-down circuit and self-diagnosis function
Max. 250 division 0.00288 of 0.72 basic step angle
Photocoupler input insulation method
Full & half step and micro step

Driver, 5 Phase Stepper, 0.4-1.4A/ Phase, 0.72-0.00288 per Step, 1 MHz, 20-35 VDC, 3A

The MD5 series 5-phase stepper motor drivers allow extremely precise motor control with low mechanical noise and low vibration operation. The isolated photocoupler input design minimizes influence from electrical noise. The motors also feature various built-in functions including auto current down and self-diagnosis. The microstepping drive models offer low-speed rotation and extreme precision with up to 250 division control.

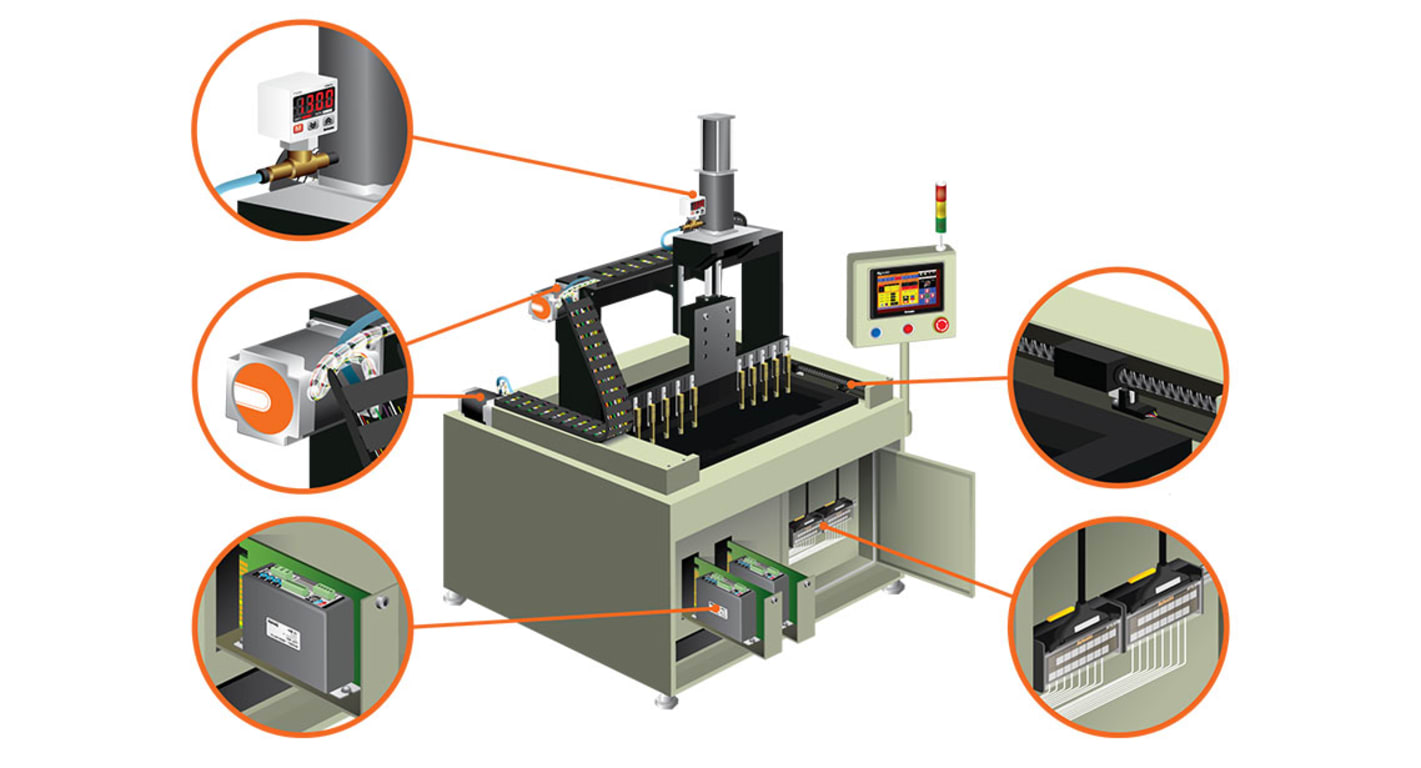

Mobile LCD Manufacturing

Pressure sensors, 5-phase stepper motors and motor drivers, photomicro sensors, interface terminal blocks, and logic panels are used during inspection process of LCD displays used in mobile electronic devices.

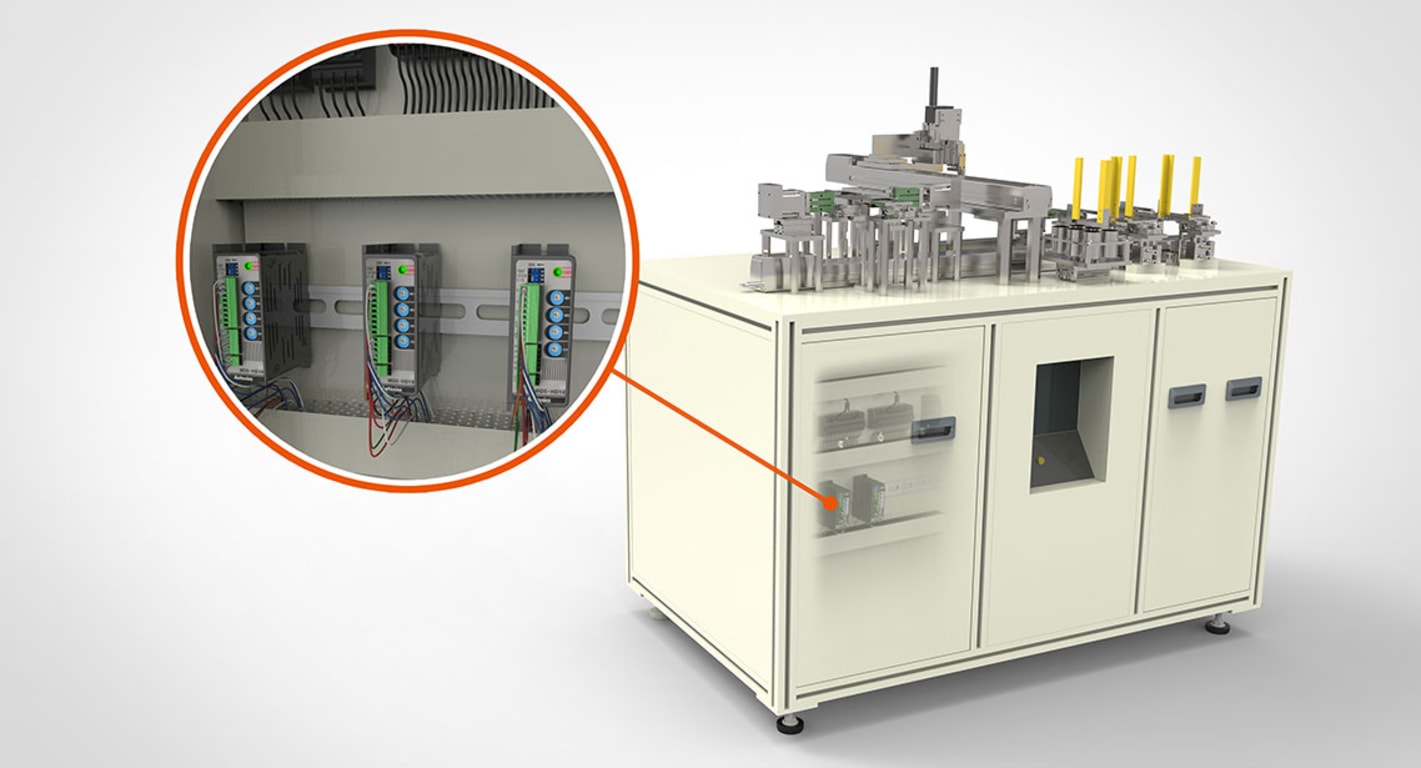

Dispenser Machines

5-phase micro step motor drivers are used to control the motion rail shafts in dispenser machines.

MD5-HD14 Specifications
Model		MD5-HD14	MD5-HF14	MD5-HF14 -AO	MD5-HF28	MD5-ND14
Power Supply		20-35VDC^*1	100-220VAC 50/60Hz			20-35VDC^*1
Allowable voltage range		90 to 110% of the rated voltage
Max. Current Consumption^*2		3A			5A	3A
Run Current^*3		0.4-1.4A/Phase			1.0-2.8A/Phase	0.5-1.5A/Phase
Stop Current		27 to 90% of RUN current (set by STOP current switch)				25 to 75% of RUN current (set by STOP current volume)
Drive Method		Bipolar constant current pentagon drive
Basic step angle		0.72°/Step
Resolution		1, 2, 4, 5, 8, 10, 16, 20, 25, 40, 50, 80, 100, 125, 200, 250-division (0.72° to 0.00288°/Step)				1, 2-division (0.72° , 0.36°/Step)
Input pulse characteristic	Pulse Width	Min. 1µs (CW, CCW), Min. 1ms (HOLD OFF)				Min. 10µs (CW, CCW) Min. 1ms (HOLD OFF)
	Duty rate	50% (CW, CCW)
	Rising/Falling Time	Below 130ns (CW, CCW)
	Pulse input voltage	[H]: 4-8VDC, [L]: 0-0.5VDC
	Pulse input current	7.5-14mA (CW, CCW), 10-16mA (HOLD OFF, DIVISION SELECTION, ZERO OUT)⁴
	Max. input pulse frequency^*5	Max. 500kHz (CW, CCW)				Max. 50kHz (CW, CCW)
Input resistance		270Ω (CW, CCW), 390Ω (HOLD OFF, DIVISION SELECTION), 10Ω (ZERO OUT)		270Ω (CW, CCW), 390Ω (HOLD OFF), 10Ω (ALARM)	270Ω (CW, CCW), 390Ω (HOLD OFF, DIVISION SELECTION), 10Ω (ZERO OUT)	390Ω (CW, CCW, HOLD OFF)
Insulation resistance		Over 100MΩ (at 500VDC megger, between all terminals and case)
Dielectric strength		1000VAC 50/60Hz for 1min (between all terminals and case)
Noise immunity		±500V the square wave noise (pulse width: 1µs) by the noise simulator	±2000V the square wave noise (pulse width: 1µs) by the noise simulator			±500V the square wave noise (pulse width: 1µs) by the noise simulator
Vibration	Mechanical	1.5mm amplitude at frequency of 5 to 60Hz (for 1 min) in each X, Y, Z direction for 2 hours
	Malfunction	1.5mm amplitude at frequency of 5 to 60Hz (for 1 min) in each X, Y, Z direction for 10 min
Environment	Ambient temp.	0 to 40°C , storage: -10 to 60 °C	0 to 50°C, storage: -10 to 60 °C			0 to 40°C, storage: -10 to 60 °C
	Ambient humi.	35 to 85%RH, storage: 35 to 85%RH
Weight^*6		Approx. 327.5g (approx. 220g)	Approx. 840g (approx. 680g)	Approx. 820g (approx. 660g)	Approx. 1.35kg (approx. 1.2kg)	Approx. 183g (approx. 130g)
^1:When using over 30VDC power supply, torque characteristics are improved but the driver temperature raise. The unit should be installed at the well ventilation environment. ^2:Based on ambient temperature 25 °C , ambient humidity 55%RH. ^3:RUN current varies depending on the input RUN frequency and max. RUN current at the moment varies also varies depending on the load. ^4:In case of MD5-HF14-AO, MD5-ND14, there are no DIVISION SELECTION, ZERO OUT function. ^5:Max. input pulse frequency is max. frequency to be input and is not same as max. pull-out frequency or max. slewing frequency ^6:The weight includes packaging. The weight in parenthesis is for unit only. *: Environment resistance is rated at no freezing or condensation.
