Autonics MD2U-ID20 - 2-Phase Stepper Motor Driver, 0.5-2.0A/Phase, 24-35VDC, 3A, Unipolar, Intelligent

Name: Autonics MD2U-ID20 - 2-Phase Stepper Motor Driver, 0.5-2.0A/Phase, 24-35VDC, 3A, Unipolar, Intelligent
Brand: Autonics
SKU: AutonicsMD2U-ID20
Price: 227.00 USD
Availability: InStock

0 reviews | Model: Autonics MD2U-ID20

Autonics MD2U-ID20 Stepper Motor Drivers

Compare

Driver, 2 Phase Stepper, 0.5-2.0A/Phase, 20 - 35VDC, 3A, Unipolar, Intelligent

2 Phase Stepper, 0.5-2.0A/Phase, 3A, Intelligent
Unipolar constant current drive method
STOP current setting provides holding torque (brake function)
Isolated photocoupler input design minimizes influence from electrical noise
Power supply: 24-35VDC

View Product Details

Your Price: $227.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

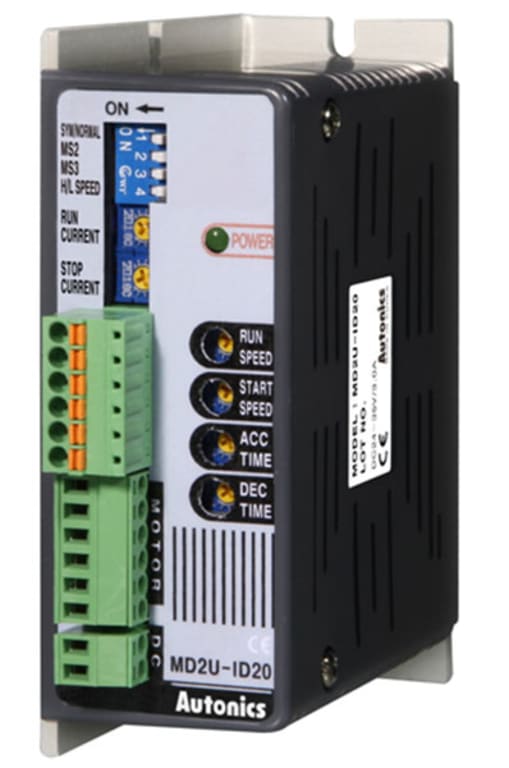

Autonics MD2U-ID20

Unipolar constant current drive type
Enable to brake when it stops by STOP current adjustment
Insulate using photocoupler to minimize the influence by external noise
Power supply: 24-35VDC

Driver, 2 Phase Stepper, 0.5-2.0A/Phase, 20 - 35VDC, 3A, Unipolar, Intelligent

The MD2 series 2-phase stepper motor drivers allow extremely precise motor control with low mechanical noise and low vibration operation. The isolated photocoupler input design minimizes influence from electrical noise. Low vibration operation is possible with the microstepping drive function (MD2U-MD20).

General Specifications
Model		MD2U-MD20	MD2U-ID20
Power supply^*1		24-35VDC
Allowable voltage range		90 to 110% of the rated voltage
Max. current consumption ^*2		3A
RUN current^*3		0.5 to 2A / Phase
STOP current		20 to 70% of RUN current (set by STOP current volume)
Drive method		Unipolar constant current drive type
Basic step angle		1.8 °/Step
Resolution		1, 2, 4, 5, 8, 10, 16, 20-division (1.8 °to 0.09 °/Step)
Input Pulse Spec.	Input pulse width	Min. 10μs (CW, CCW), 1ms(HOLD OFF)	_______
	Duty rate	50%(CW, CCW)
	Rising/Falling time	Max. 0.5μs (CW, CCW)
	Pulse input voltage	[H] 4-8VDC, [L] 0-0.5VDC
	Max. input current	4mA(CW, CCW), 10mA(HOLD OFF)
	Max. input pulse frequency ^*4	Max. 50kHz (CW, CCW)
Input resistance		300Ω(CW, CCW), 390Ω(HOLD OFF)	3.3kΩ (CW/CCW, RUN/STOP, HOLD OFF)
Insulation resistance		Min. 200MΩ (at 500VDC megger, between all terminals and case)
Dielectric strength		1000VAC 50/60Hz for 1 minute (between all terminals and case)
Noise resistance		±500V the square wave noise (pulse width: 1μs ) by the noise simulator
Vibration		1.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y, Z direction for 2 hours
Shock	Vibration	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment	Ambient temperature	0 to 50 °C , storage: -10 to 60 °C
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Weight ^*5		Approx. 295g (approx. 180g)	Approx. 303g (approx. 190g)
1: When using over 30VDC power supply, torque characteristics are improved but the driver temperature raise. The unit should be installed at the well ventilation environment. 2: Based on ambient temperature 25 °C , ambient humidity 55%RH. 3: RUN current varies depending on the input RUN frequency and max. RUN current at the moment also varies depending on the load. 4: Max. input pulse frequency is max. frequency to be input and is not same as max. pull-out frequency or max. slewing frequency . 5: The weight includes packaging. The weight in parentheses is for unit only . Environment resistance is rated at no freezing or condensation.
