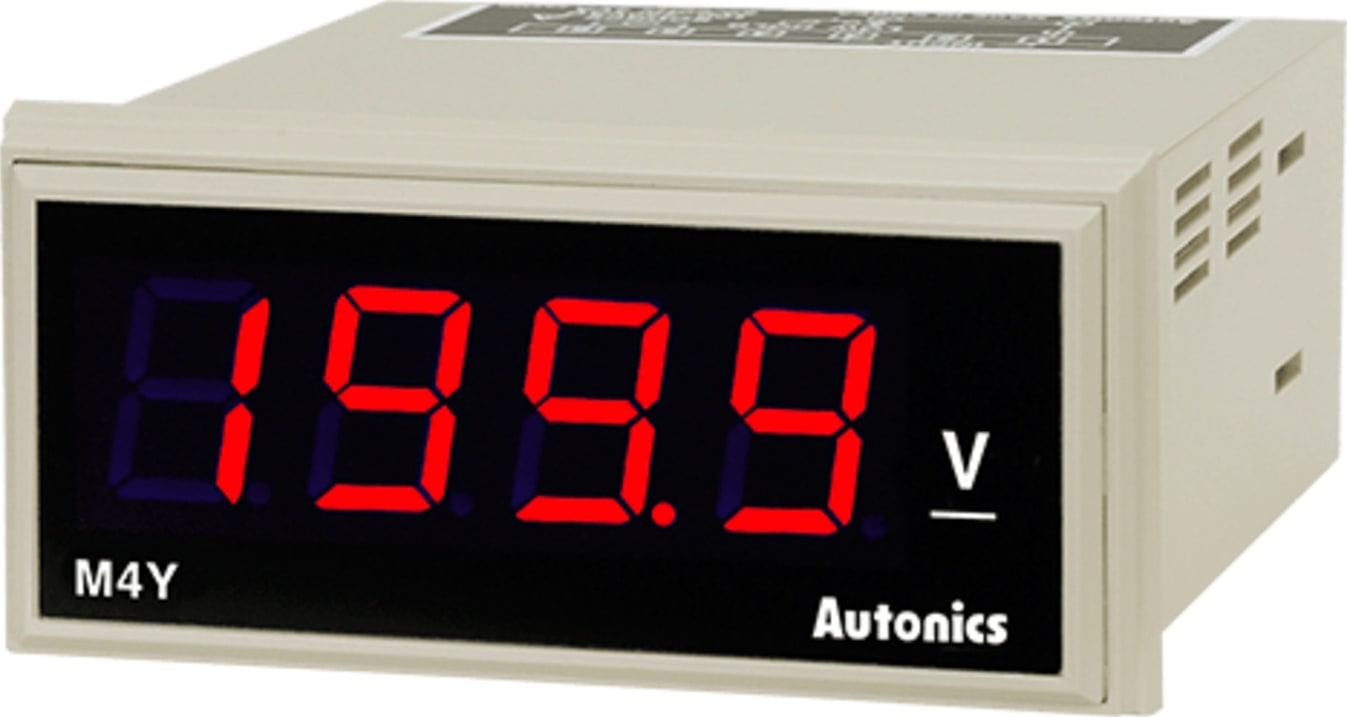

Autonics M4Y-DV-4 - Digital Voltmeter, DC voltage, AVG, 199.9V

Name: Autonics M4Y-DV-4 - Digital Voltmeter, DC voltage, AVG, 199.9V
Brand: Autonics
SKU: AutonicsM4Y-DV-4
Price: 87.00 USD
Availability: InStock

0 reviews | Model: Autonics M4Y-DV-4

Compare

Meter, DC Volts, LED, W72xH36mm, 3 1/2-Digit, 199.9V Full Scale, 100-240 VAC

Digital Voltmeter, DC voltage, AVG, 199.9V
Max display value: 1999
Auto-zero adjustment and hold display value function
7-segment LED display
DIN standard size models

View Product Details

Your Price: $87.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Autonics M4Y-DV-4 Meter, DC Volts, LED, W72xH36mm, 3 1/2-Digit, 199.9V Full Scale, 100-240 ...	Autonics M4Y-DV-1 Meter, DC Volts, LED, W72xH36mm, 3 1/2-Digit, 199.9mV Full Scale, 100-24 ...
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Autonics M4Y-DV-4

Max display value: 1999
Auto-zero adjustment and hold display value function
7-segment LED display
DIN standard size models

Digital Voltmeter, DC voltage, AVG, 199.9V

The M4Y/M4W/M5W/M4M series digital voltmeters can measure and display AC or DC voltage in numeric form. All models feature a 7-segment LED display for clear indication of measured values. The meters can display RMS or AVG values based on user preference (AC voltage). User-friendly functions including auto-zero adjustment and hold display value functions are included (except M5W). The meters are available in various standard DIN size cases for convenient installation.

General Specification
Classification		Indicator		Single preset output type	Dual preset output type
Measurement	DC, AC voltage	M4Y-DV-[] M4Y-AV -[] M5W-DV-[] M5W-AV-[]	M4W-DV- [] M4W-AV - [] M4M-DV-[] M4M-AV []-[]	M4W1P-DV-[] M4W1P-AV[]-[] M4M1P-DV-[] M4M1P AV[]-[]	M4W2P-DV-[] M4W2P-AV[]-[] M4M2P-DV-[] M4M2P-AV[]-[]
	DC, Current	M4Y-DA-[] M4Y-AA[]-[] M5W-DA-[] M5W-AA[]	M4W-DA-[] M4W-AA[]-[] M4M-DA-[] M4M-AA-[]	M4W1P-DA-[] M4W1P-AA[]-[] M4M1P-DA-[] M4M1P-AA[]-[]	M4W2P-DA-[] M4W2P-AA[]-[] M4M2P-DA-[] M4M2P-AA[]-[]
	AC power (0-10VDC)	M4Y-W-[] M5W-W-[]	M4W-W-[] M4M-W-[]	M4W1P-W-[] M4M1P-W-[]	M4W2P-W M4M2P-W
	rpm, speed (0-10VDC) (0-10VAC)	M4Y-T[]-[] M4Y-S [] -[] M5W-T-[] M5W-S-[]	M4W1P-T [] - [] M4W1P-S []-[] M4M1P-T-[] M4M1P-S-[]	M4W1P-W-[] M4M1P-W-[]	M4W2P-T[]-[] M4W2P-S[]-[] M4M2P-T-[] M4M2P-S-[]
	Power factor (DC4-20mA)		M4W-P (Refer to L-59)
Max. allowable input		150% for each input specification (At 400VAC:120%)
Power Supply	AC power	100-240VAC 50/60Hz	110/220VAC 50/60Hz, 110/220VAC 50/60Hz^*1
	DC power	5VDC(Except for M5W)^1 24-70VDC(Except for M5W)^1	24-70VDC^*1
Allowable voltage range		90 to 110% of rated voltage
Power Consumption	AC power	4VA		5VA
	DC power	2W		3W
Display method		7 Segment LED display
Character height		M4Y, M4W, M5W: 14mm / M4W1P, M4W2P, M4M, M4M1P, M4M2P: 10mm
Display Accuracy	AC power	F.S. ±0.5% rdg ±1digit
	DC power	F.S. ±0.2% rdg ±1digit
Sampling period		300ms
A/D conversion method		Dual slope integral method
Response time		2sec. (0 to Max.)
Display frequency		2.5 times/sec.
Contact capacity				Relay contact output: 250VAC 3A 1c	Relay contact output: 250VAC 3A 1c×2
Insulation resistance		100MΩ (at 500VDC megger)
Dielectric strength		2000VAC 50/60Hz for 1 minute
Noise strength		±1kV the square wave noise (pulse width: 1us) by the noise simulator
Vibration	Mechanical	.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 10 min
Shock	Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Relay Life Cycle	Mechanical			Min. 10,000,000 operations
	Malfunction			Min. 100,000 operations (250VAC 3A resistive load)
Environment	Ambient temperature	-10 to 50 °C , storage: -20 to 60 °C
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Unit weight		M4Y: Approx. 144g M5W: Approx. 172g	M4W: Approx. 168g M4M: Approx. 262g (M4M-P: Approx. 268g)	M4W1P: Approx. 253g M4M1P: Approx. 290g	M4W2P: Approx. 278g M4M2P: Approx. 316g
1: It is optional.(customizable) Environment resistance is rated at no freezing or condensation.
