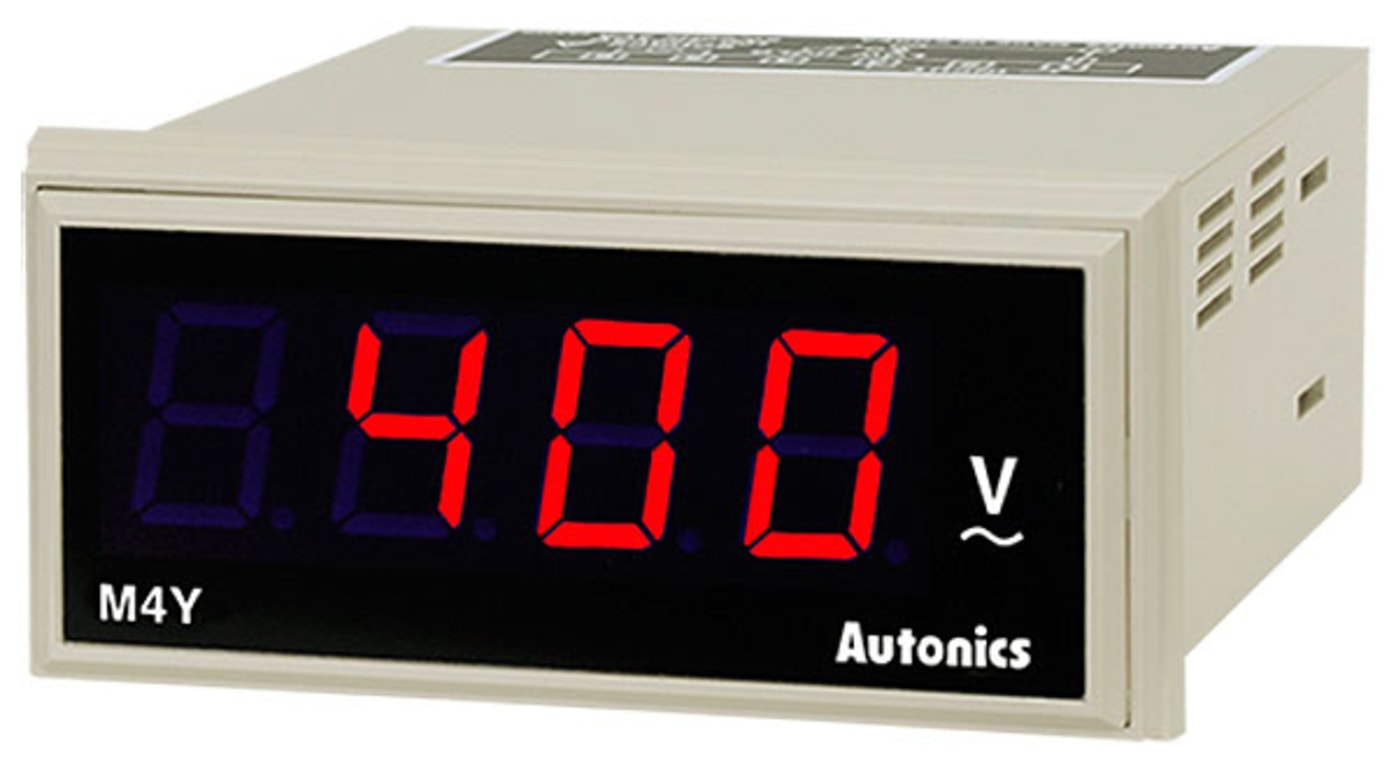

General Specification |
Max. allowable input |
150% for each input specification (At 400VAC:120%) |
Power Supply |
AC power |
100-240VAC 50/60Hz |
110/220VAC 50/60Hz,
110/220VAC 50/60Hz*1 |
DC power |
5VDC(Except for M5W)*1
24-70VDC(Except for M5W)*1 |
24-70VDC*1 |
Allowable voltage range |
90 to 110% of rated voltage |
Power Consumption |
AC power |
4VA |
5VA |
DC power |
2W |
3W |
Display method |
7 Segment LED display |
Character height |
M4Y, M4W, M5W: 14mm / M4W1P, M4W2P, M4M, M4M1P, M4M2P: 10mm |
Display Accuracy |
AC power |
F.S. ±0.5% rdg ±1digit |
DC power |
F.S. ±0.2% rdg ±1digit |
Sampling period |
300ms |
A/D conversion method |
Dual slope integral method |
Response time |
2sec. (0 to Max.) |
Display frequency |
2.5 times/sec. |
Contact capacity |
|
Relay contact output:
250VAC 3A 1c |
Relay contact output:
250VAC 3A 1c×2 |
Insulation resistance |
100MΩ (at 500VDC megger) |
Dielectric strength |
2000VAC 50/60Hz for 1 minute |
Noise strength |
±1kV the square wave noise (pulse width: 1us) by the noise simulator |
Vibration |
Mechanical |
.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 1 hour |
Malfunction |
0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 10 min |
Shock |
Mechanical |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
Malfunction |
100m/s² (approx. 10G) in each X, Y, Z direction for 3 times |
Relay Life Cycle |
Mechanical |
|
Min. 10,000,000 operations |
Malfunction |
|
Min. 100,000 operations (250VAC 3A resistive load) |
Environment |
Ambient temperature |
-10 to 50 °C , storage: -20 to 60 °C |
Ambient humidity |
35 to 85%RH, storage: 35 to 85%RH |
Unit weight |
M4Y: Approx. 144g
M5W: Approx. 172g |
M4W: Approx. 168g
M4M: Approx. 262g
(M4M-P: Approx. 268g) |
M4W1P: Approx. 253g
M4M1P: Approx. 290g |
M4W2P: Approx. 278g
M4M2P: Approx. 316g |
*1: It is optional.(customizable)
*Environment resistance is rated at no freezing or condensation. |
