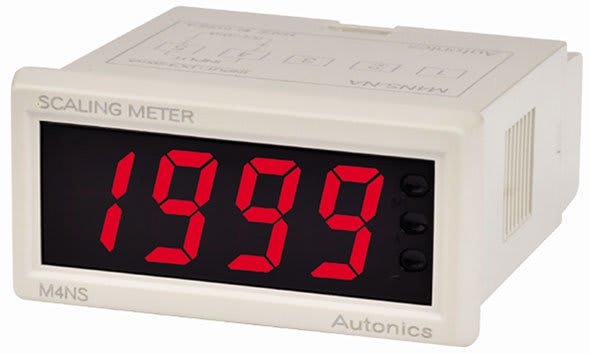

Autonics M4NS-NA - Digital Scaling Meter

Name: Autonics M4NS-NA - Digital Scaling Meter
Brand: Autonics
SKU: AutonicsM4NS-NA
Price: 81.00 USD
Availability: InStock

0 reviews | Model: Autonics M4NS-NA

Autonics M4NS Series Digital Scaling Meter

Compare

Meter, Digital Scaling, LED, W48xH24mm, 4 Digit, 4-20 mA input, Loop Powered

Loop powered type: Power from measured input
Measurement input: DC4-20mA
Max. display range: -1999 to 9999
High/low-limit display scale function
Decimal point change function
High/low-limit input correction function
Display Max./Min. value monitoring function
Changeable delay time of monitoring Max./Min. value
Display cycle change function
- (Selectable 0.5 sec/1 sec/2 sec/3 sec/4 sec/5 sec)
Error display function

View Product Details

Your Price: $81.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Autonics M4NS-NA - Digital Scaling Meter

Loop powered type: Power from measured input
Measurement input: DC4-20mA
Max. display range: -1999 to 9999
High/low-limit display scale function
Decimal point change function

Digital scaling meter M4NS/M4YS series adopts loop powered power supply type which providing power supply from measuring input so that it can run inner circuit without additional power source. Various functions including -1999 to 9999 max display range, free scaling function and monitoring display value and peak value make the series more user convenient ever.

General Specifications
Model		M4NS-NA	M4YS-NA
Power supply		Loop powered type
Display method		7-segment LED display (red)
Character height		10mm	14mm
Display accuracy ※1		F.S. 0.3% rdg ±1-digit
Display cycle		0.5 sec/1 sec/2 sec/3 sec/4 sec/5 sec
Resolution		12,000 resolution
Max. display range		-1999 to 9999
Setting type		Setting type with the front keys
Measuring input range ※2		DC4-20mA
Self-diagnosis function		Error display function
Insulation resistance		Over 100MΩ (at 500VDC megger)
Dielectric strength		2,000VAC 50/60Hz for 1 min
Vibration	Mechanical	0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 1 hour
	Malfunction	0.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 10 min
Shock	Mechanical	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
	Malfunction	100m/s² (approx. 10G) in each X, Y, Z direction for 3 times
Einvironment	Ambient temperature	-10 to 50 °C , storage: -25 to 60 °C
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Unit weight		Approx. 44g	Approx. 110g
※ 1: Ambient temperature (25 °C ±5 °C ): F.S. 0.3% rdg of ±1-digit (-10 to 50 °C : F.S. 0.4% rdg ±1-digit) ※ 2: Impedance between input lines: Max. 600Ω (based on 24VDC) Please be aware that activating input power is based on 24VDC, and the recommended impedance also will be lowered if the activating power is lower. ※Environment resistance is rated at no freezing or condensation.
