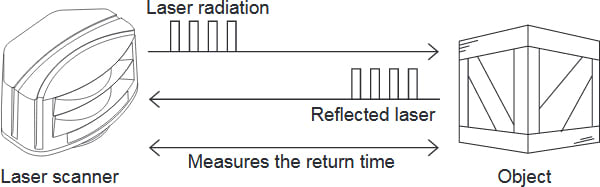

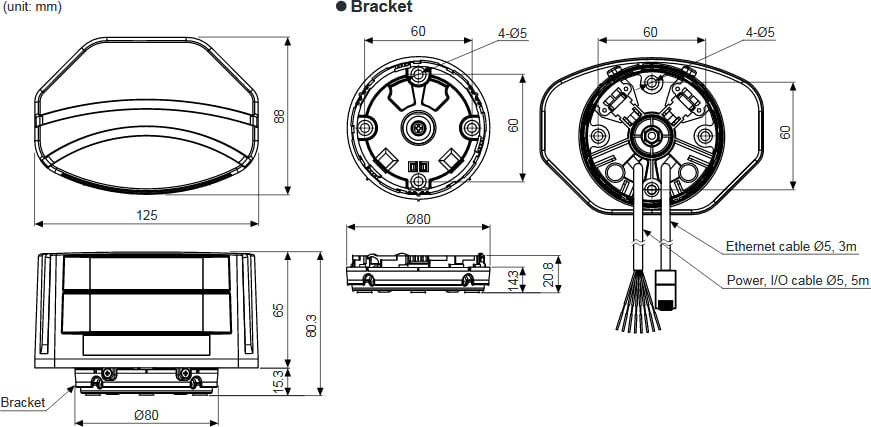

| General Specifications |
| Power supply |
24VDC |
| Allowable voltage range |
80 to 120% of rated voltage |
| Emitting property Laser class |
CLASS 1 |
| Emitting property Wavelength band |
905nm |
| Emitting property Max. pulse output power |
75W |
| Angular resolution |
0.4° |
| Aperture angle |
90° |
| Object reflectivity |
Min. 2% |
| Scanning mode |
Motion and presence |
| Monitoring zone |
0.3×0.3m to 5.6×5.6m (object reflectivity: at approx. 10%) |
| Min. size of the scanning target |
ㆍAt detection distance of 3m: approx. W2.1×H2.1×L2.1cm
ㆍAt detection distance of 5m: approx. W3.5×H3.5×L3.5cm
ㆍObject reflectivity: 90% (at Kodak Gray card R-27 |
| Power consumption |
Max. 8W |
| Response time |
Typ. 20 to 80ms+monitoring time |
| Input |
Photocoupler input: 1 (output test mode)
ㆍ[H]: min. 8VDC (max. 30VDC ), [L]: max. 3VDC
ㆍ[H] operates as output test mode and outputs obstacle detection output and error status output |
| Output |
PhotoMOS relay output: 2 (obstacle detection output, error status output)
ㆍGalvanic isolation, non-polarity
ㆍ30VDC / 24VAC, max. DC80mA (resistive load)
ㆍOutput resistance: 30Ω
ㆍSwitching time: t on=5ms, t off=5ms |
| Installation Laser scanner angle |
-45 , 0 , 45° |
| Installation Bracket rotation angle |
-5 to 5° |
| Installation Bracket tilt angle |
-3 to 3° |
| Front contamination |
Normal operation with max. 30% contamination of one material |
| Communication interface |
Ethernet |
| Life expectancy |
Max. 6.8 years (60,000 hours) |
| Insulation resistance |
Over 5MΩ (at 500VDC megger) |
| Dielectric strength |
500VAC 50/60Hz for 1 minute |
| Vibration |
Max. 2G (18.7m/s²) |
| Shock |
30G/18ms |
| Environment Ambient illumination |
Sunlight: max. 100,000lx |
| Environment Ambient temperature |
-30 to 60°C |
| Environment Ambient humidity |
0 to 95%RH, storage: 0 to 95%RH |
| Material |
Polycarbonate |
| Protection structure |
IP67(IEC standard) |
| Cable Power, I/O |
Ø5mm, 8-wire, 5m (AWG 26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1mm) |
| Cable Ethernet |
Ø5mm, 4-wire, 3m, shielded cable (AWG 26, core diameter: 0.16mm, number of cores: 7, insulator out diameter: Ø1mm) |
| Accessories |
Bracket, M2.6×L6 Tapping screw (for fixing bracket rotation angle): 2, 3mm allen wrench |
| Component PC program |
atLidar (laser scanner program) |
| Korean Railway Standards |
KRS SG 0068 |
| Approval |
CE |
| Weight |
Approx. 0.96kg(approx 0.58kg) |
