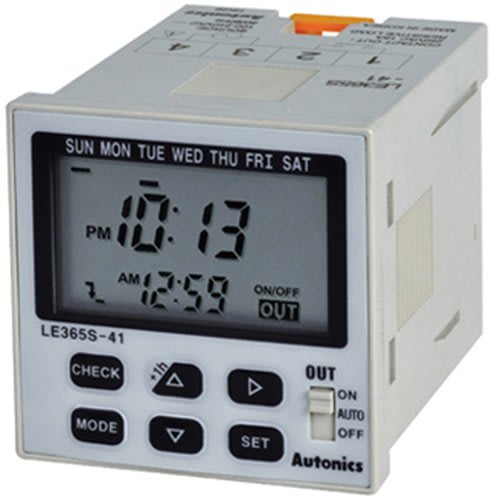

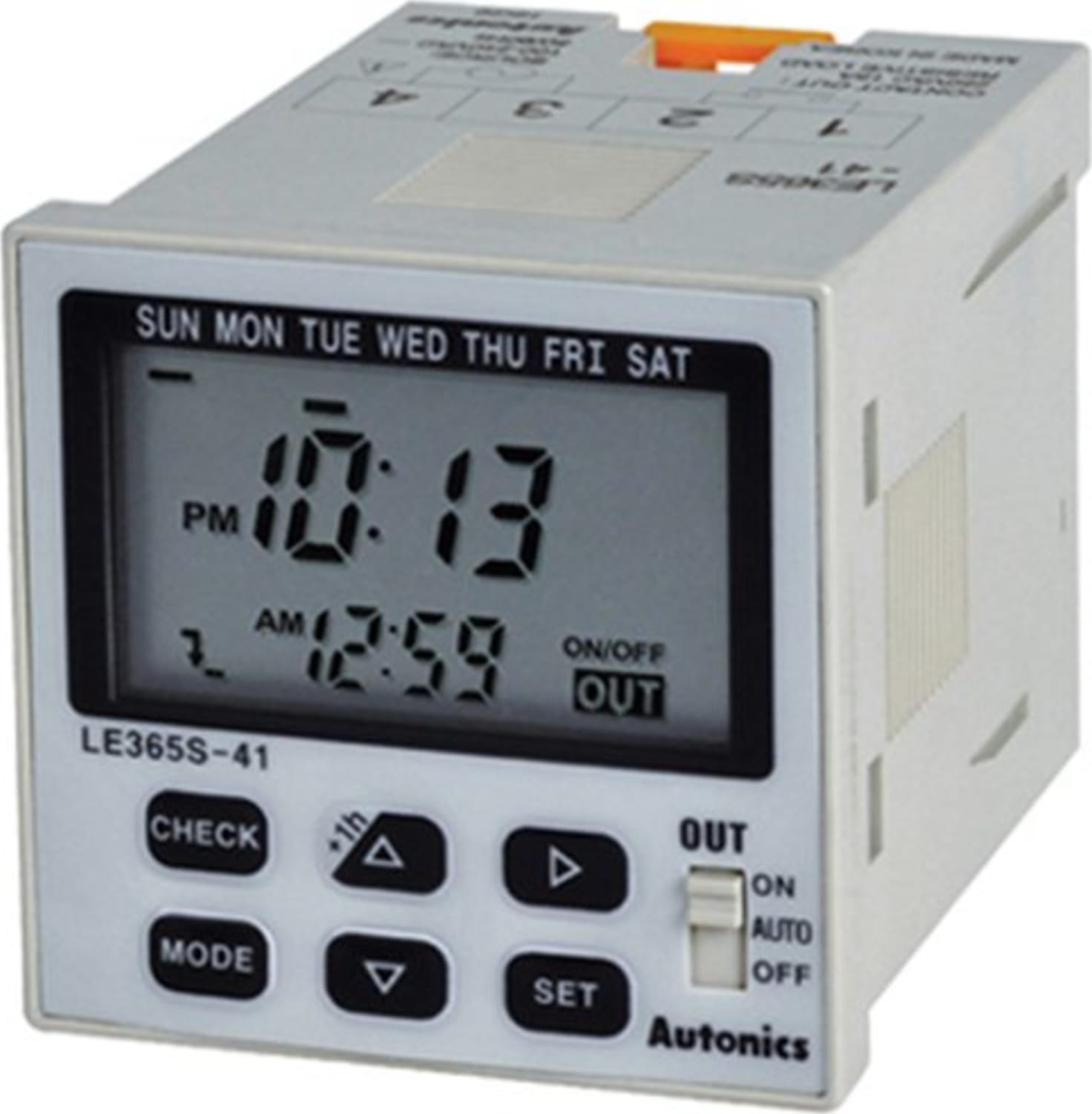

Autonics LE365S-41 - Weekly/Yearly Timer, Small Size

Name: Autonics LE365S-41 - Weekly/Yearly Timer, Small Size
Brand: Autonics
SKU: AutonicsLE365S-41
Price: 138.00 USD
Availability: InStock

0 reviews | Model: Autonics LE365S-41

Compare

Timer, Yearly, 1/16 DIN, LCD, 3 operation mode, Week 48 Steps / Year 24 steps, 1 SPST Outputs, 100-240 VAC

Timer, Yearly, 1/16 DIN, LCD, 3 operation mode, Week 48 Steps / Year 24 steps, 1 SPST Outputs, 100-240 VAC
Easy to check and change the program setting
Customizable weekly or yearly unit time setting and control by user
Includes daylight saving time function
1 independent control output. (Relay)
Flush and surface, DIN rail mounting are in one unit

View Product Details

List Price: $138.00

In Stock:

View Payment Options

Recommended for you

Autonics LE365S-41 - Weekly/Yearly Timer, Small Size

Easy to check and change the program setting
Customizable weekly or yearly unit time setting and control by user
Includes daylight saving time function
1 independent control output. (Relay)
Flush and surface, DIN rail mounting are in one unit

Small size, the Autonics LE365S-41 timer is able to set and control weekly/yearly time. It is easy to set and check the detail of program setting value, and built-in 1 independent control output (relay). Also, various mounting methods are supported including flush, surface and DIN RAIL in order to increase user’s convenience.

Autonics LE365S-41 Specifications
Model		LE365S-41
Power supply		100-240VAC 50/60Hz
Allowable voltage range		90 to 110% of rated voltage
Power consumption		Max. 2.4VA (100-240VAC 50/60Hz)
Timing program		48 steps for weekly, 24 steps for yearly
Operation mode		ON/OFF mode, cycle mode, pulse mode
Mounting		Panel flush, surface, DIN rail
Time deviation		±15sec/month (25°C) (±4sec/week)
Temperature error		±0.01% ±0.05sec.
Memory protection		Over 5 years (at 25°C)
Control Output	Contact type	SPST (Single Pole Single Throw)
	Contact capacity	250VAC 15A resistive load
	Output number	Independent 1 output (1a)
Relay life cycle	Mechanical	Min. 5,000,000 operations (Switching capacity 30 times/minute)
	Electrical	50,000 operations
Insulation resistance		Min. 100MΩ (at 500VDC megger)
Dielectric strength		2000VAC 50/60Hz for 1minute
Noise strength		±2kV the square wave noise (pulse width: 1μs) by the noise simulator
Environment	Ambient temperature	-10 to 55°C, storage: -25 to 65°C
	Ambient humidity	35 to 85%RH, storage: 35 to 85%RH
Unit weight		Approx. 110g
*Environment resistance is rated at no freezing or condensation.

Tech Specs

Test Equipment General Attributes
Country of Origin	Korea
