KRN50 Series 50mm Compact Hybrid Recorder & Data Logger in One

50mm Compact Hybrid Recorder & Data Logger in One Autonics is unveiling a new 50mm hybrid recorder, KRN50 Series. KRN50 Series is a 50mm compact hybrid recorder that displays measured values on LCD matrix panel after measuring a wide variety of industrial inputs including temperature and analog signals. This device records data by printing out on paper from direct thermal printer and when paper runs out, data logger function will automatically backup measured values real-time.

Integrated device management program(DAQMaster)

• DAQMaster is the integrated device management program to set parameters and manage monitoring data.
• Visit our website (www.autonics.com) to download user manual and integrated device management program.

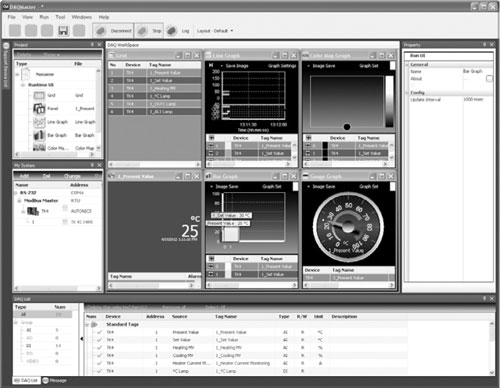

DAQMaster screen

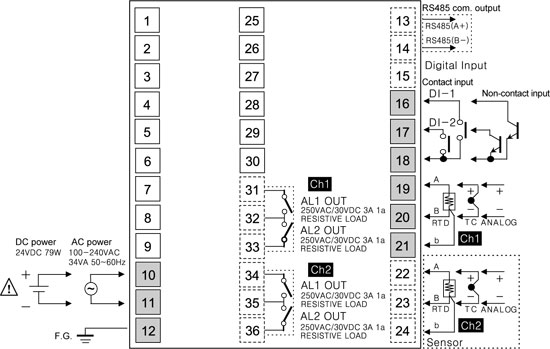

Connections

※ Shaded terminals are for the standard model. (power terminal, CH1 input terminal, DI input terminal)

※ Dot line terminals are for the option model. (CH2 input terminal, alarm output terminal, communication output terminal)

※ The DC power model does not have F.G.

※ When using 2-wire RTD, short B and b terminals.

※ For current input, connect external 50ΩB class(0.1%) high-accuracy resistor.

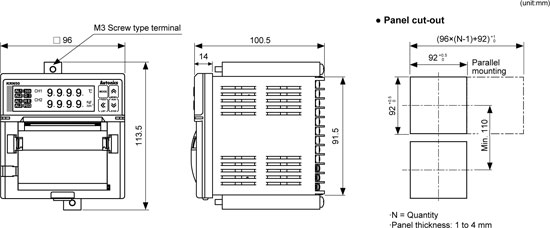

Dimensions

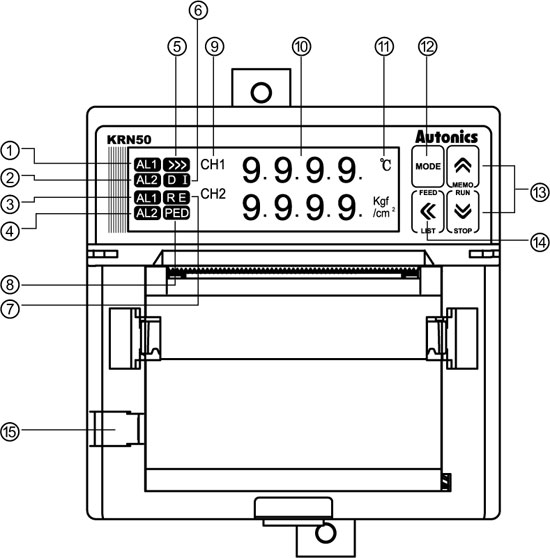

Part descriptions

① CH 1 alarm(AL1) output indicator: Turns ON when AL1 of input channel 1 operates.

② CH 1 alarm(AL2) output indicator: Turns ON when AL2 of input channel 1 operates.

③ CH 2 alarm(AL1) output indicator: Turns ON when AL1 of input channel 2 operates.

④ CH 2 alarm(AL2) output indicator: Turns ON when AL2 of input channel 2 operates.

⑤ Recording start () / Recording stop () indicator: turns ON when start recording (RUN). turns ON when stopping recording (STOP).

⑥ Digital input indicator: Turns ON when setting digital input.

⑦ Recording reservation(RE) indicator: RE turns ON when recording reservation operates.

⑧ Recording paper status( )indicator: turns ON if running out of recording paper during recording (RUN).

⑨ Channel(CH) display part: Displays input channel of currently displayed PV on the PV display part.

⑩ PV display part: In RUN mode, displays PV of the current channel. In setting mode, displays parameters and mode setting values.

⑪ Unit display part: Unit of relevant channel is indicated.

⑫ key: Used to enter setting mode and changing SV mode.

⑬ , Used to move parameters or increase/decrease digits.
                 - key: Digital memo key, key: Recording Run/Stop key

⑭ key: Used to move parameters to upper group or move digits
                - Paper feeding key (STOP), printing parameter setting information key (RUN)

⑮ PC loader port: It is a PC loader port for serial communication to set or monitor parameters by PC.
                           Used to connect SCM-US (USB to Serial converter, sold separately).
