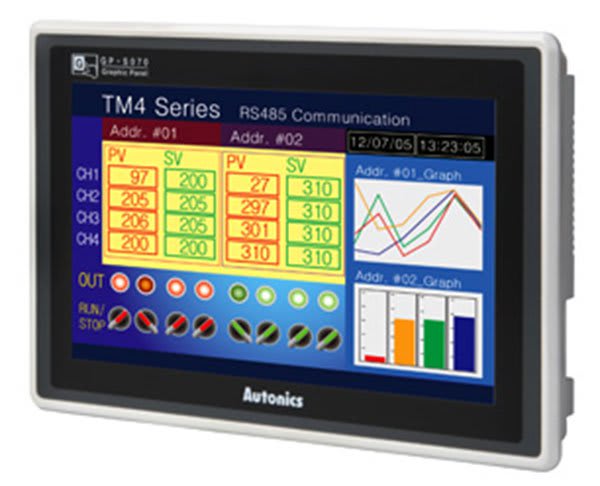

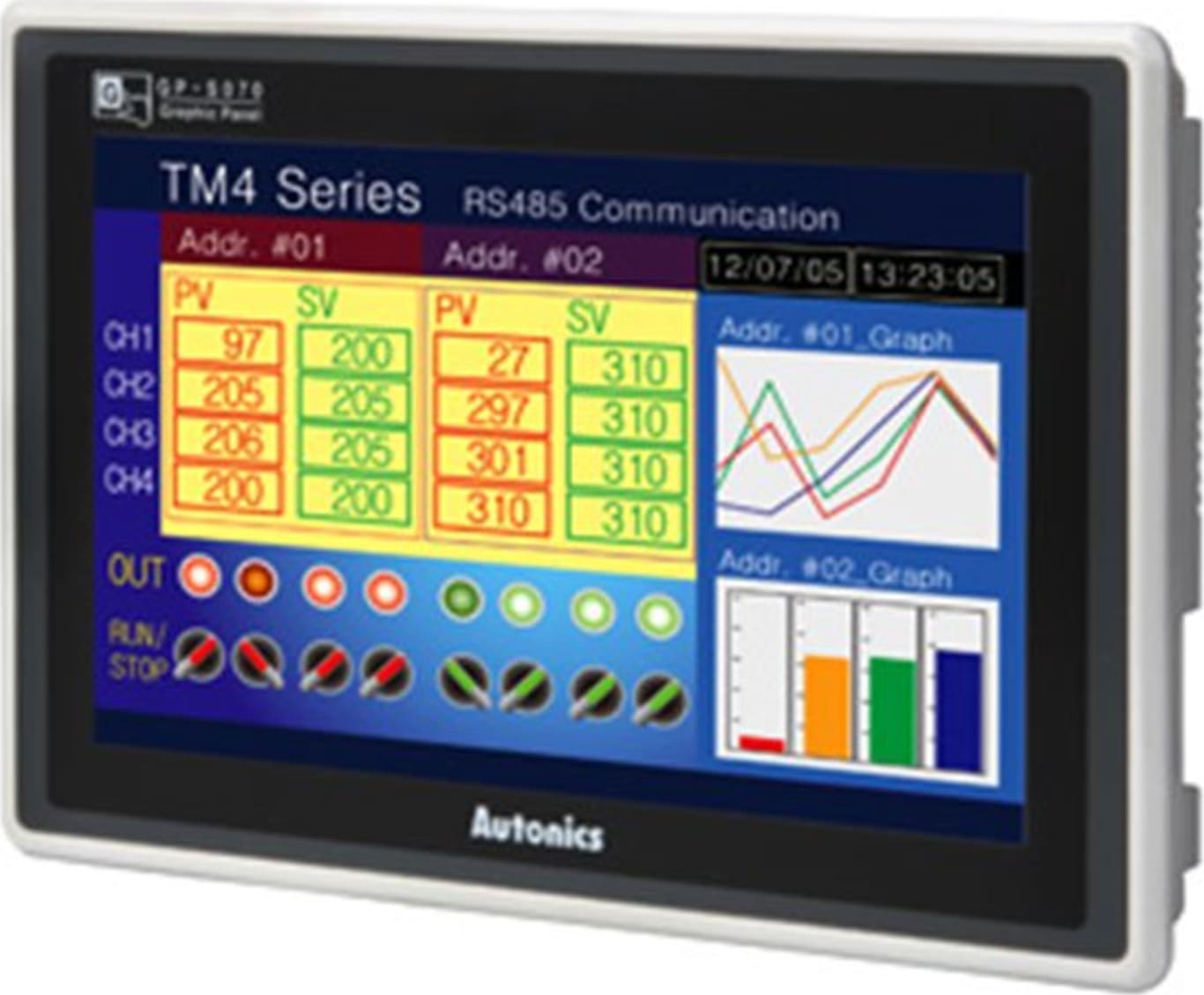

| GP-S070-T9D7 |
Graphic Panel |
S Series |
7 inch |
TFT Color LCD |
16,777,216 Color |
24 VDC |
RS232C, RS422, USB HOST, USBM
DEVICE, Ethernet |
| General Specification |
| Power supply |
24VDC |
| Allowable voltage range |
90 to 110% of power supply |
| Power consumption |
Max. 7.2W |
| Display Performance |
LCD type |
7 inch TFT Color LCD |
| Resolution |
800×480 dots |
| Display area |
152.4mm×91.44mm |
| Color |
16,777,216 color |
| LCD view angle |
Within each 60°/ 45°/ 60°/ 60°of top/bottom/left/right |
| Backlight |
White LED |
| Brightness |
Adjustable by software |
Graphic Drawing
Performance |
Language *1 |
English, Korean |
| Text |
• Vector font • 6×8, 8×8 ASCII character, high definition numbers
• 8 ×16 ASCII characters, 16×16 character by each country
(1 to 8 times bigger for width, 0.5 to 5 times bigger for height) |
| Graphic drawing memory |
16MB |
| Number of user screen |
500 pages |
| Touch switch |
Analog touch |
| Serial interface |
Asynchronous method: Each port of RS232C, RS422 |
| USB interface |
Each of USB HOST, USB Device (Version 1.1) |
| Ethernet interface |
IEEE802.3 (U), 10/100Base-T |
| Real-time controller |
RTC embedded |
| Battery life cycle |
Approx. 3 years at 25 °C |
| Insulated resistance |
Min. 100MΩ (at 500VDC megger) |
| Ground |
3rd grounding (max. 100Ω) |
| Noise resistance |
± 0.5kV the square wave noise (pulse width: 1μs ) by the noise simulator |
| Withstanding voltage |
500VAC 50/60Hz for a minute |
| Vibration |
Mechnical |
0.75mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 1 hour |
| Malfunction |
0.5mm amplitude at frequency of 10 to 55Hz (for 1 min.) in each X, Y , Z direction for 10 min. |
| Shock |
Mechanical |
300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Malfunction |
100m/s² (approx. 10G) in each X, Y, Z direction for 3 times |
| Environment |
Ambient temperature |
0 to 50 °C , storage: -20 to 60 °C |
| Ambient humidity |
35 to 85% RH, storage: 35 to 85%RH |
| Protection structure |
IP65F for front panel |
| Accessory |
Fixing bracket: 4EA, Battery (included) |
| Unit weight |
Approx. 520g |
*1: Language could be added in the future.
*Environment resistance is rated at no freezing or condensation. |
| Functional Description |
| Figure display |
Line, rectangle, circle, text, bitmap |
| Tags |
Numeral display |
Displays the designated device as numerical value. (decimal, hexadecimal, octal, binary |
| ASCII display |
Displays the designated device value as ASCII character. |
| Time display |
Displays current time or date. |
| Alarm history |
Registers alarm history. |
| Alarm list |
Displays generated (not backed up) alarm. |
| Comment display |
Displays the designated comment as device status or value. |
| Lamp |
Displays lamp as device status. |
| Part display |
Displays the designated parts as device status and value. |
| Line graph |
Displays several device values with a graph of broken line. |
| Trend graph |
Displays change of device value for time with a graph of broken line. |
| Bar graph |
Displays a device value with a bar graph. |
| Statistic graph |
Displays a ratio of several device values with pie graph. |
| Panel meter |
Displays a device value as panel meter. |
| Touch key |
Screen is switched, word/bit device values are set when it touched. |
| Numeral input |
Configures user input value in device. |
| ASCII input |
Configures user input ASCII code value in device. |
| System information function |
Monitors/Controls GP operation from PLC. |
| Recipe function |
Reads/Writes several PLC device collectively. |
| Security function |
Only acceptable user can observe/operate important data. |
| Barcode read function |
Connects barcode reader, read barcode. |
| Floating alarm function |
Warning message is floated when alarm is generated. |
| Time operation |
Specific bit device is ON/OFF for designated day and time. |
| Overlap window |
Available to form dynamically overlapping another base screen on the base one. |
| Observe status function |
Changes PLC device status/value of PLC when trigger is generated. |
